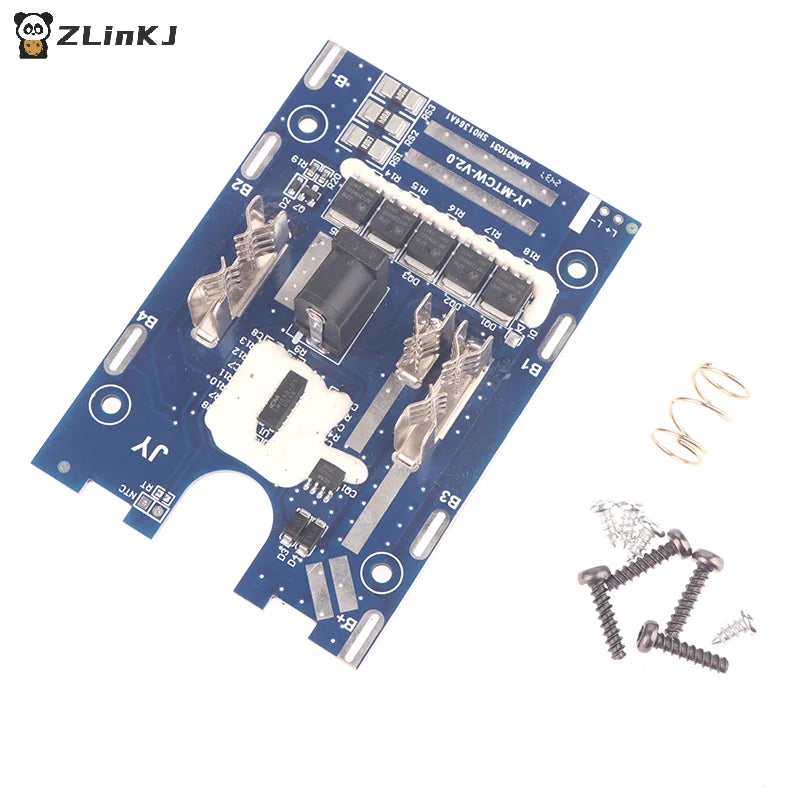

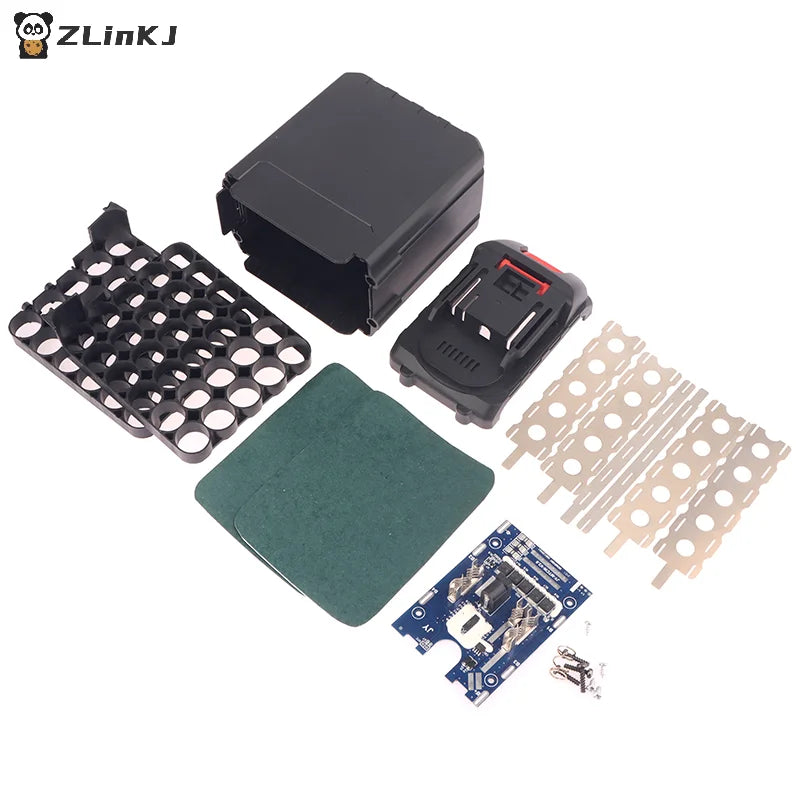

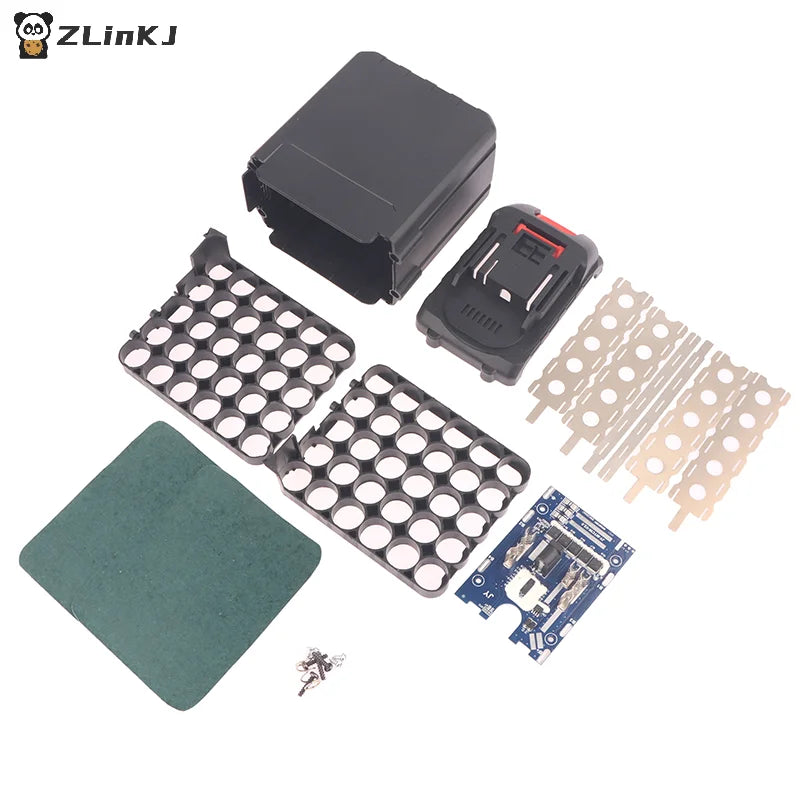

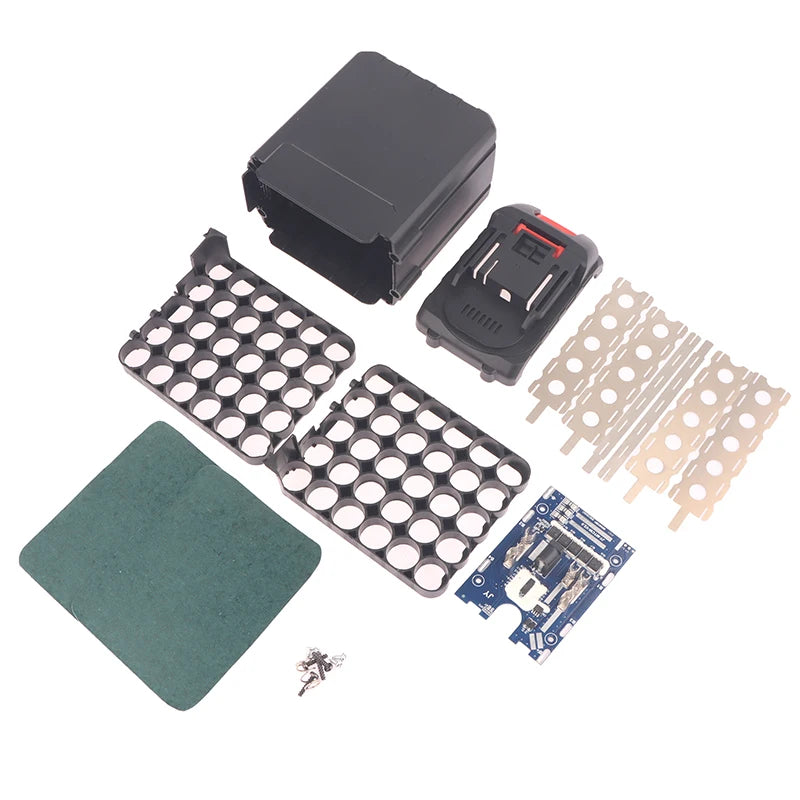

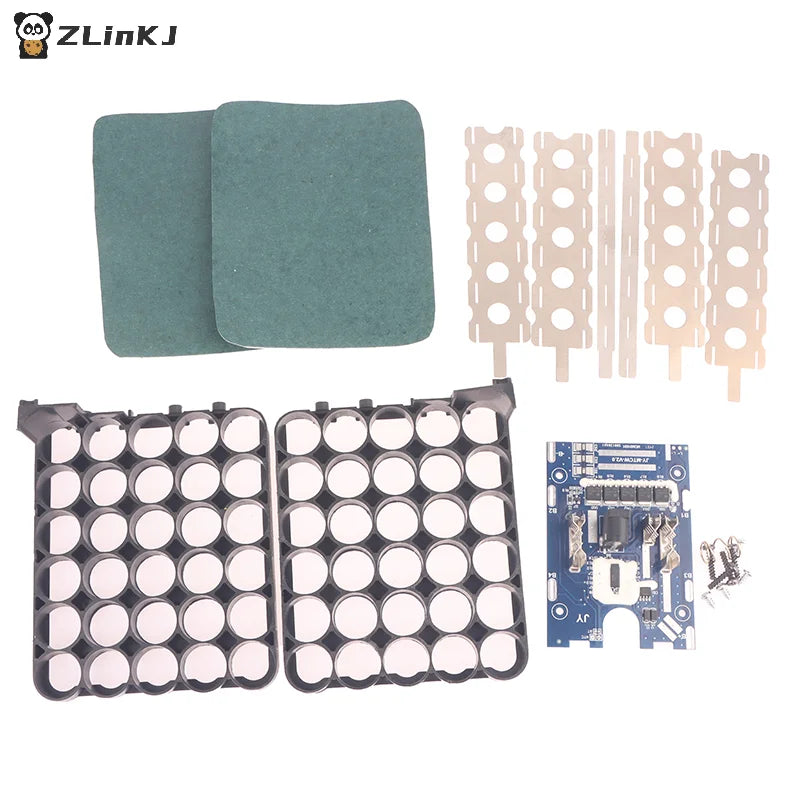

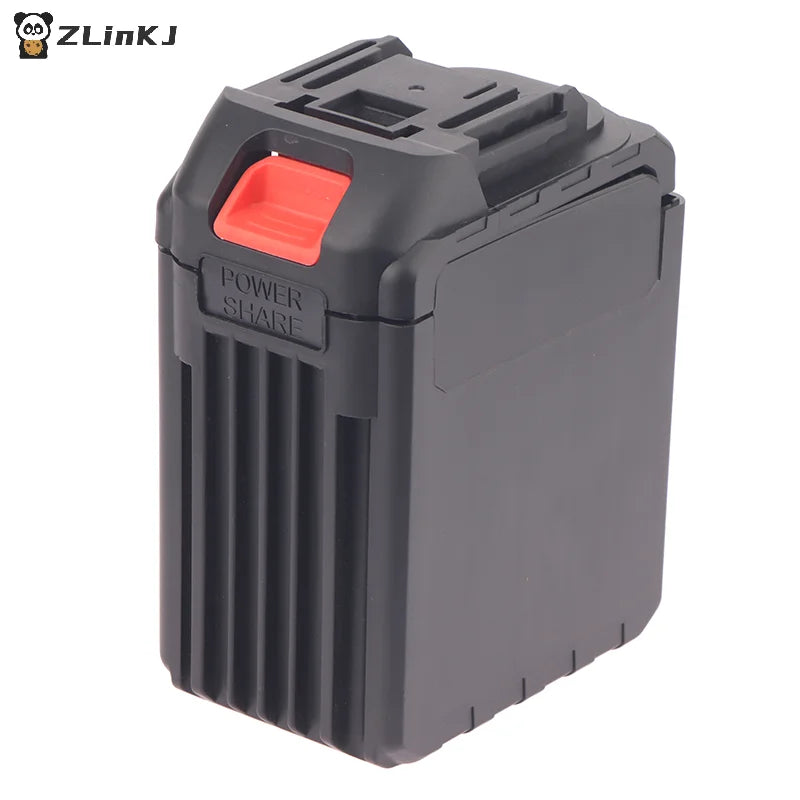

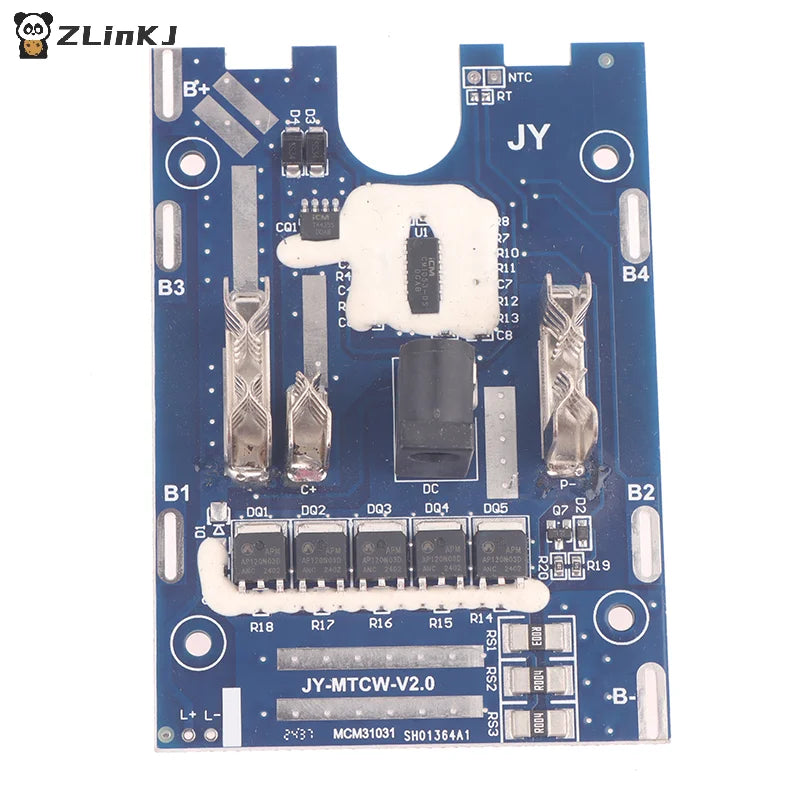

30 Cell 18650 Lithium Battery Shell PCB Charging Protection Circuit

Discover the 30 Cell 18650 Lithium Battery Shell PCB Charging Protection Circuit — a standout decor pick featuring waterproof, adjustable design for dependable, everyday performance.

Specifications

Brand Name: JETTING

DIY Supplies: Woodworking

This product is component without battery core .

It is used to repair and assemble batteries pack,

only for people who are familiar with battery performance and have practical experience in battery assembly.

Functional characteristics:

1.High temperature protection for charging and discharging, low temperature charging protection.

2. Temperature control parameters are externally adjustable.

3.Overcharge detection protection.

4. Overdischarge detection protection.

5.Three stage overcurrent protection.

6.Externally adjustable during the first and second stages of overcurrent delay.

7.Battery disconnection protection function.

8.NTC resistor disconnection protection function.

9.Short circuit protection function.

Notes:

After combining the battery pack and this protective board, if there is no voltage output during the initial power on, please activate it with a dedicated charger. If there are still any abnormalities, please contact us.

Precautions for use and assembly:

1.When welding battery leads/sampling points, be careful not to connect them incorrectly or in reverse. If a wrong connection is found, the circuit board may have been damaged and needs to be retested before it can be used again.

2.During assembly, the BMS should not directly contact the surface of the battery cell to avoid damaging it. The assembly should be firm and reliable.

3.Electronic devices used for welding must be reliably grounded, and attention should be paid to electrostatic protection to prevent damage to the protective board caused by electric leakage and static electricity

4.Be careful not to touch the components on the circuit board with lead wires, soldering iron, etc. during use, otherwise it may burn out the circuit board,

5.During use, attention should be paid to anti-static, moisture-proof, and waterproof measures.

Specifications:

Material: Plastic + Metal

Size:14.8*7.3*11cm

Color: Black

Package Includes: 1Set

Options

• Color: 1Set

Frequently Asked Questions

Q: What is the 30 Cell 18650 Lithium Battery Shell PCB Charging Protection?

A: The 30 Cell 18650 Lithium Battery Shell PCB Charging Protection is a quality decor pick. It is used to repair and assemble batteries pack, only for people who are familiar with battery performance and have practical experience in battery assembly.

Q: What is the 30 Cell 18650 Lithium Battery Shell PCB Charging Protection made of?

A: The 30 Cell 18650 Lithium Battery Shell PCB Charging Protection is made from Plastic + Metal Size, measuring 14.8.

Q: Why choose the 30 Cell 18650 Lithium Battery Shell PCB Charging Protection?

A: The 30 Cell 18650 Lithium Battery Shell PCB Charging Protection stands out in our decor range — Functional characteristics: 1.High temperature protection for charging and discharging, low temperature charging protection.
