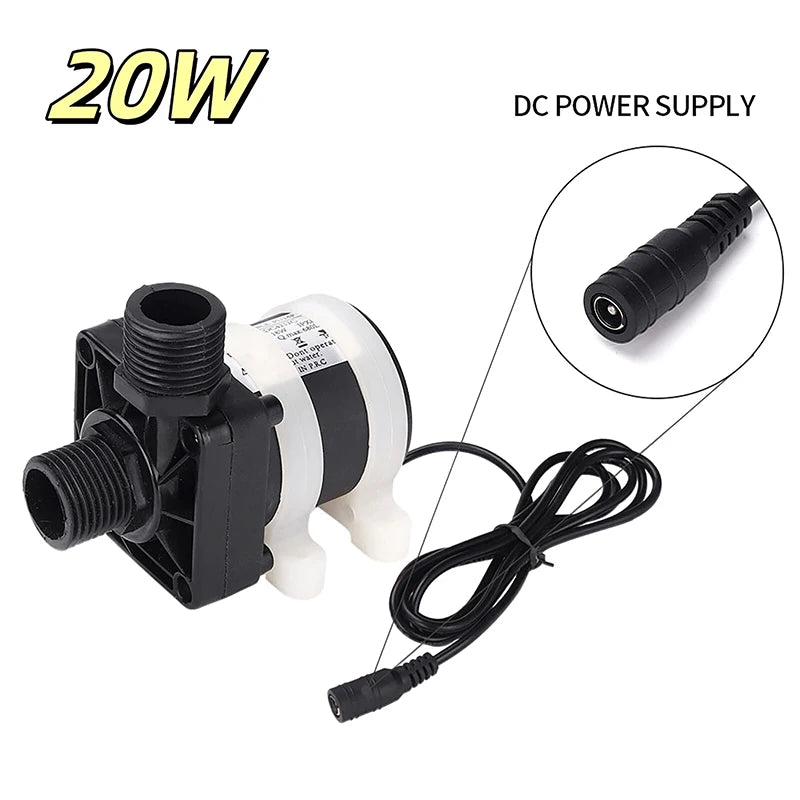

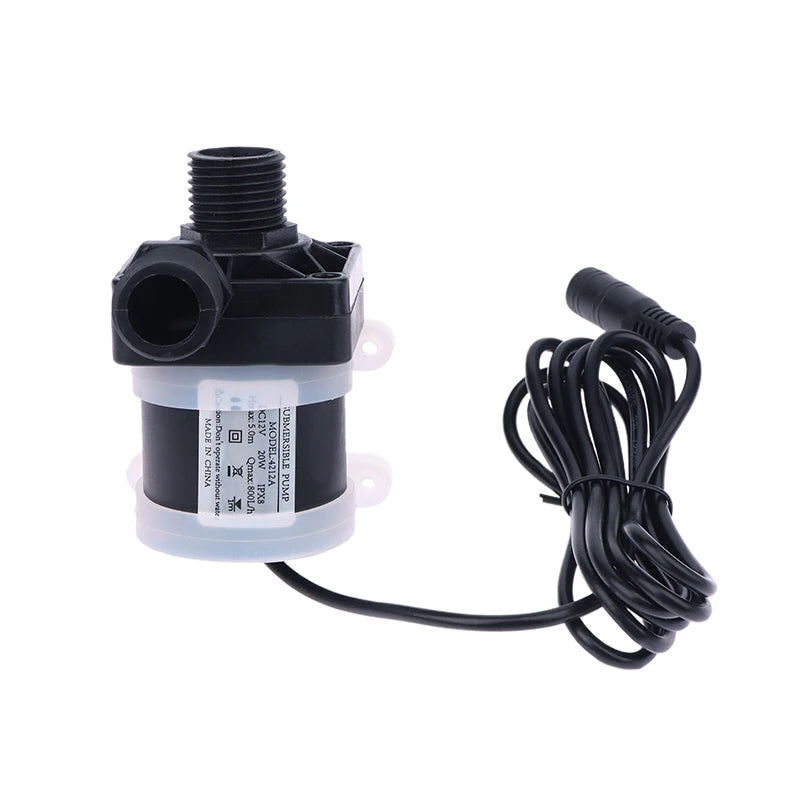

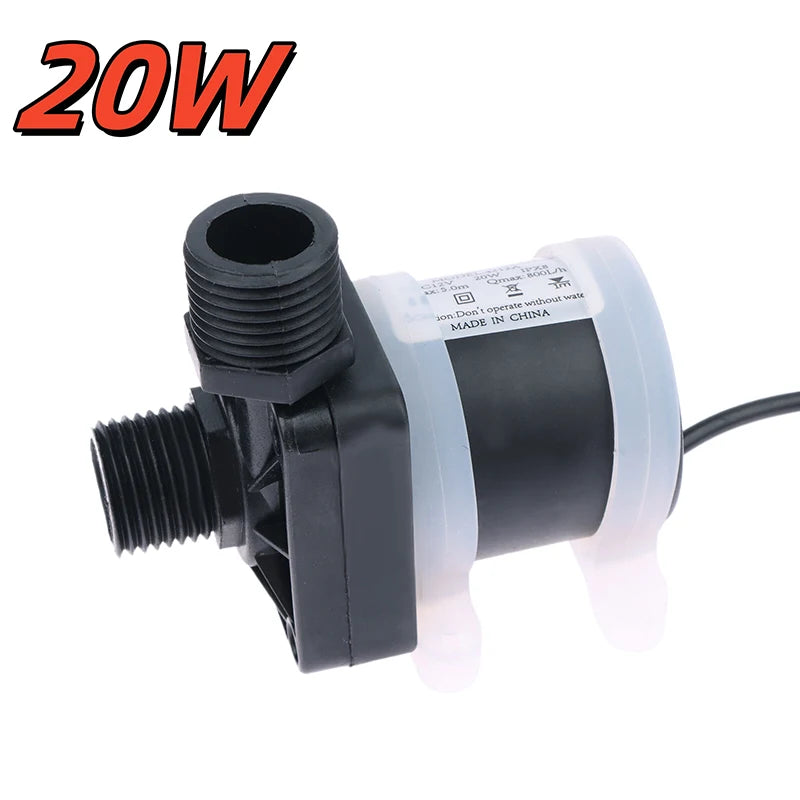

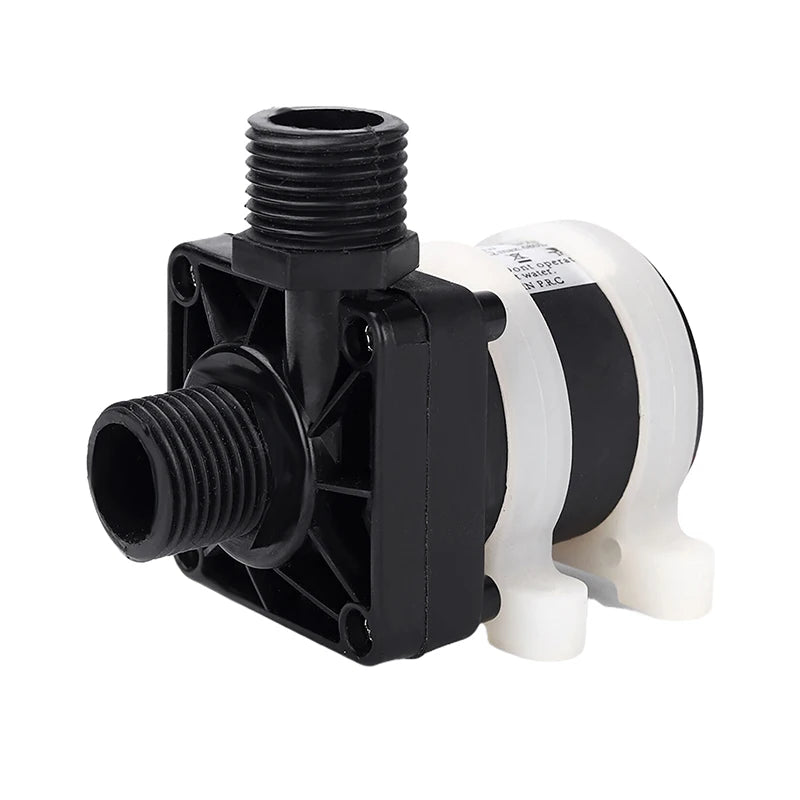

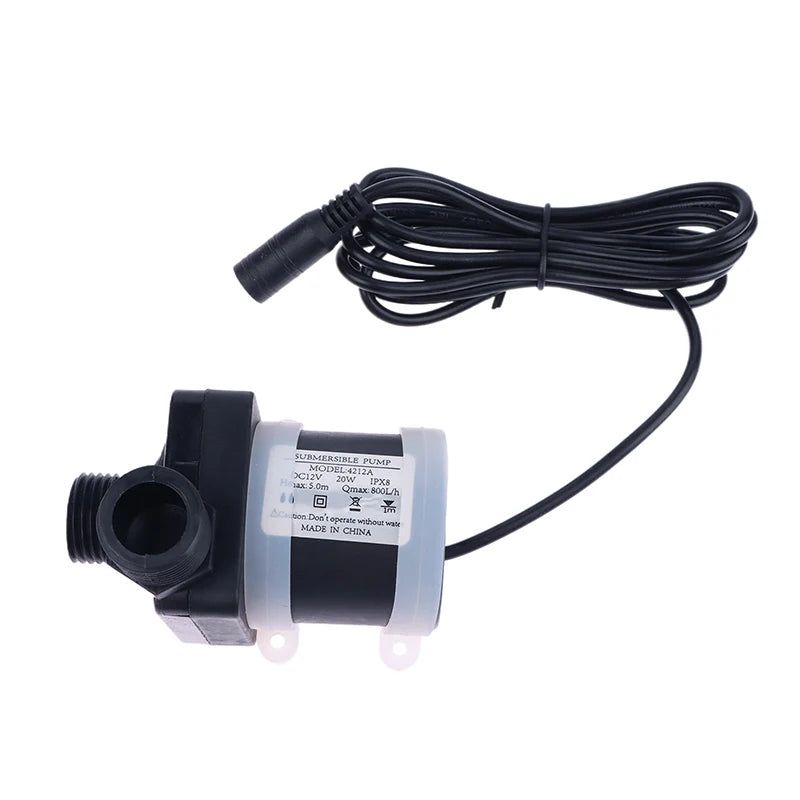

ZOHMYIY 12V/24V DC Brushless Water Pump – Solar-Compatible, IP68 Waterproof

Upgrade your water system with the ZOHMYIY DC Brushless Water Pump — a compact, whisper-quiet centrifugal pump engineered for efficiency and longevity. Compatible with 12V and 24V DC power sources (including solar panels and batteries), this versatile pump is ideal for boosting water pressure in showers, water heaters, radiant floor heating systems, and more. With an IP68 waterproof rating, a rated flow of up to 800 L/H, and an impressive lifespan of ≥30,000 hours, it's built to perform reliably over the long haul.

Key Features

Solar & DC Compatible: Operates on 12V or 24V DC power — works seamlessly with solar panels, batteries, and DC-rated transformers.
IP68 Fully Waterproof: Completely submersion-rated enclosure protects internal components for worry-free installation.
Ultra-Quiet Brushless Motor: DC brushless design delivers near-silent operation with minimal vibration — ideal for home environments.
High Flow Rate: Moves up to 800 L/H with a max head of 5 metres, making it effective for water pressure boosting applications.
Wide Temperature Range: Functions in ambient and media temperatures from -20°C to 100°C — suitable for hot water systems.
Long Service Life: Rated for ≥30,000 hours of continuous use, minimising maintenance needs.
Versatile Media Compatibility: Suitable for water, alcohol, diesel, and similar fluids (not for acidic, alkaline, or particle-laden liquids).
4-Point Threaded Ports: Standard 4-point thread connections for straightforward installation and leak-free fittings.

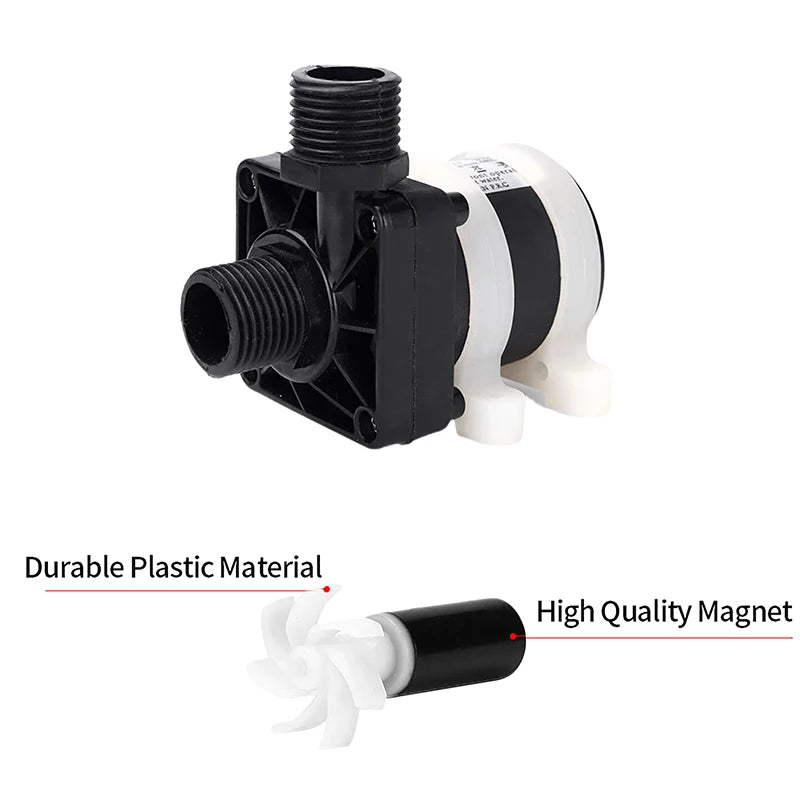

Plastic Construction: Lightweight yet durable body that resists corrosion.

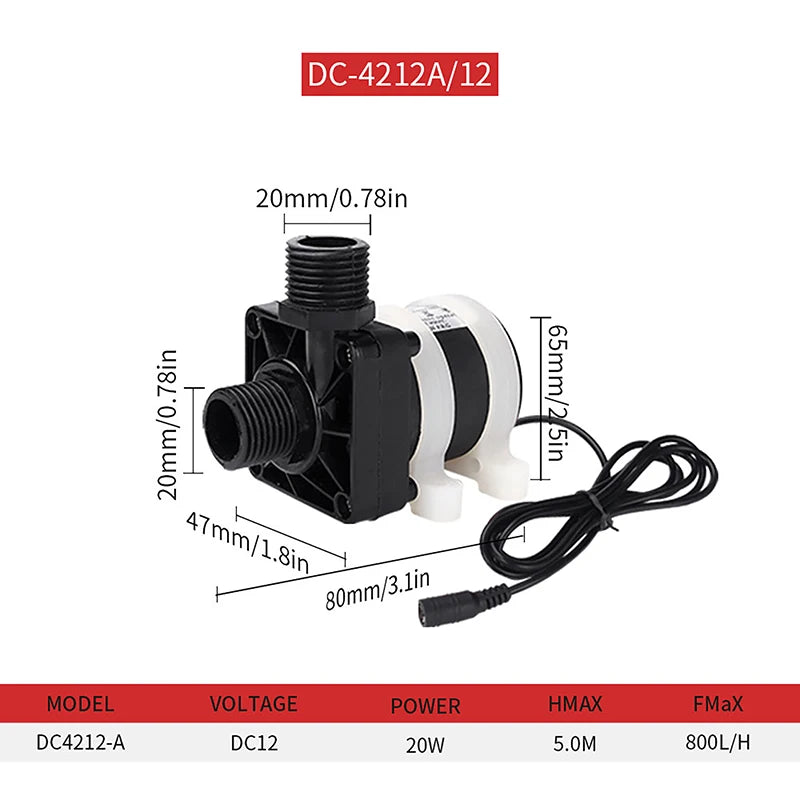

Specifications

Voltage	12V / 24V DC
Power	20W
Max Flow Rate	800 L/H
Max Water Head	5 M
Waterproof Rating	IP68
Ambient Temperature	-20°C to 100°C
Ambient Humidity	≤90% RH
Service Life	≥30,000 Hours
Material	Plastic
Thread Size	4-Point

Important Usage Notes

This pump boosts water pressure and does not include a built-in switch.
DC power only — always use a battery, DC-rated power supply, or solar panel within the specified voltage range.
This is a centrifugal pump, not a self-priming pump — do not run it without water (no dry-running).
Do not use with acidic or alkaline solutions.
Do not use with liquids containing impurities or magnetically permeable particles larger than 0.35mm. Clean the pump chamber if water quality is poor.

What's in the Box

1 × DC Brushless Water Pump

Made in Mainland China.

For guidance on safe water system installations and energy efficiency with solar-powered appliances, visit energy.gov – Solar Water Heaters.

Frequently Asked Questions

Q: Can this DC brushless water pump run on solar power?

A: Yes! The ZOHMYIY brushless water pump is compatible with 12V and 24V DC power sources, including solar panels and rechargeable batteries, making it an excellent choice for off-grid or solar-powered water systems.

Q: Is this pump self-priming?

A: No — this is a centrifugal pump and is not self-priming. It must always have water present before operation. Running the pump dry will cause damage. Ensure the pump is properly primed and submerged (or inline with flow) before use.

Q: What is the IP68 waterproof rating?

A: IP68 is the highest standard for waterproofing, meaning the pump is fully protected against dust and can withstand continuous immersion in water. This makes it suitable for fully submerged or exposed installations.

Q: Can this pump handle hot water for radiant floor heating?

A: Yes. The pump supports media temperatures from -20°C up to 100°C, making it suitable for use with hot water in radiant floor heating and water heater circulation systems.
