IPS Display OLED Module 80 160 65K Colorful RGB TFT LCD Board ST7735

$13.60

$13.60 $16.71

Meet the IPS Display OLED Module 80 160 65K Colorful RGB TFT LCD Board ST7735, a decor pick made to slot right into your everyday routine. Thoughtfully crafted from new ips color screen, brighter than tft lcd and sized at 0.96 inch, it's ready whenever you are. Pick from 2 color options to suit your style. Whether it's a little treat for yourself or a thoughtful gift, it's an easy yes.

In short: the IPS Display OLED Module 80 160 65K Colorful RGB TFT LCD Board ST7735 is dependable decor quality you'll reach for again and again.

Frequently Asked Questions

Q: What is the IPS Display OLED Module 80 160 65K Colorful RGB TFT LCD?

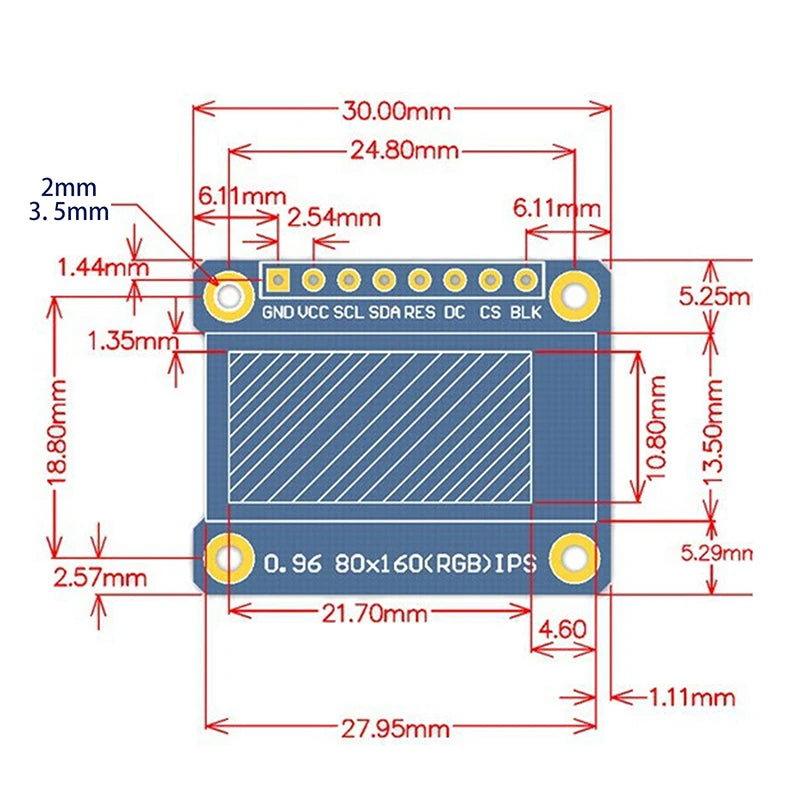

A: The IPS Display OLED Module 80 160 65K Colorful RGB TFT LCD is a quality decor pick. Compatible Brand/Model: Nintendo Compatible Nintendo Model: GameBoy Color Product Description: Size: 0.96 inch Material: New IPS color screen, brighter than TFT LCD Resolution: 80*160 display direction can be adjusted, horizontal screen vertical screen can Control chip: ST7735 Display area: 10.8*21.696(mm) Physical size: 24*30 (mm) Interface Type: SPI Interface Number of pins: 7Pin Display color: 65K full color Working temperature: -20~70 degrees Celsius Operating voltage: 3.3V Weight: 5g Pin Connect: GND (power ground) VCC (power is 3.3~5V) SCL (SPI clock line) SDA (SPI data line) RES (OLED reset, OLED needs to be reset after power on) DC (SPI data/command selection pin) BLK (LCD backlight control, default can be suspended, low level off the backlight) Packing: 1Pc
