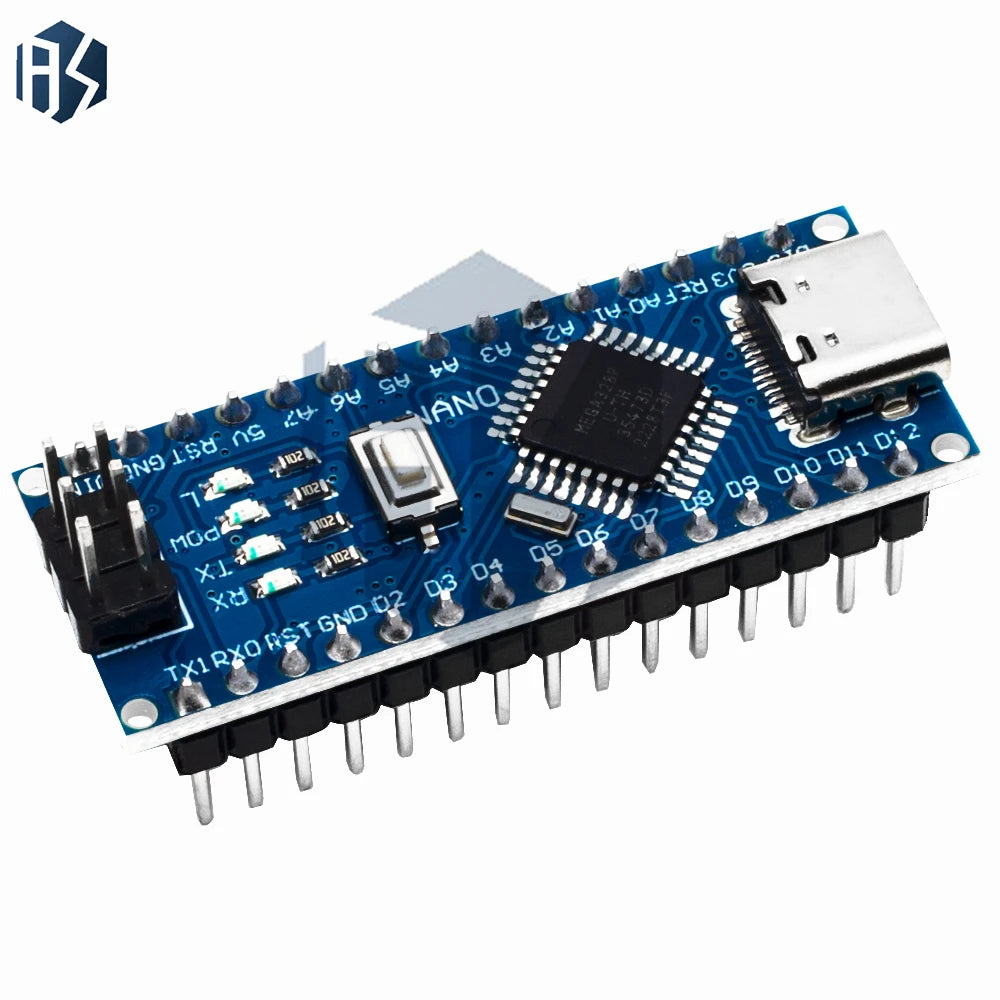

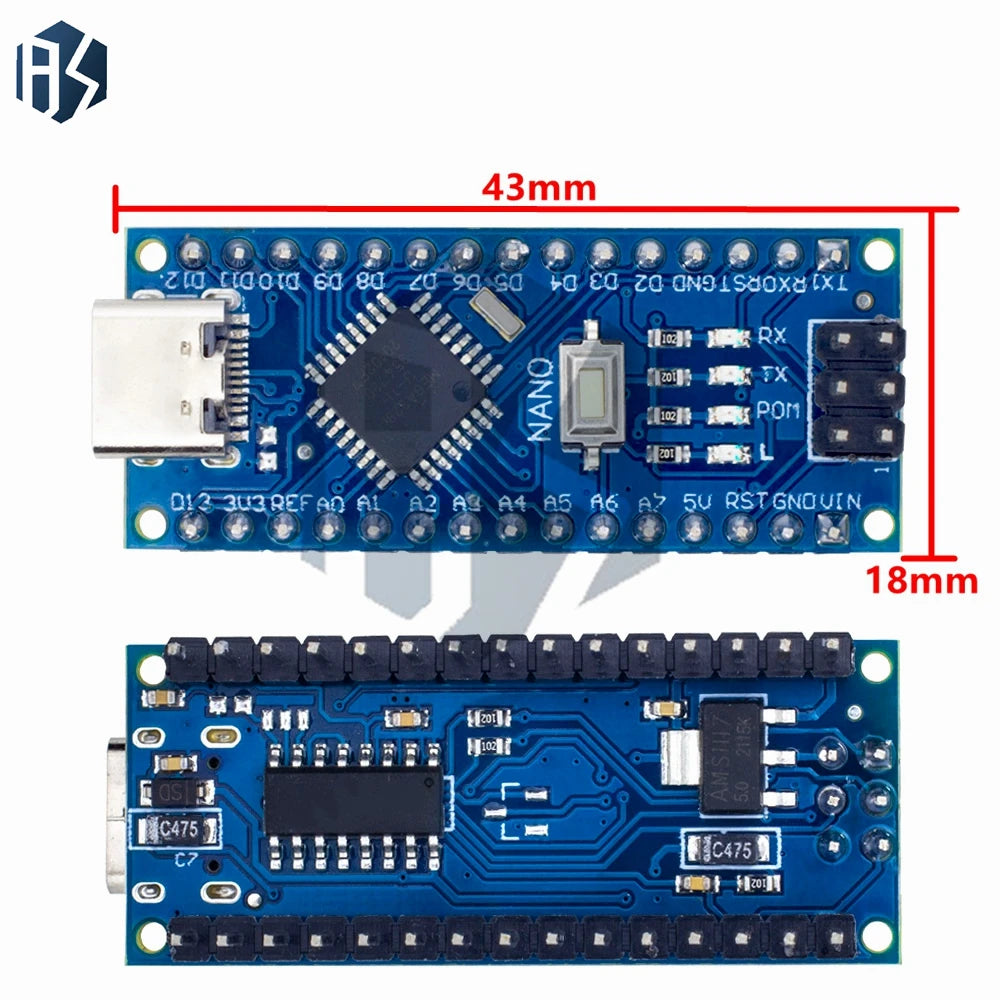

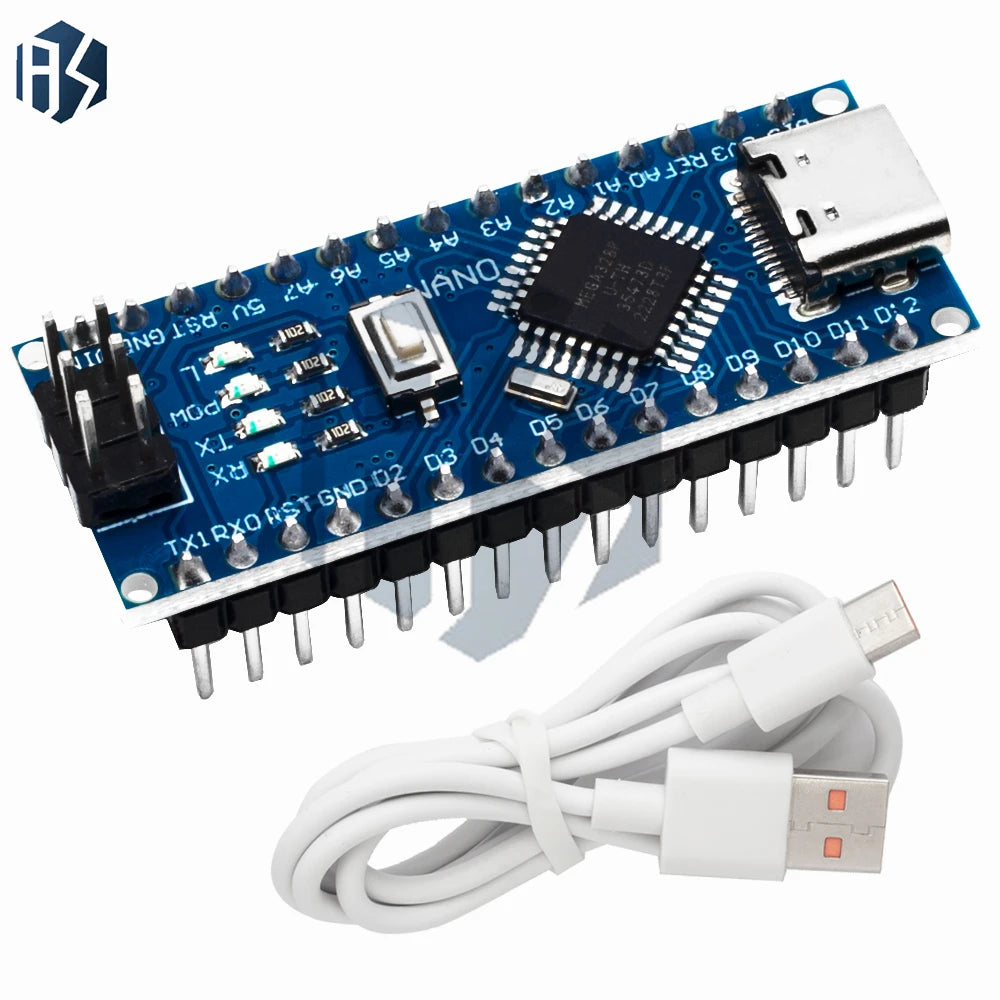

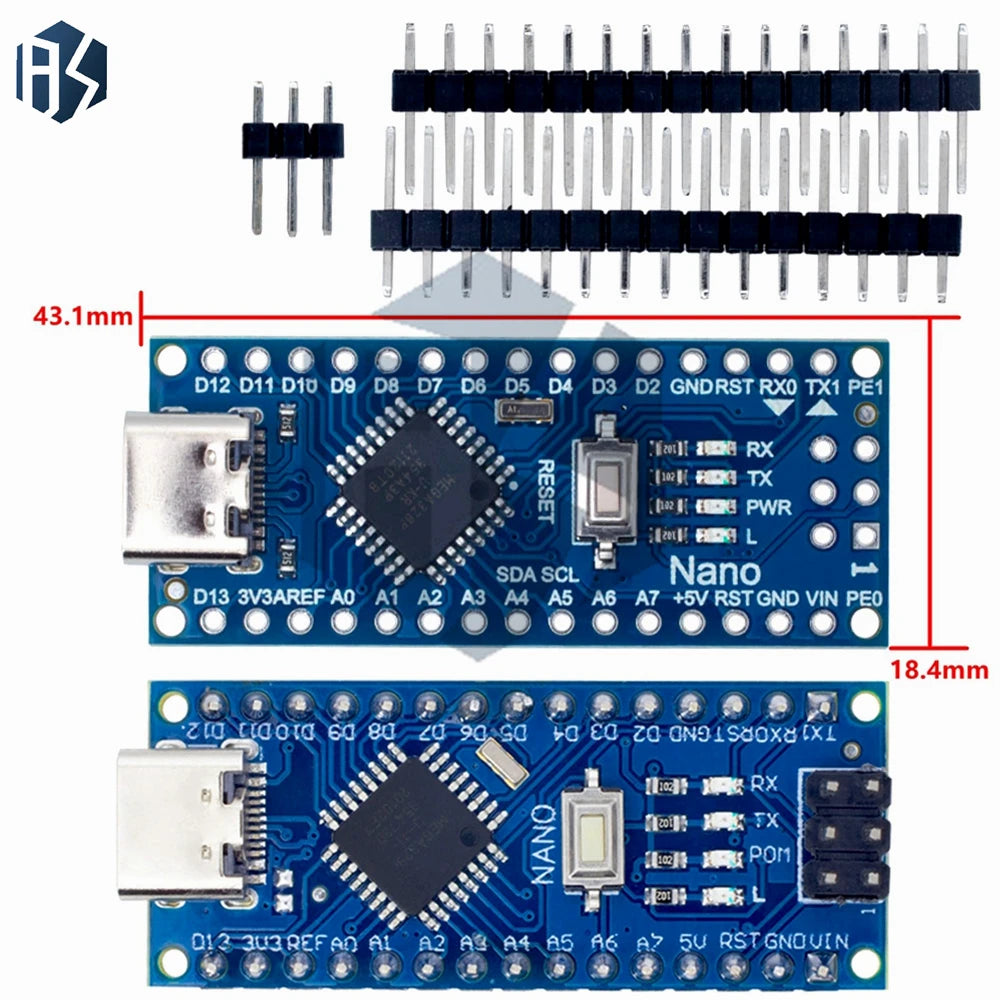

Nano 3 0 Atmega328 Weld Controller Compatible Board TYPE-C Module PCB

The Nano 3 0 Atmega328 Weld Controller Compatible Board TYPE-C Module PCB is a premium quality electronics accessories essential, designed for dependable everyday performance and lasting value.

is_customized: Yes

semi_Choice: yes

CH340G Replace FT232RL

8 analog inputs ports:A0 ~ A7

14 Digital input / output ports:TX,RX,D2 ~ D13

6 PWM ports:D3, D5, D6, D9, D10, D11

1 pairs of TTL level serial transceiver ports RX / TX

Using Atmel Atmega328P-AU MCU

There is bootloader installed in it

Support USB download and Power

Support for external 5V ~ 12V DC power supply

Support power supply by 9V battery

Support ISP download

1. Open the Arduino IDE, then select the board Arduino Nano and connect the Nano which is work normally.
2. Select the ArduinoISP sketch and then upload it.
3. Connect the Nano which is not work to the Nano at the list:

Nano----------Nanonot work
10------------RST
11------------11
12------------12
13------------13
+5V-----------+5V
GND-----------GND
4. Then Open the Nano_Repair.exe, enter the Serial number like COM6 enter 6.

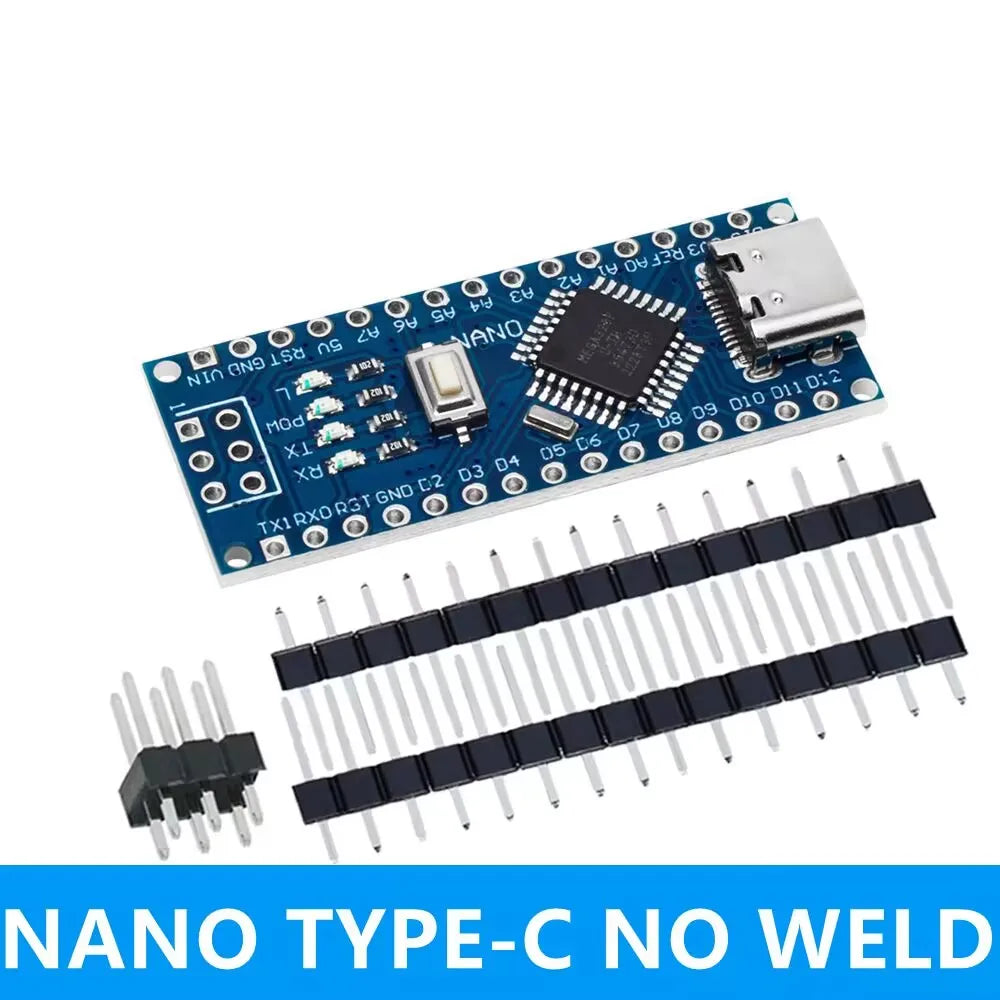

Choose from 2 color options (NANO TYPE-C, NANO TYPE-C weld).

Each order includes SMD.
