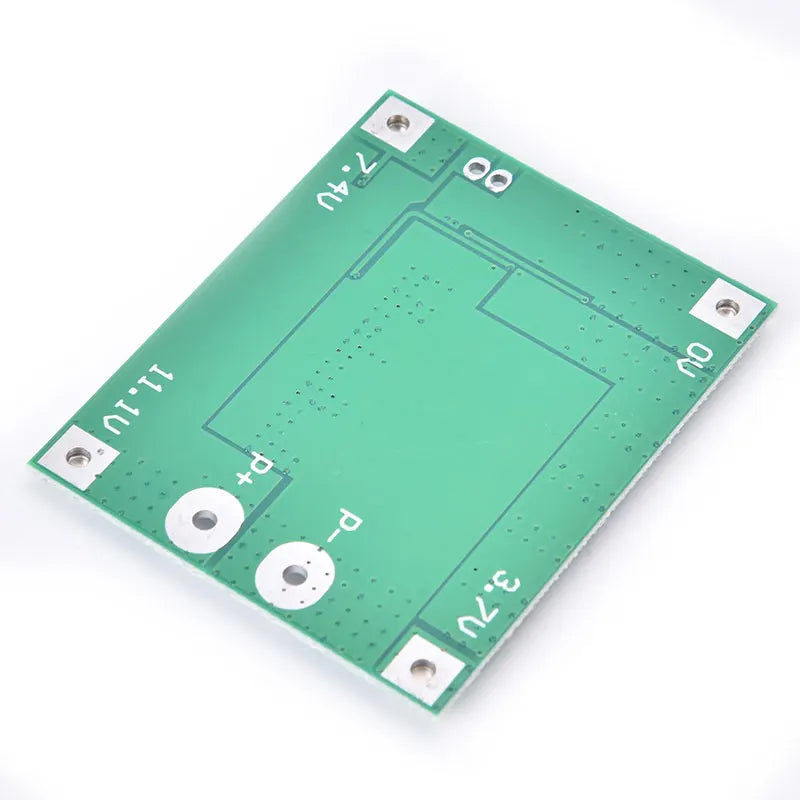

3S 12V 18650 BMS Li-Ion Battery Protection Board 25A Balance

3S 12V 18650 Li-Ion Battery Protection Board with Balance | 25A | 11.1V–12.6V

Keep your 3-cell lithium-ion battery packs running safely and efficiently with this high-quality 3S BMS Protection Board. Designed for 18650 Li-ion cells configured in a 3-series arrangement (11.1V nominal / 12.6V fully charged), this compact module guards against overcharge, over-discharge, overcurrent, and short circuits — all while actively balancing cell voltages for a longer, healthier battery life.

Made in Mainland China.

Key Features

• High-Accuracy Voltage Detection: Precisely monitors each cell to trigger protection thresholds with minimal error (±0.05V).
• High-Voltage Charger Terminal: Charger-side input rated for high-voltage compatibility, ensuring safe charging cycles.
• Three-Stage Overcurrent Detection: Detects overcurrent Level 1, overcurrent Level 2, and load short-circuit conditions independently for layered protection.

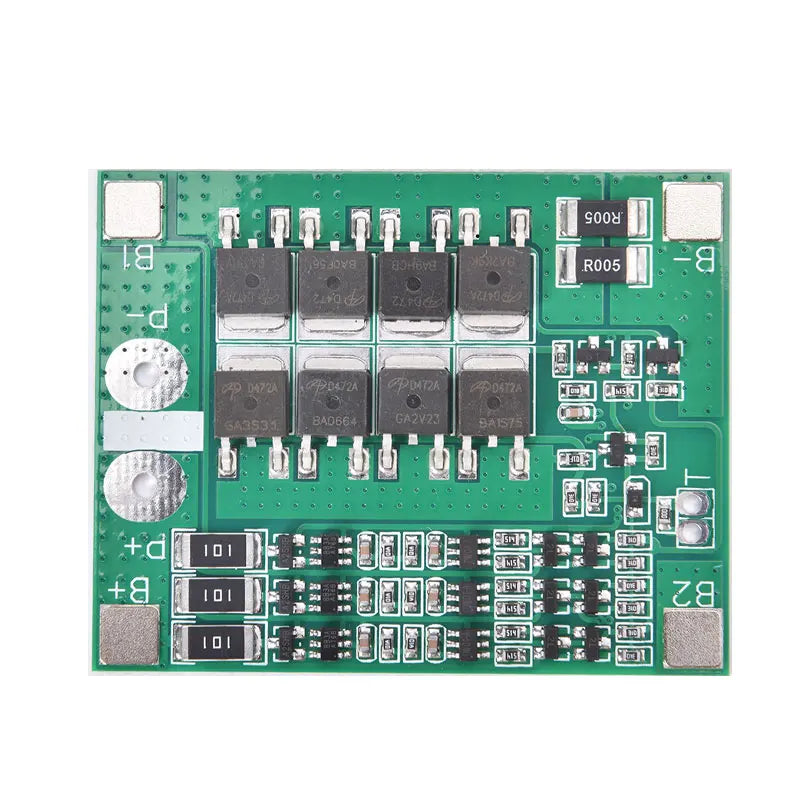

• MOS Transistor Control: MOSFET switching technology precisely manages both charge and discharge paths.
• Cell Balancing Function: Passive balancing keeps all three cells at matched voltage levels, extending overall pack lifespan.
• Ultra-Low Standby Current: Only 50µA standby draw — ideal for applications where the battery sits idle for extended periods.
• Short-Circuit Recoverable: After a short-circuit event, reconnecting a charger automatically resets and restores the board.

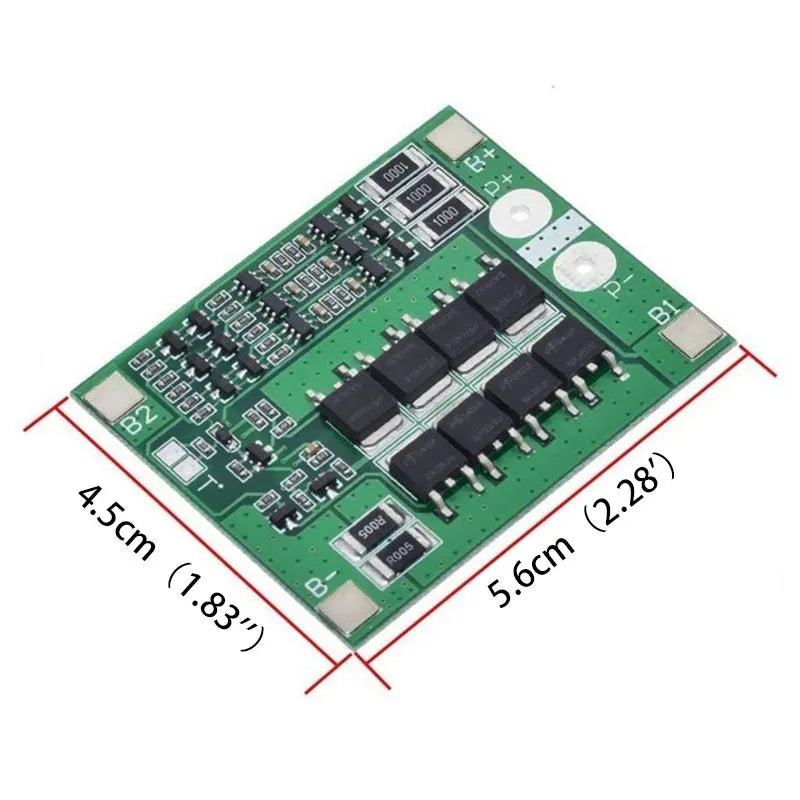

Technical Specifications

What's in the Box

• 1 × 3S 12V Li-Ion Battery Protection Board (BMS) with Balance

Common Applications

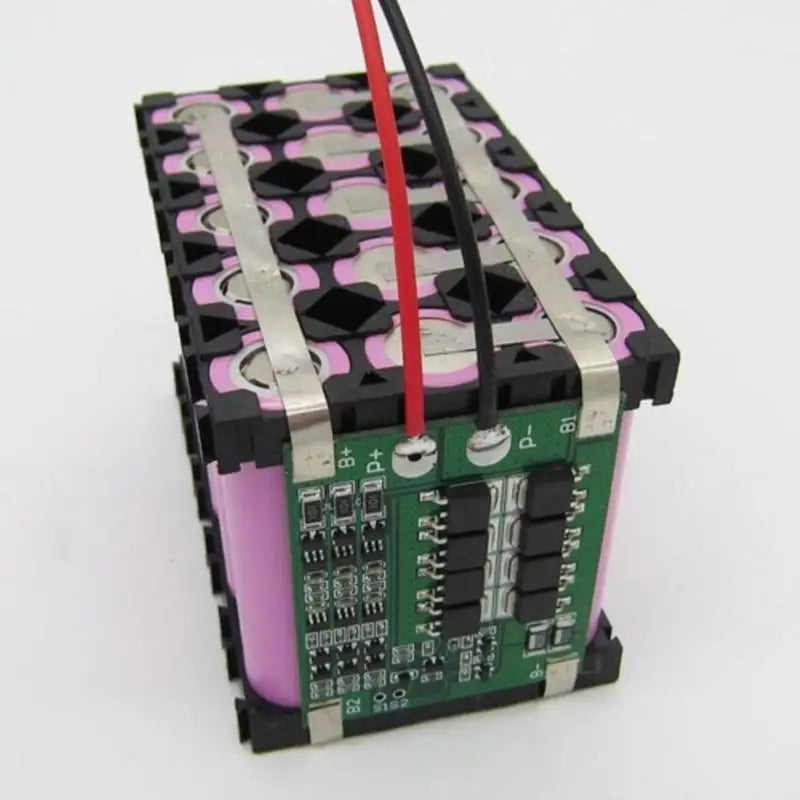

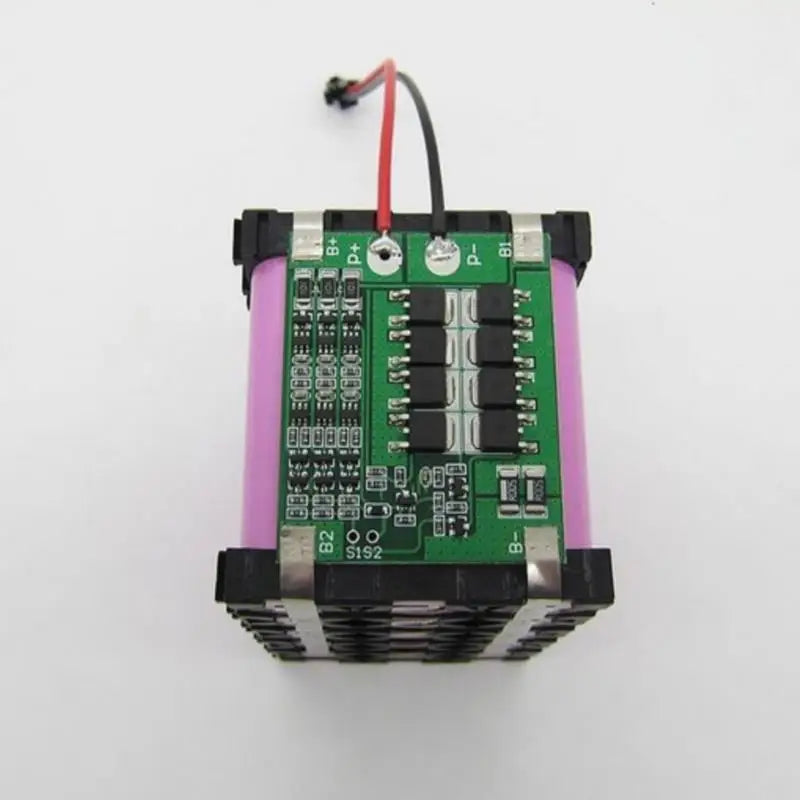

This BMS module is well suited for DIY power banks, electric tools, e-bikes, RC vehicles, solar storage, and any custom 3S 18650 battery pack project where reliable, multi-layer protection is essential.

Related Products You May Like

• 1/4" NPT Nickel Plated Brass Air Compressor Tank Fill Valve
• 1/4" Hex Shank Wire Twister Drill Attachment | Rebar Tie Tool
• 1/2" Drive Wheel Protector Impact Socket Set + Storage Case

Safety & Standards Reference

For guidance on the safe handling and disposal of lithium-ion batteries, refer to the U.S. Consumer Product Safety Commission — Lithium-Ion Battery Safety resource.

Learn more: Battery management system

Frequently Asked Questions

Q: What does a 3S BMS protection board do for my Li-ion battery pack?

A: A 3S Battery Management System (BMS) board monitors and protects three lithium-ion cells connected in series. It prevents overcharging (above ~4.25–4.35V per cell), over-discharging (below ~2.3–3.0V per cell), overcurrent events up to 25A continuous, and short circuits. The built-in balancing function also keeps all three cells at equal voltage levels, which maximizes the usable capacity and overall lifespan of your battery pack.

Q: Is this board compatible with standard 18650 Li-ion cells?

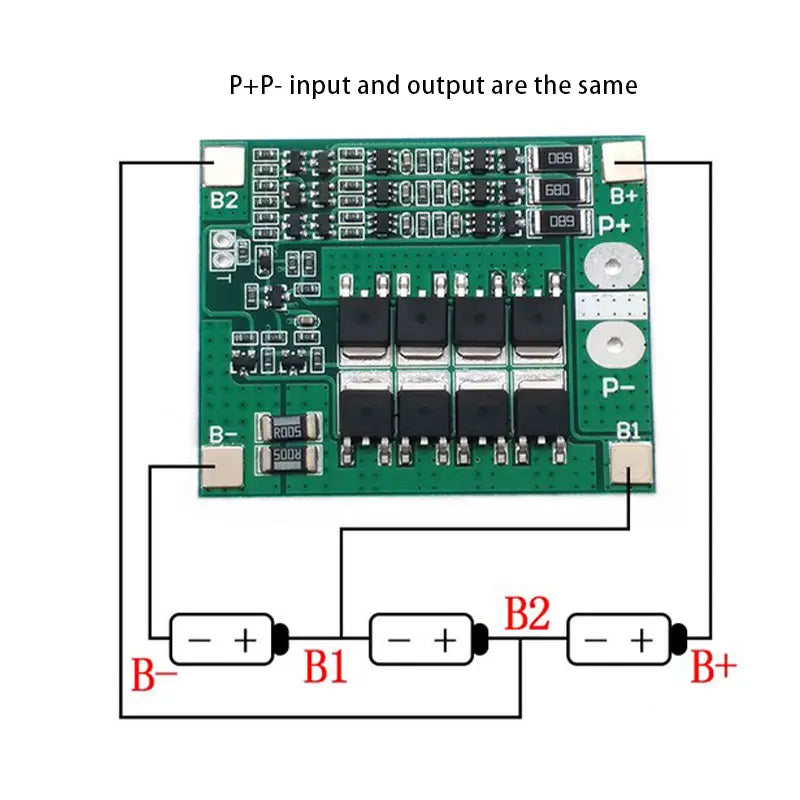

A: Yes. This protection board is specifically designed for 3 × 18650 lithium-ion cells wired in series (3S configuration), giving a nominal pack voltage of 11.1V and a fully charged voltage of 12.6V. It is compatible with standard 18650 Li-ion cells and widely used in DIY power tools, RC applications, e-bikes, power banks, and solar storage projects.

Q: What happens if a short circuit occurs — is the board permanently damaged?

A: No. This board features recoverable short-circuit protection. If a short-circuit event is detected, the board cuts power to protect your cells. Simply reconnect a compatible charger to reset the board and restore normal operation — no replacement is needed after a standard short-circuit event.

Q: What is the maximum current this BMS can handle continuously?

A: The board supports a maximum continuous working current of 25A, with peak current handling of 35–40A for brief transient loads. Internal resistance is rated at less than 100mΩ to minimize energy loss during operation.
