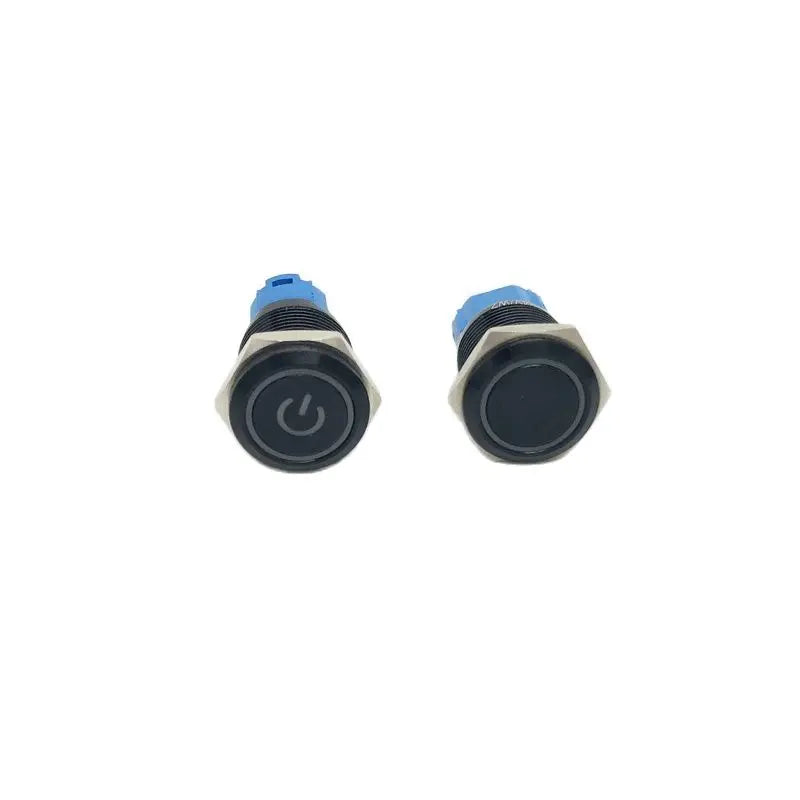

Black Metal Push Button Start Stop Power Off Momentary Switch LED

The Black Metal Push Button Start Stop Power Off Momentary Switch LED is a premium quality decor essential, designed for dependable everyday performance and lasting value.

Is Smart Device: no

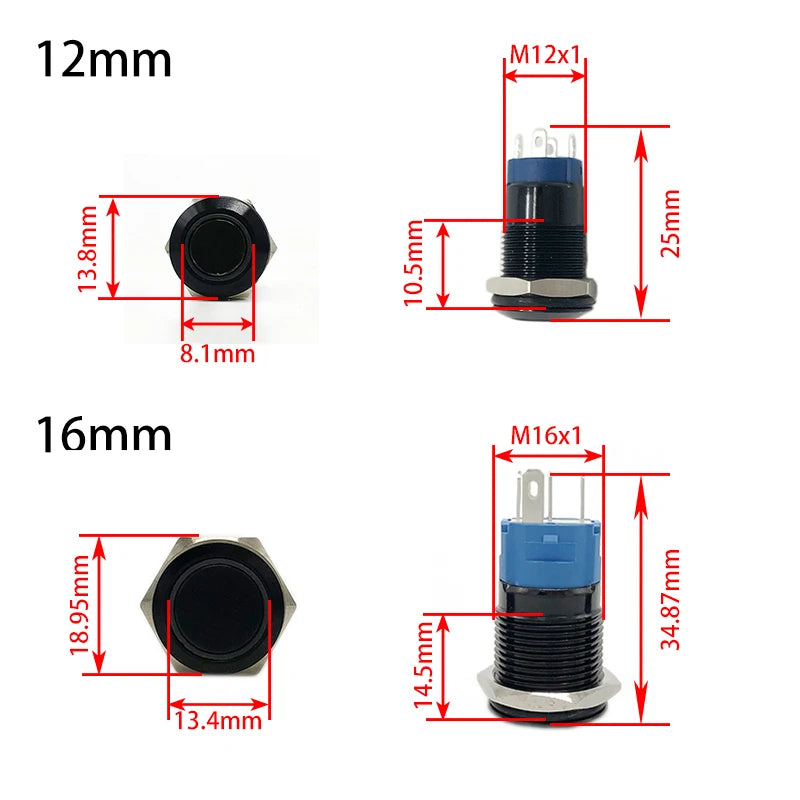

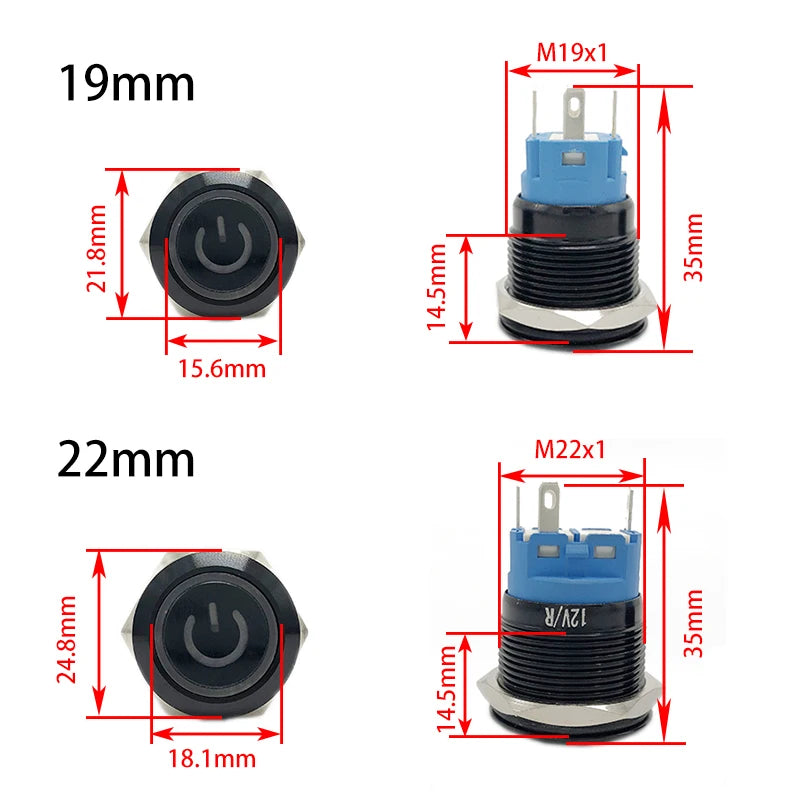

Size Size12mm4Pin 16/19/22mm5Pin
Rating: 3-6V12-24V220V.
Please contact the Seller for customization.

NOTES:

1.What does the signal "NC" and "NO" means?

"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C ": Common

2.How to connect?

1.Connect " NO " and " C ": The circuit is alway open unless press the button.
2.Connect " NC " and " C ": The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal rin.

The delivery does not contain sockets or any wires, if you need them, you can purchase them separately. Click Here.

12MM Wiring Diagram 1:

LED lights always on

12MM Wiring Diagram 2:

The button is pressed and LED lights up

16/19/22 MM Wiring Diagram1:

Light: Not Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram2:

Light: Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram3:

Light: Working
Switch: closed
When you Pess the button, light: Not Working & Switch: Opened.

16/19/22 MM Wiring Diagram4:

Light: Working
Switch: closed
When you Pess the button, light: Working & Switch: Opened.

This piece is crafted from aluminium alloy.

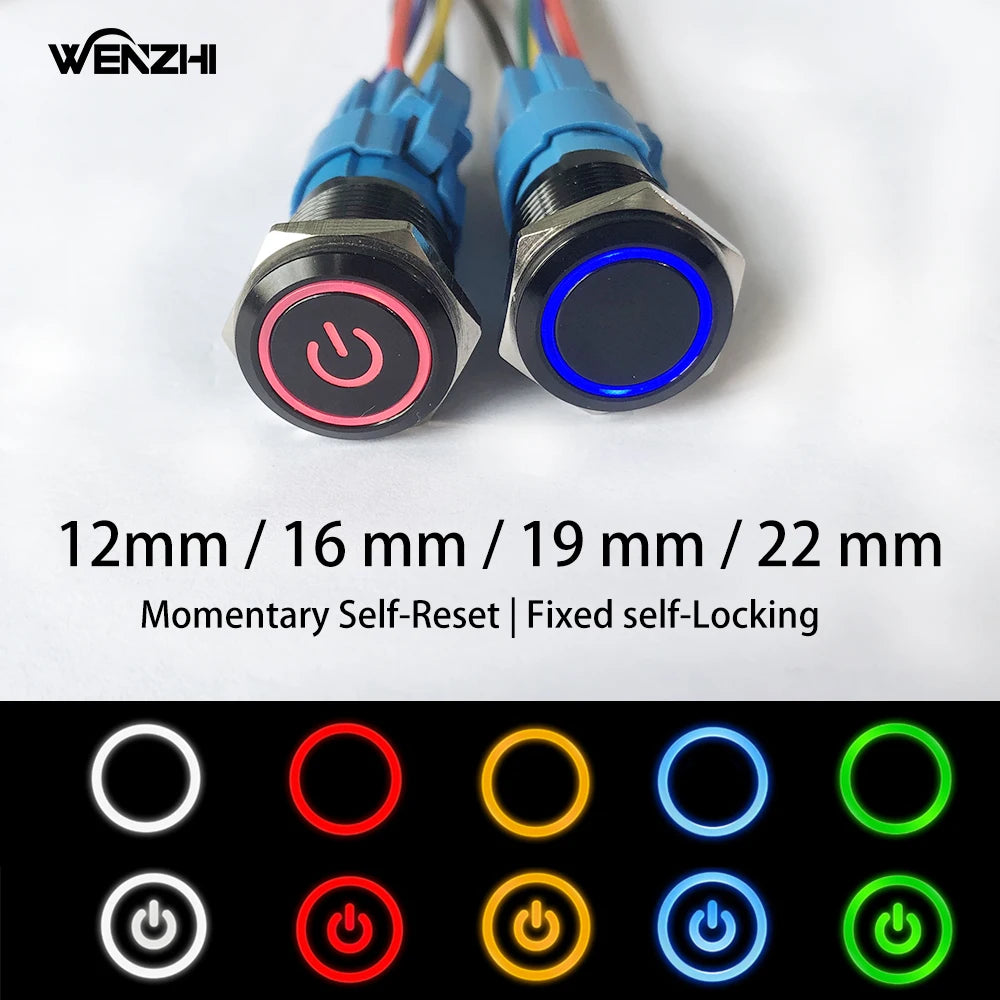

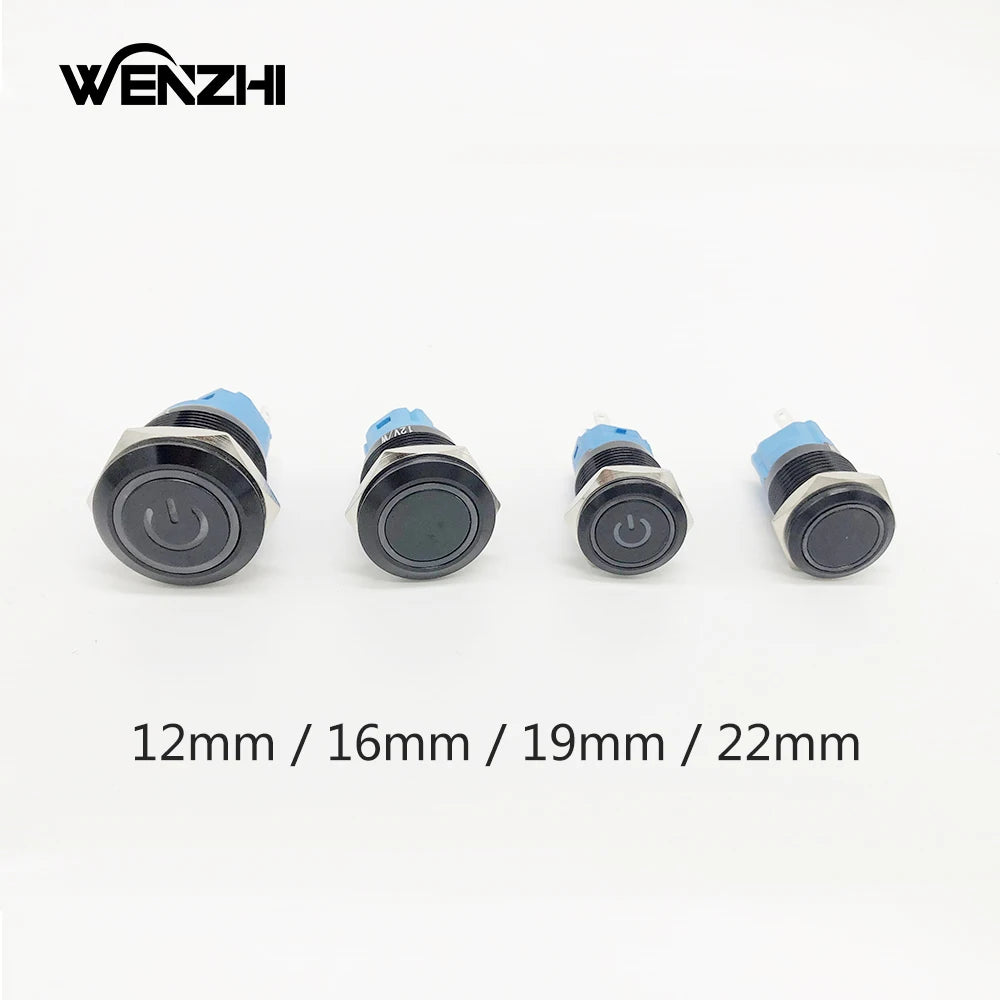

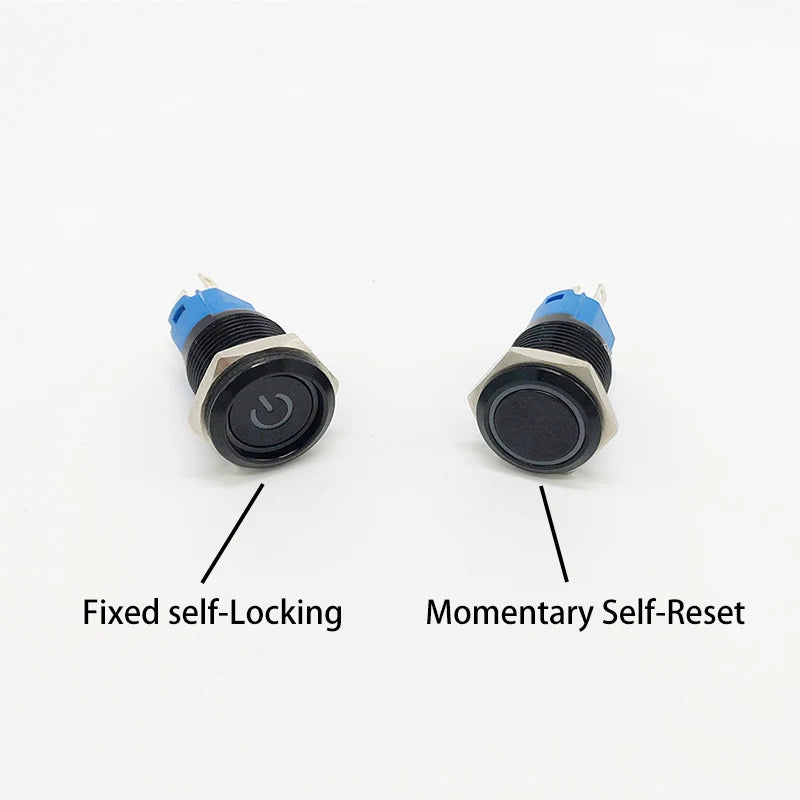

Choose from 10 color options (BLUE POWER LED, GREEN LED, BLUE LED, YELLOW POWER LED, YELLOW LED, RED POWER LED, WHITE POWER LED, WHITE LED, and more), 4 size options (22mm, 19mm, 12mm, 16mm) and 6 voltage|standard options (3-6V(5V)|Momentary Self-Reset, 220V(220V)|Fixed self-Locking, 12-24V(12V)|Fixed self-Locking, 3-6V(5V)|Fixed self-Locking, 220V(220V)|Momentary Self-Reset, 12-24V(12V)|Momentary Self-Reset).
