BLuetooth BLE Switch Module Relay Light LAMP Off Wireless Remote

The BLuetooth BLE Switch Module Relay Light LAMP Off Wireless Remote is a wireless electronics accessories essential, designed for dependable everyday performance and lasting value.

Is Smart Device: Yes

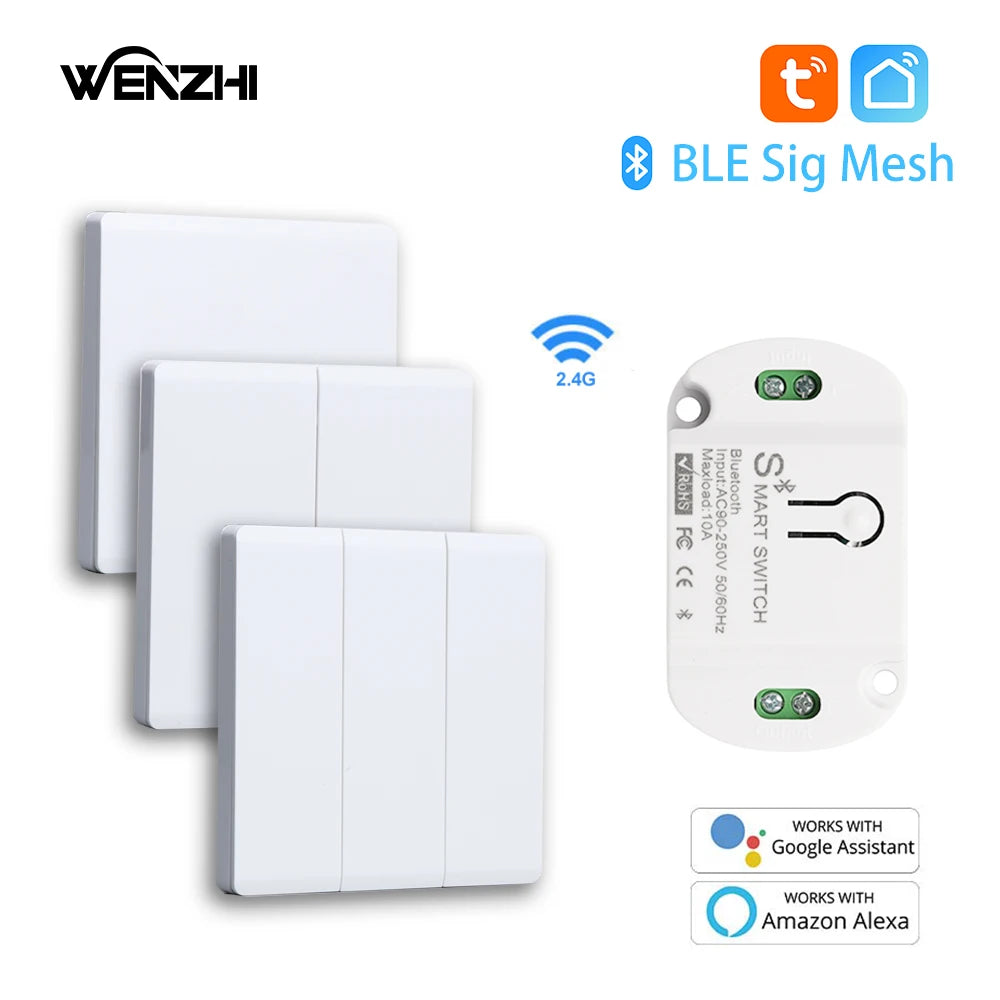

BLuetooth/BLE Switch Module With 2.4G Remote Control

Main Features

1.Various control methods: receiver buttons, Smart Life/Tuya App, 2.4G remote control panel, voice control.

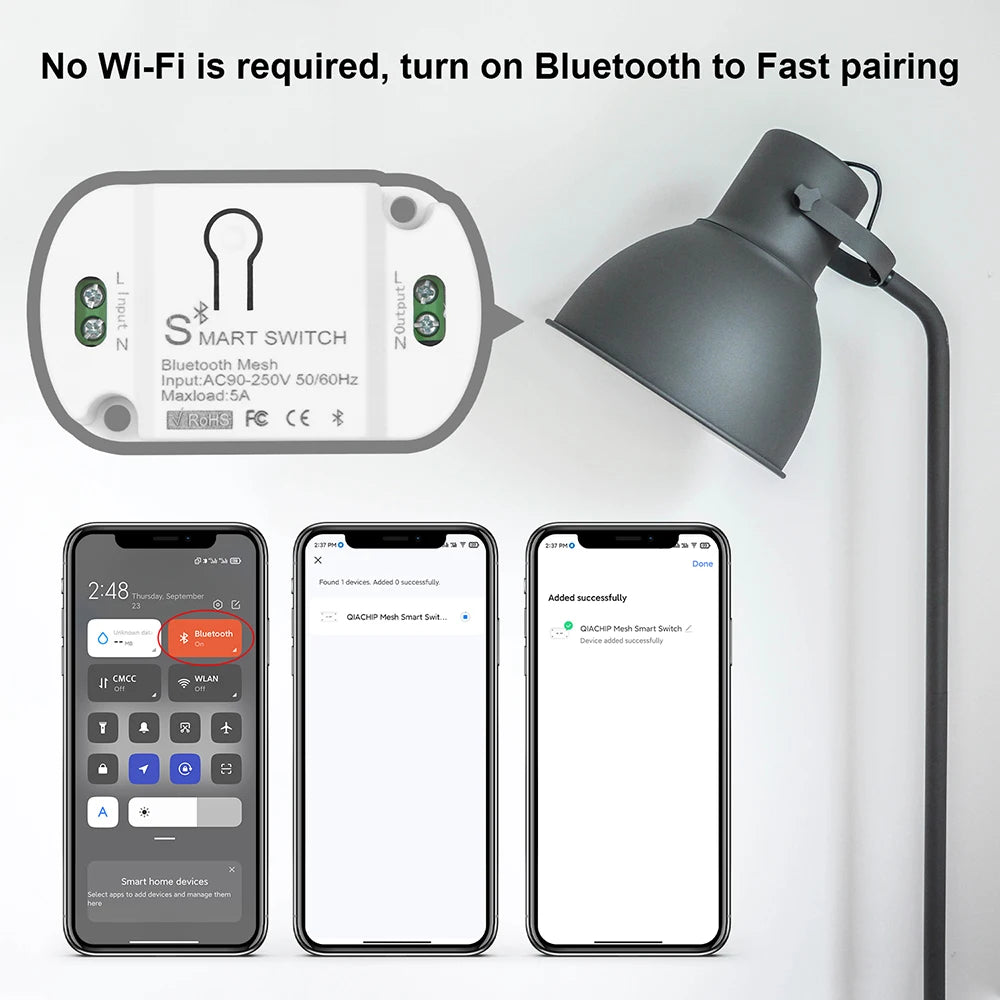

2.The receiver uses Bluetooth protocol and can be directly controlled locally using the Smart Life/Tuya App (the phone needs to have Bluetooth enabled). You can also connect the receiver to the Tuya Bluetooth hub for remote control.

3.The receiver supports local control with a 2.4G remote control (only the 2.4G remote control provided in this link), with a control range of approximately 10 meters.

4.Advantages of 2.4G over R433: 2.4G is less susceptible to interference.

Product parametersReceiver

1.Working voltage:AC90-250V 50/60Hz
2. Maximum relay contact current: 10A
3.Frequency: 2.4GHz
4.Wireless protocol: Bluetooth BLE
5. Control method: device button/mobile App/2.4G free panel switch/smart speaker

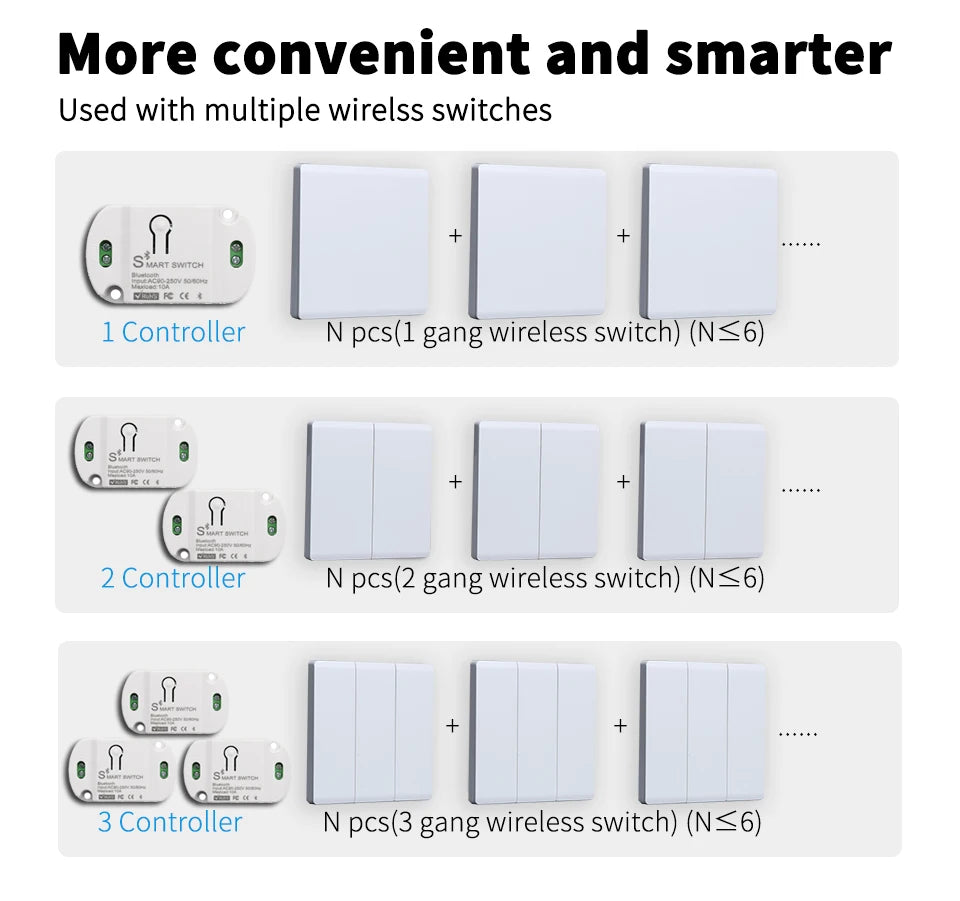

6. Number of panel switches (single button version)that support pairing: 16

resistive power 2200W
Induction power 500W
Capacitive power 200W
Incandescent lamp 2200W
LED light 300W
Energy-saving lamp 300W

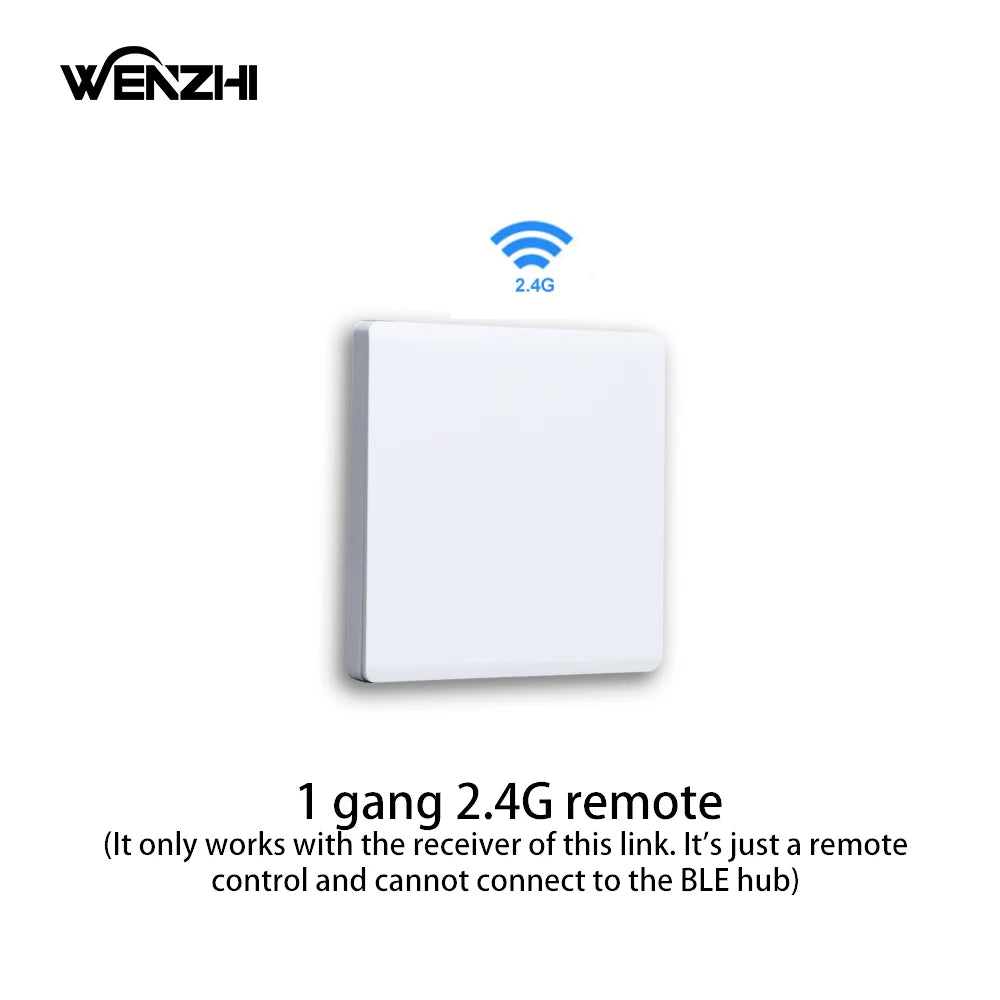

Product parameters2.4G Remote Control

1.Battery Model: CR2032 (Package Not included battery)
2.Dimensions: 88mm x 90mm x 10mm
3.Distance:About 10 meters.

1. The timing function in the mobile App must be used with a tuya Bluetooth hub, and the countdownfunction can be used independently.
2. The optional panel switch should be our 2.4G remote control.
3. If you are using an Android phone, you must operthe location permission of the App.
4.The 2.4G remote control cannot be connected to the Tuya Bluetooth hub, only the receiver can be connected.
5.The indicator light of the 2.4G remote control is located under the plastic panel, and you can pair the remote control and receiver when installing the battery.

2.4G Remote switch pairing operation

a. Manual switch mode description
Press the device button once to power on the output terminal of the device, and press the button again to power off the output terminal of the device.

b. Toggle mode pairing instructions
Toggle mode: The same button of the 2.4G Remote panel switch can control the power on and off of the output terminal of the device. Press it once to power on the output terminal of the device,and press it again to power off the output terminal of the device
Setting method: Press the device button twice in quick succession, the device indicator flashes, the device enters the code matching state, and then long press the button of the 2.4G Remote panel switch until the button enters the code matching state (in the codematching state, the panel button indicator light wil flash), the indicator light goes out after the two devices are successfully paired.

c. Latching mode pairing instructions
Latching mode: The two buttons of the 2.4G Remote panel switch are used to control the power on and off of the output terminal of the device respectively. One button can only control the power on of the output terminal of the device, and the other button can only control the power off of the output terminal of the device.

Setting method: Press the device button 3 times inquick succession, the indicator of the device is always on, and the device enters the code matching state, and then long press the button of the 2.4G Remote panel switch until the button enters the code matching state (in the code matching state, the panel button indicator light will flash), and then press and hold the other button of the 2.4G Remote panel switch until the button enters the code matching state (in the code matching state, the 2.4G Remote panel button indicator light will flash), and the indicator light will go out after the code is successfully matched.

d. Reset settings
After pressing the device button 8 times in rapid succession, the device clears all 2.4G Remote panel switch datain its memory. When the device indicator flashes 8times continuously, it indicates that the reset hasbeen completed.

This piece is crafted from plastic.

Choose from 12 color options (1Gang1, 3Gang2 receiver3, 3Gang1 receiver3, 2Gang2 receiver2, BLuetooth Hub, receiver1, 3Gang1, 2Gang1, and more) and 1 ships from option (China Mainland).
