DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo ON OFF Black

DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless Remote Control

ON OFF Black
$24.11
$24.11 $29.85
Skip to product information
DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo ON OFF Black
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo ON OFF Black
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo ON OFF Black
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
  • DC 12V 1CH Relay Receiver Module AB/ON 2 Buttons Wireless Remote Control Switch 433 Mhz RF Transmitter Electronic Lock Control Zpaxo
DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless Remote Control

DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless Remote Control

$24.11
$24.11 $29.85
Color

The DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless Remote Control is a wireless, soft decor essential, designed for dependable everyday performance and lasting value.

Package: No

Support APP: No

Maximum input power is 250 V

• Input Voltage: 12 V, RF working mode: Superheterodyne
• Receiver sensitivity: > 97 dbm
• Transmitting distance:> 100 m (open space)
• Decoding mode: MCU software decoding
• Remote storage: 20
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s,10s,15s)

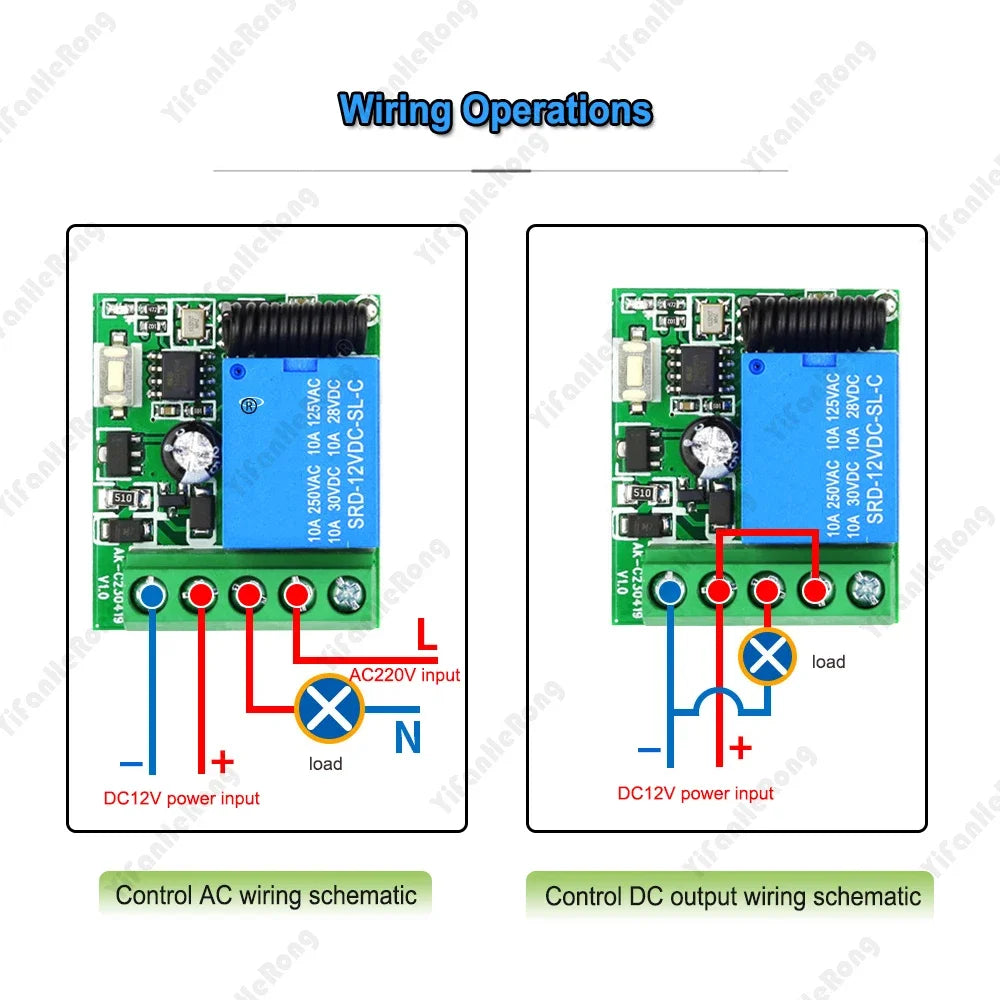

• Output terminal: NO, NC, COM
• Dimension of PCB:35 x 30 x 18 mm (L,W,H)
• Remote control battery: 2 x 3 V CR2016 button batteries

Operation introduction

Clear code:
Press and hold the receiver learning button for 8 seconds, and the indicator light will return from off to on, indicating that the control code is cleared successfully.

Jog mode:
Press the learn button of the receiver once, and then press the button of the remote control. The receiver indicator flashes continuously for several times to indicate that the pairing is successful.

Self locking mode:
Press the learn button of the receiver twice, and then press the button of the remote control. The receiver indicator flashes continuously for several times to indicate that the pairing is successful.

Interlock mode:
Press the learn button of the receiver three times, then press the A button of the remote control. The indicator light flashes and remains on. Press the B button again, and the receiver indicator light flashes continuously several times to indicate successful pairing.

5 second delay mode:
Press the learn button of the receiver 4 times, and then press the button of the remote control. The receiver indicator flashes continuously for several times to indicate that the pairing is successful

10 second delay mode:
Press the learn button of the receiver five times, and then press the button of the remote control. The receiver indicator flashes continuously for several times to indicate that the pairing is successful

15 second delay mode:
Press the learn button of the receiver 6 times, and then press the button of the remote control. The receiver indicator flashes continuously for several times to indicate that the pairing is successful

Package included



After-sales


Choose from 4 color options (ON OFF Black, ON OFF White, AB Black, AB White).

Shop the DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless Remote Control today — your go-to decor pick for relay, receiver, module, buttons and more.

You may also like: Portable Folding Parking Space Lock Thickened, 652F Case Xplora Play Waterproof Screen Cover Anti-scratch and MAX4466 MAX9814 Sound Sensor Module 3 3V-5V 60dB SNR Arduino.

Frequently Asked Questions

Q: What is the DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless?

A: The DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless is a quality decor pick. The receiver indicator flashes continuously for several times to indicate that the pairing is successful.

Q: How do I use the DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless?

A: The DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless?

A: The DC 12V 1CH Relay Receiver Module AB 2 Buttons Wireless stands out in our decor range — The receiver indicator flashes continuously for several times to indicate that the pairing is successful.
