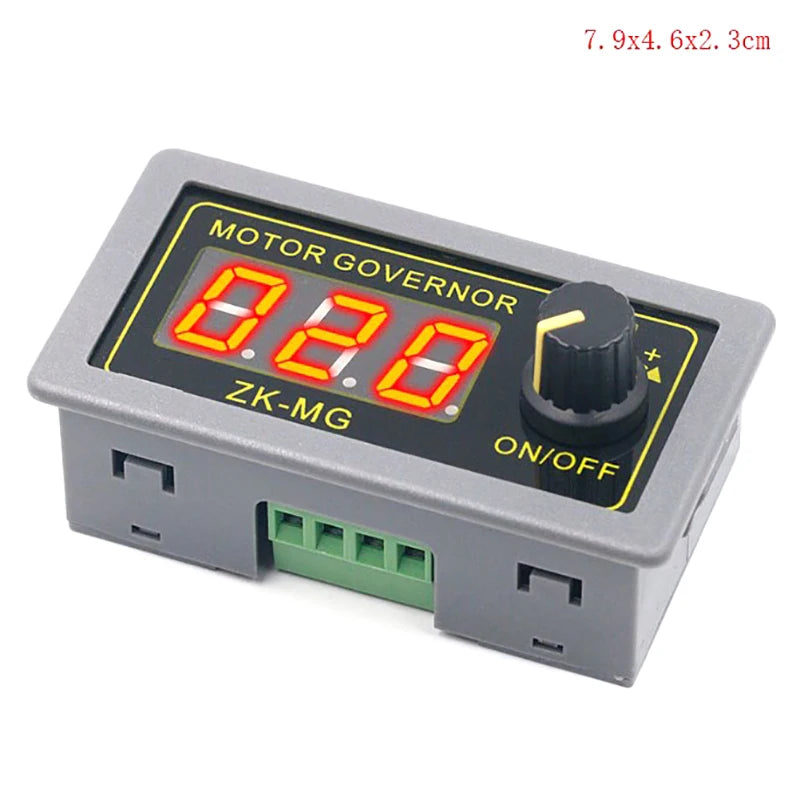

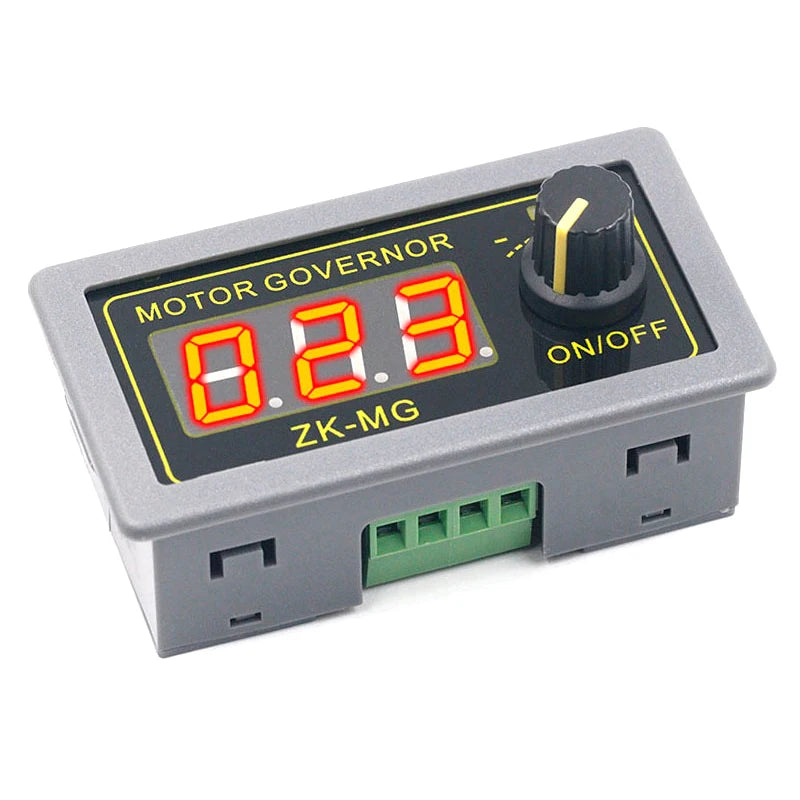

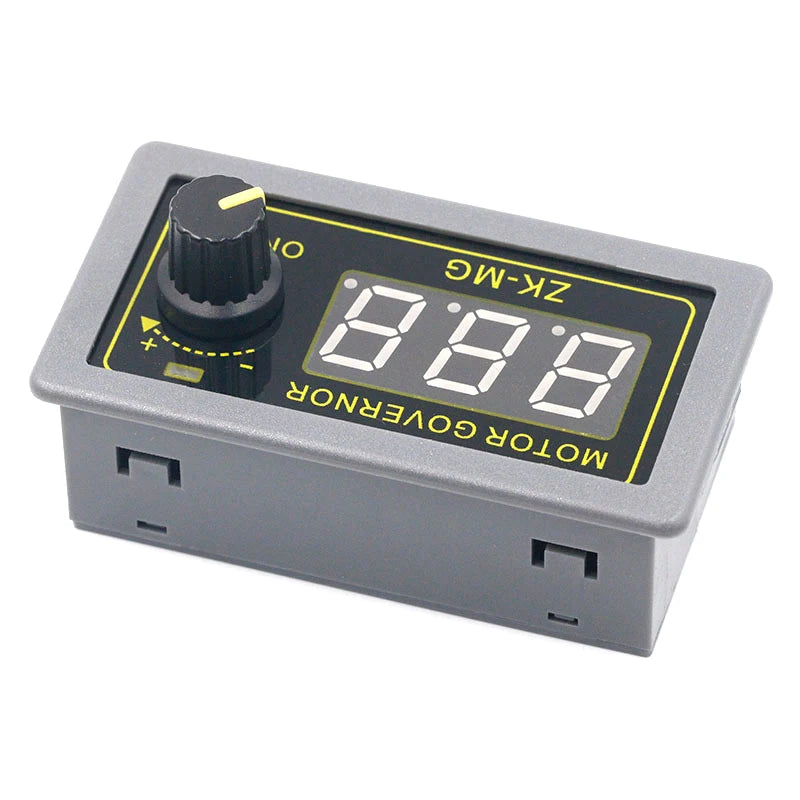

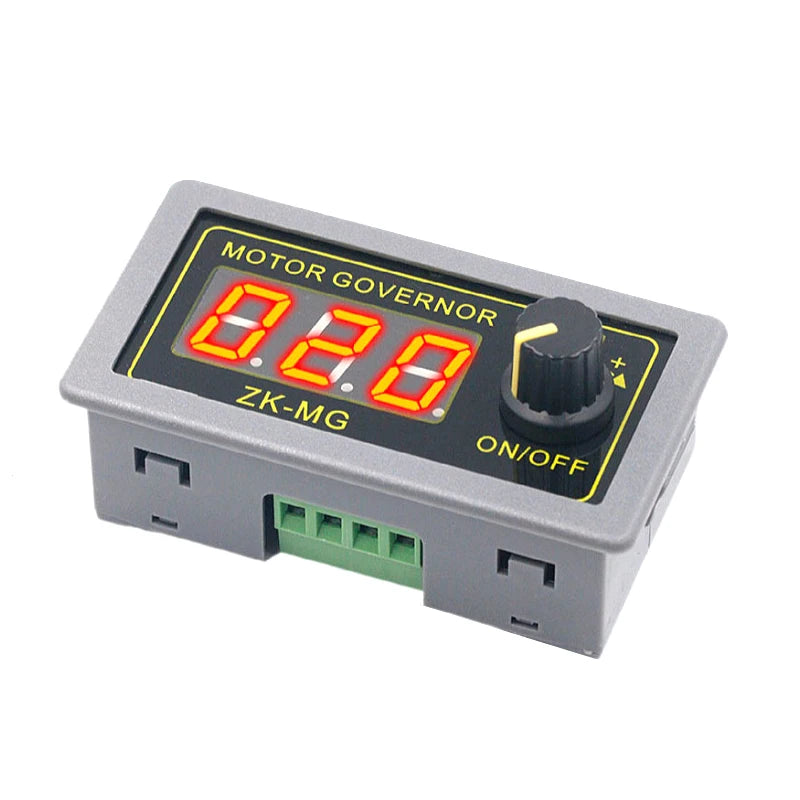

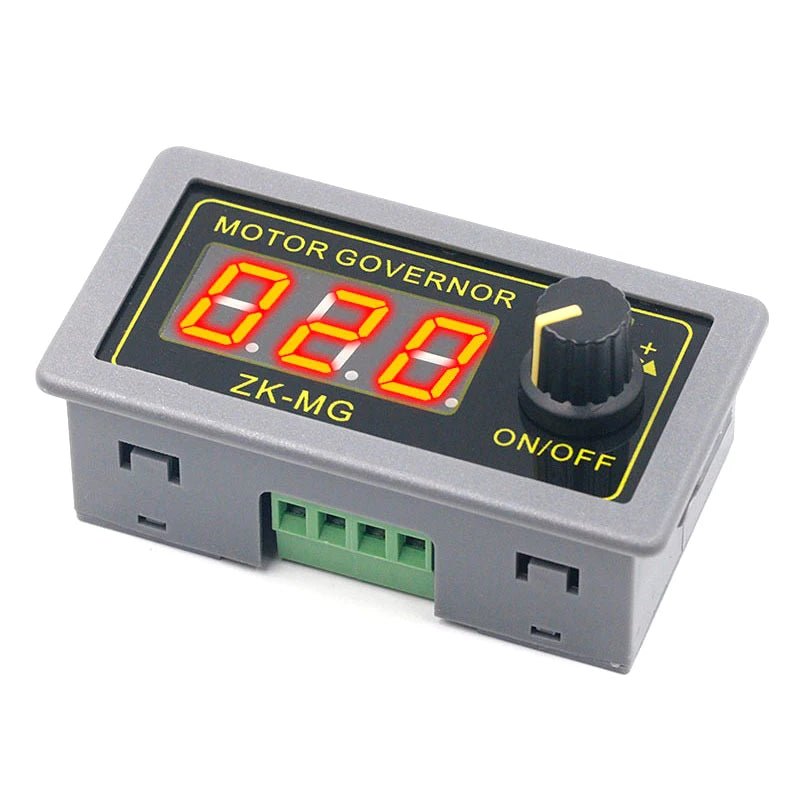

ZK-MG PWM DC Motor Speed Controller – Precise, Digital & Easy to Use

Take full control of your DC motor projects with this ZK-MG PWM Motor Speed Controller. Designed for hobbyists, engineers, and makers alike, this compact unit supports DC 5V–30V input (compatible with 12V and 24V systems) and handles a rated current of 5A continuous, up to 15A peak — perfect for a wide range of DC motor applications including fans, pumps, conveyors, and automation systems.

The built-in digital encoder knob delivers far greater accuracy and repeatability than a standard potentiometer, letting you dial in your exact duty cycle or frequency with confidence. A clear digital display keeps your settings visible at a glance, and all parameters are saved to memory even after power loss.

Key Features

Wide Voltage Range: DC 5V–30V input with built-in anti-reverse polarity protection
Rated 5A / Max 15A: Up to 150W maximum power output
Soft Start Function: Current ramps up gradually on motor start — no sudden current spikes, extending motor lifespan
Adjustable PWM Frequency: 1 KHz–99 KHz in 1 KHz steps (default 20 KHz, ~1% accuracy)
Full Duty Cycle Control: 0–100% in 1% steps; upper and lower duty cycle limits are independently configurable
Digital Encoder Knob: Rotate clockwise to increase duty cycle, counterclockwise to decrease — more precise than a potentiometer
Start/Stop Button: Short press to start or stop the motor; external switch control also supported via STOP port (3.3V logic or switch key)
Power-Down Memory: All set parameters are retained after power is removed
Standard 5135 Instrument Shell: ABS housing for easy panel mounting and installation
Made in Mainland China

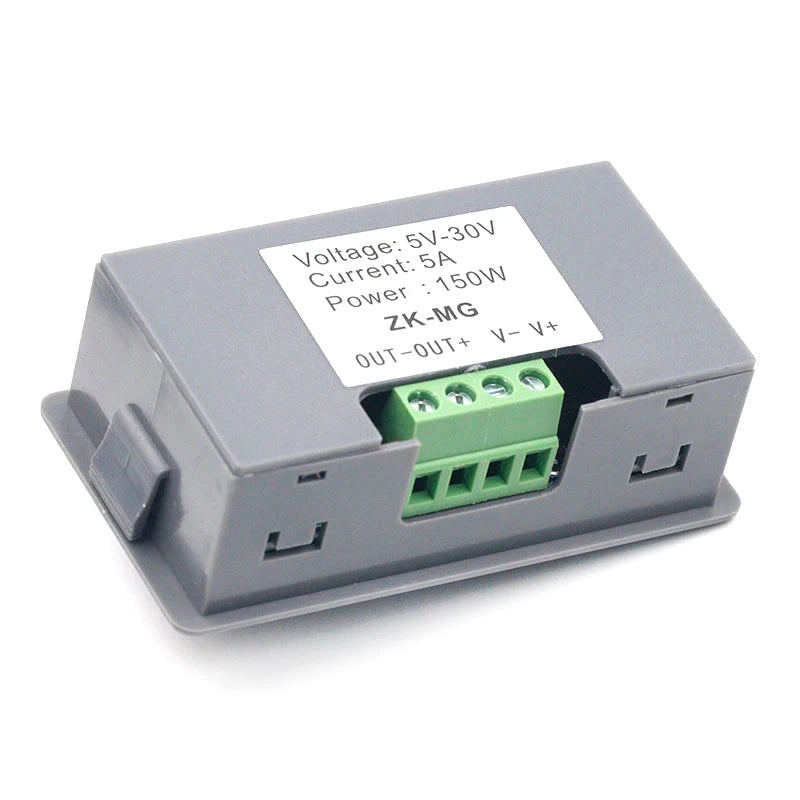

Technical Specifications

Input Voltage	DC 5V – 30V
Rated Current	5A (Max 15A)
Maximum Power	150W
PWM Frequency	1 KHz – 99 KHz (default 20 KHz)
Duty Cycle	0% – 100% (1% step)
Material	ABS
Package	1 × ZK-MG PWM Motor Speed Controller

How to Use the Encoder Knob

Default Interface (Duty Cycle Display):

Short Press — Toggle motor start/stop
Long Press — Enter settings menu
Rotate Clockwise — Increase duty cycle
Rotate Counterclockwise — Decrease duty cycle

Settings Interface:

Short Press — Cycle through parameters: Duty Cycle Lower Limit (L__), Upper Limit (H__ / 100), Working Frequency (F__)
Long Press — Exit settings
Rotate — Increase or decrease the selected parameter value

External STOP Port: Connect an external switch or apply a 3.3V logic signal to remotely toggle the motor's start/stop state — ideal for automation and custom control setups.

Related Products You May Like

For further reading on electrical safety and standards for electronic components, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What voltage range does the ZK-MG PWM motor speed controller support?

A: The ZK-MG supports a DC input voltage of 5V to 30V, making it compatible with common 12V and 24V DC motor systems used in hobby, automotive, and industrial applications.

Q: Can I control this PWM motor controller with an external switch?

A: Yes. The rear STOP port allows you to connect an external switch or 3.3V logic signal to remotely toggle the motor start/stop state, making it ideal for custom automation and control panel setups.

Q: Will the settings be saved if the power goes out?

A: Absolutely. The ZK-MG features power-down memory storage, so all your configured parameters — duty cycle limits, working frequency, and more — are retained even after the unit loses power.

Q: What is the maximum current and power this controller can handle?

A: The controller is rated at 5A continuous current with a maximum peak of 15A, and a maximum power output of 150W. For sustained high-current applications, ensure adequate heat dissipation.

Q: How does the soft start function benefit my motor?

A: The soft start gradually ramps up current when the motor is turned on, eliminating sudden current spikes that can stress motor windings and reduce lifespan — keeping your equipment running longer and more reliably.
