DPA-1698 double channel power amplifier, with strong stability and low noise, is very simple and convenient to use.
Made from high-strength and quality aluminum alloy, it has quick heat dissipation and durability.
Two times the amplitudes of the input the single channel current can reach 1Amp, and the frequency ranges is 0-100KHz.
The input sine wavy frequency is 80KHz and the amplitudes is 20Vpp. After the power amplifier, the amplitudes is magnify twice to reach 40Vpp.
It is also very suitable for use in teaching equipment, industrial control, product line testing, metal testing, and other fields.
Specifications:
Material: Aluminum Alloy

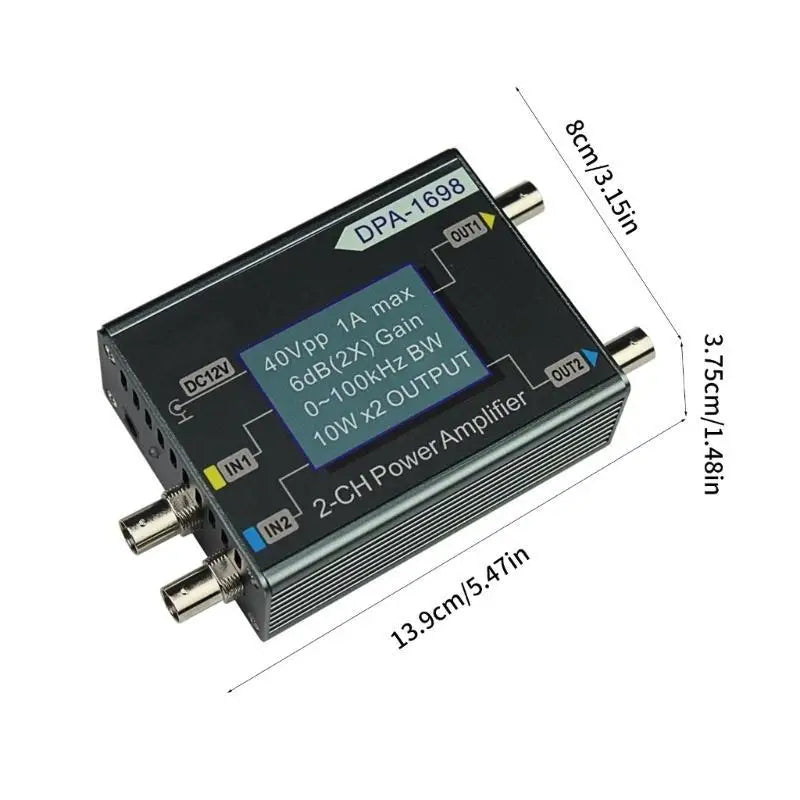

Size: Approx. 13.9x3.75x8cm/5.47x1.48x3.15inch
Name: DPA1698 2.0-Channel Power Amplifier
bandwidth: 0~100KHz
Input Amplitudes Ranges: 0~20Vpp
Output Amplitudes Ranges:0~40Vpp
6dB Magnify 2 times)
Output current: up to 1Amp
Output power: up to 10Wx2
Output impedance: ≤1Ω
Output phase: In phased with input
Distortion: ≤1%
Flatness of output ±1dB
Input power supply DC12V±10%
Input current: up to 5A
Package Includes:
1x DPA1698 High Powered Power Amplifier
1x 12V 5A Power Adapter(Standard American Plug)
1x Cable
Note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
