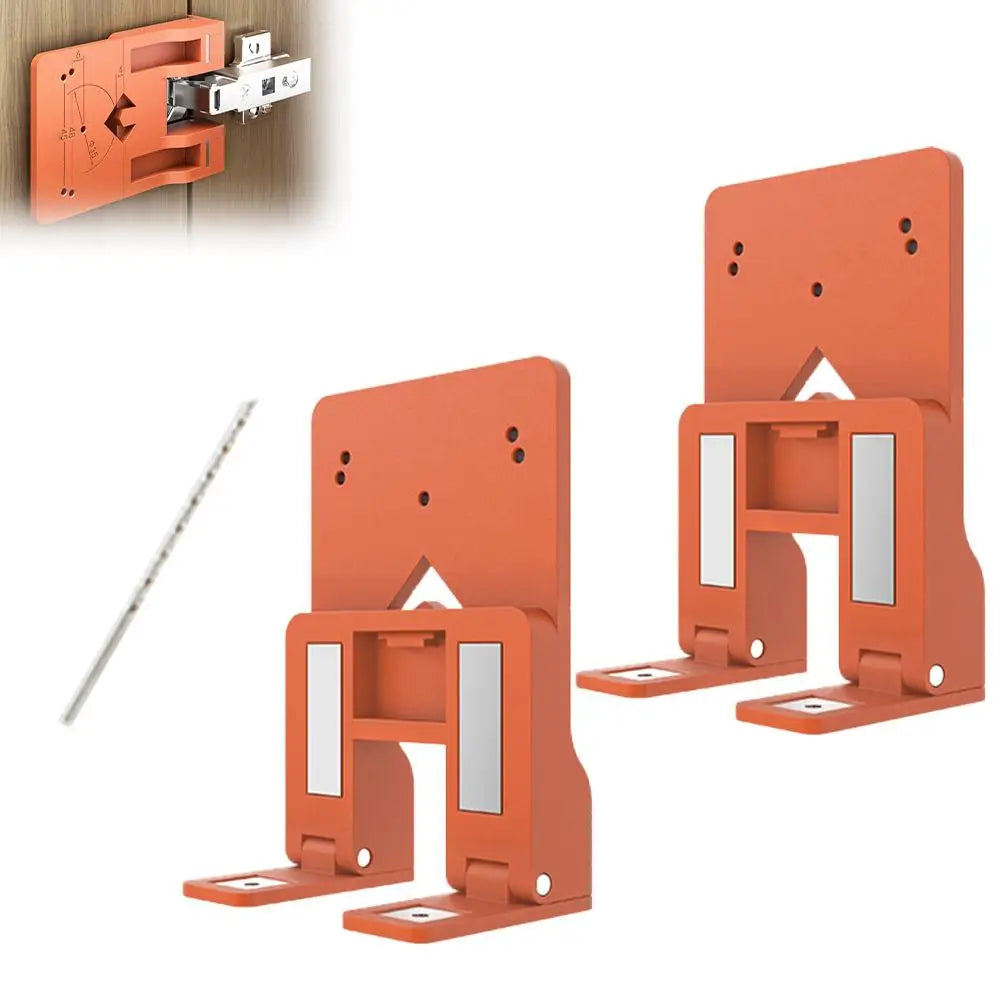

Install Cabinet Hinges Perfectly Every Time

Say goodbye to misaligned cabinet doors and frustrating do-overs. The KITPIPI Magnetic Fixing Plate Hinge Jig is a compact, precision-engineered auxiliary tool that takes the guesswork out of cabinet hinge installation. Whether you're a seasoned woodworker or a weekend DIY enthusiast, this clever little jig delivers professional-grade results in a fraction of the time.

Made in Mainland China.

Key Features

Premium ABS Construction: Built from high-quality, durable ABS plastic that withstands repeated use on the job site or in the workshop. Compact dimensions of 6.6 × 4.41 × 9.97 cm (2.6 × 1.73 × 3.92 in) make it easy to carry and store.

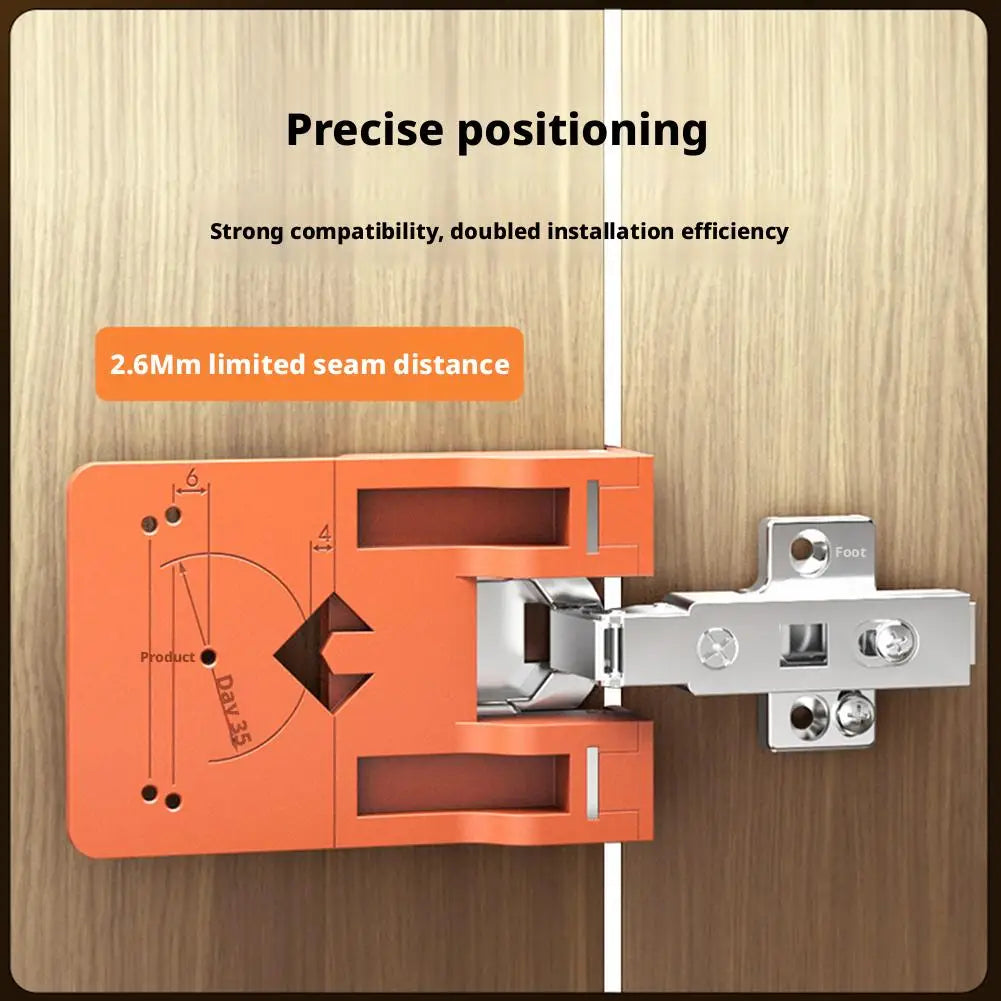

Precision 2.6mm Gap Alignment: Engineered specifically for a consistent 2.6mm cabinet door gap, ensuring clean, aesthetically pleasing alignments on every installation — no measuring, no guessing.

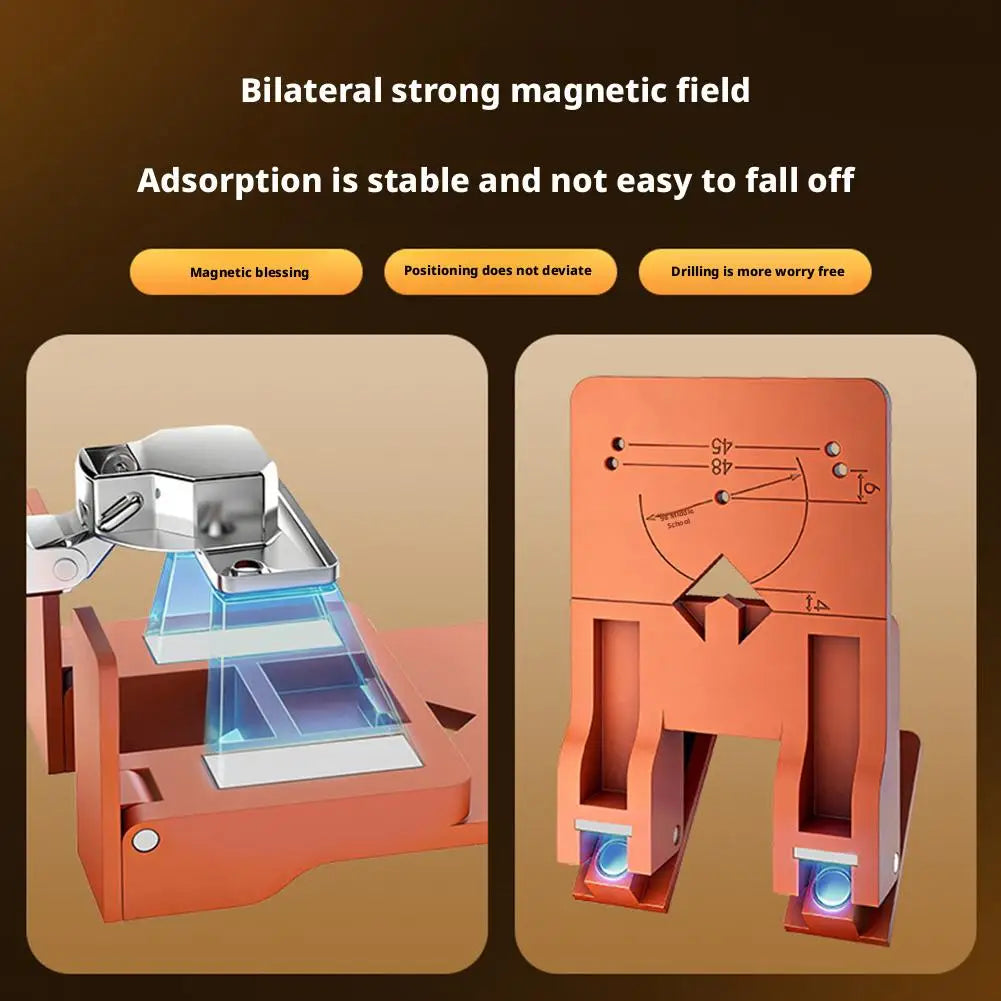

Double-Sided Magnetic Grip: Powerful built-in double-sided magnets clamp securely to your workpiece, preventing any shifting during drilling. Accurate hole positioning is guaranteed every single time.

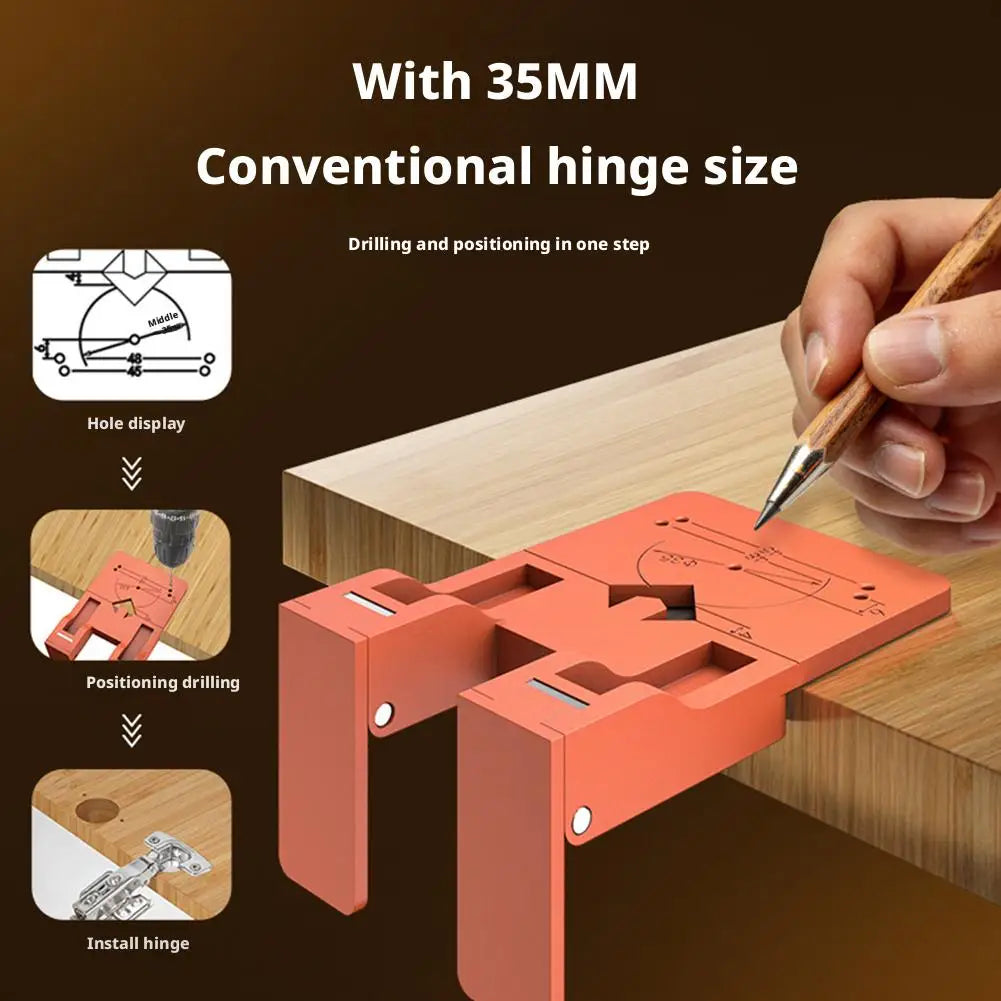

Universal 35mm Hinge Compatibility: Designed for standard 35mm hinges and features an extended backing plate that accommodates both full overlay (straight arm) and half overlay (mid-bend) hinge types — one tool for all your cabinet door needs.

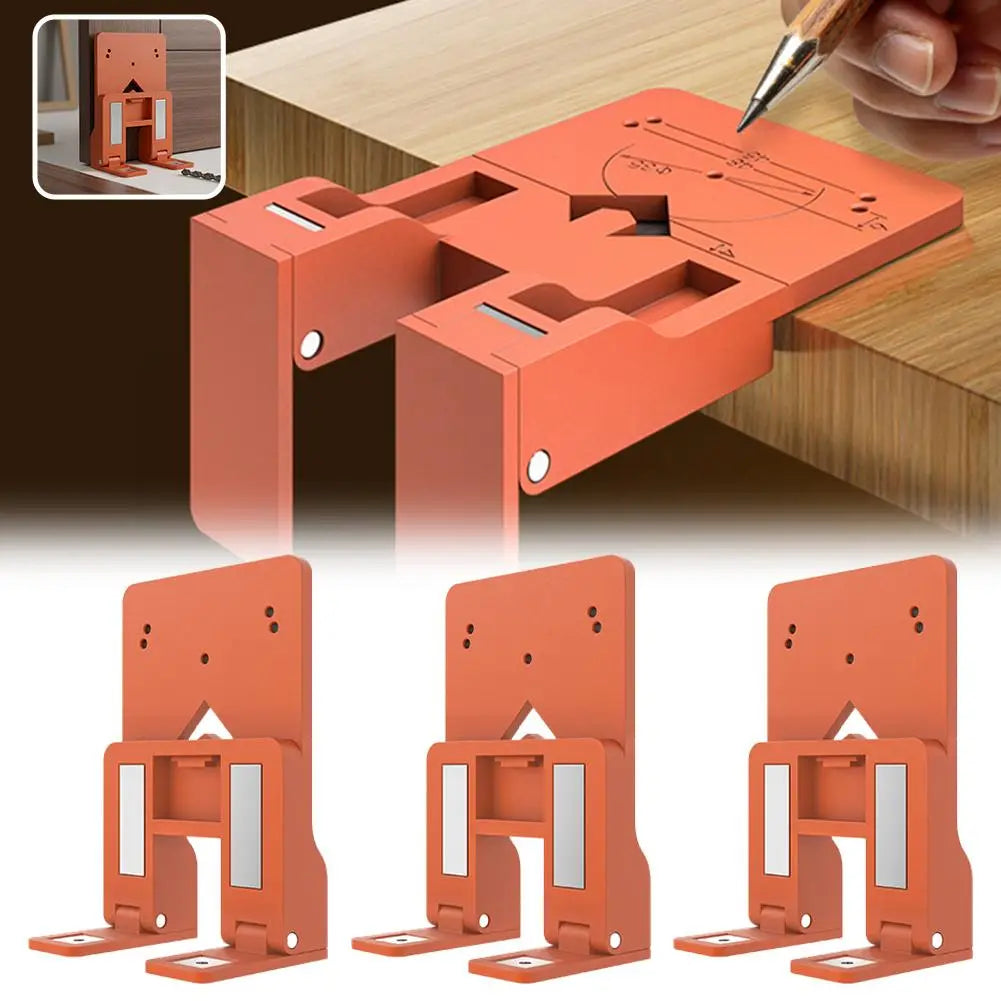

One-Step Drill & Position: The precise slotting system combined with magnetic stability means you can drill and position in a single step, dramatically improving efficiency for both professionals and DIYers.

Specifications

Brand: KITPIPI
Material: ABS Plastic
Dimensions: 6.6 × 4.41 × 9.97 cm / 2.6 × 1.73 × 3.92 inches
Gap Setting: 2.6mm
Hinge Size Compatibility: 35mm conventional hinges
Hinge Types: Full overlay, Half overlay
Package Contents: 1 × Magnetic Fixing Plate Hinge Jig

Who Is This For?

This hinge mounting auxiliary tool is ideal for:

Cabinet makers and furniture builders
Home renovation and remodeling projects
DIY hobbyists upgrading kitchen or bathroom cabinets
Contractors and carpenters seeking faster, more consistent installs

Safety & Standards

For guidance on safe tool use and workshop best practices, visit the U.S. Occupational Safety and Health Administration (OSHA) Woodworking Safety page.

Frequently Asked Questions

Q: What hinge sizes is the Magnetic Fixing Plate Hinge Jig compatible with?

A: This hinge installation jig is designed for standard 35mm cabinet door hinges. Its extended backing plate design also makes it compatible with both full overlay (straight arm) and half overlay (mid-bend) hinge styles, making it a versatile solution for most cabinet door hinge installations.

Q: How do the double-sided magnets help during cabinet hinge installation?

A: The powerful double-sided magnets grip firmly to your workpiece, keeping the jig locked in place while you drill. This prevents the tool from slipping or shifting, which ensures accurate hole positioning and eliminates the need for clamps or extra hands — simplifying your cabinet hinge mounting process significantly.

Q: Is this hinge jig suitable for beginners and DIY enthusiasts?

A: Absolutely. The KITPIPI Magnetic Fixing Plate is designed with ease of use in mind. Its intuitive one-step drill-and-position system means even first-time users can achieve precise, professional-looking cabinet door hinge installations without prior woodworking experience.

Q: What material is the fixing plate made from, and how durable is it?

A: The jig is made from high-quality ABS (Acrylonitrile Butadiene Styrene) plastic, a tough and impact-resistant material commonly used in professional-grade tools. It is built to withstand regular workshop use and maintain its shape and accuracy over time.
