Matek Mini Power Hub PDB Distribution Board BEC 5V 12V FPV Quadcopter
China Mainland
$13.99
Sale price
$13.99
Regular price
$17.33
Skip to product information
OOTDTY
brand new and high quality

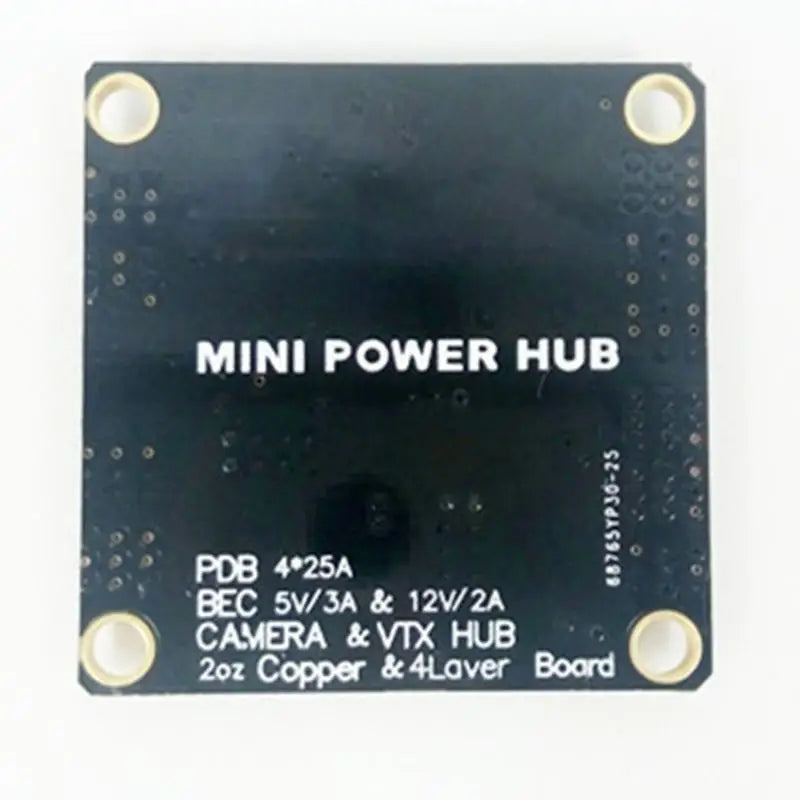

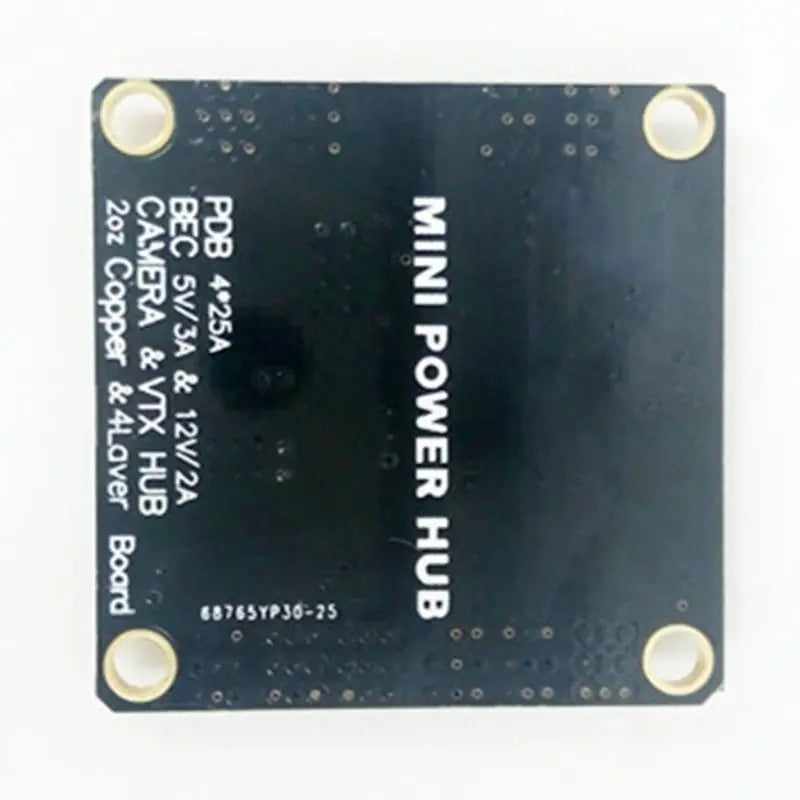

2oz copper 4-layer PCB, a large current.
Dual Synchronous Step-Down BEC, 5V continued 3A, 12V continuous 2A (maximum 3A) output.
Battery power transfer pads arranged in pairs, easy to wire.
Illustrated and camera multiple-choice, set line.
BEC inputs are TVS against the impact of when the battery chip.
Specifications:
Input (3S-6S operation): 9 26VDC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs

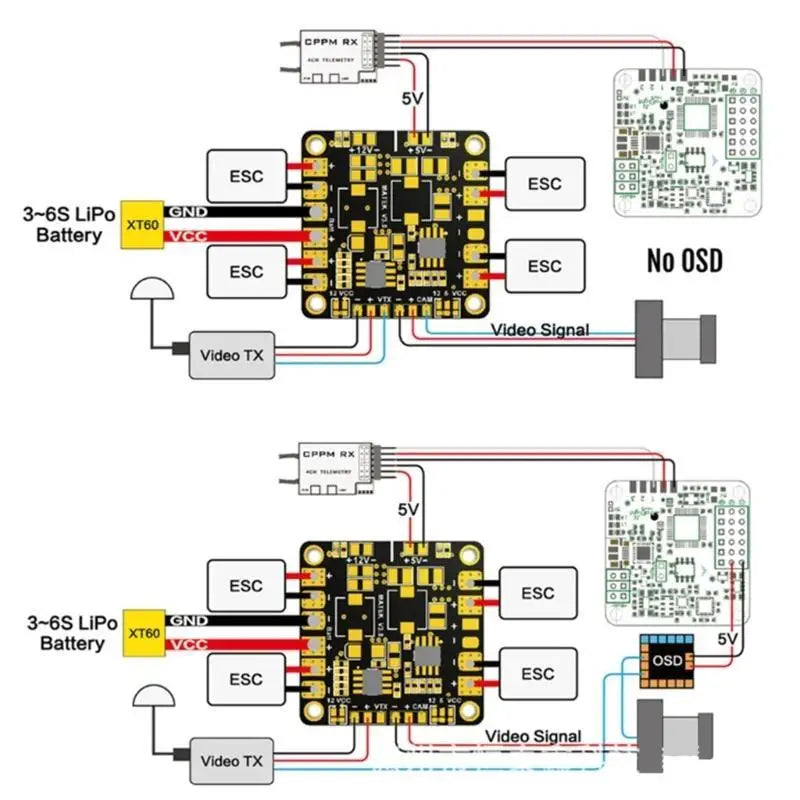

4 ESC outputs
ESC outputs:
Continuous current: 20A per output
current (10 seconds 25A per output
BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
synchronous regulator, Efficiency is up to 95%.
5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds
LED (indicates is in regulation)
BEC 12V output:
The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters
12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s
Short-circuit tolerant (10 seconds
LED (indicates is in regulation)

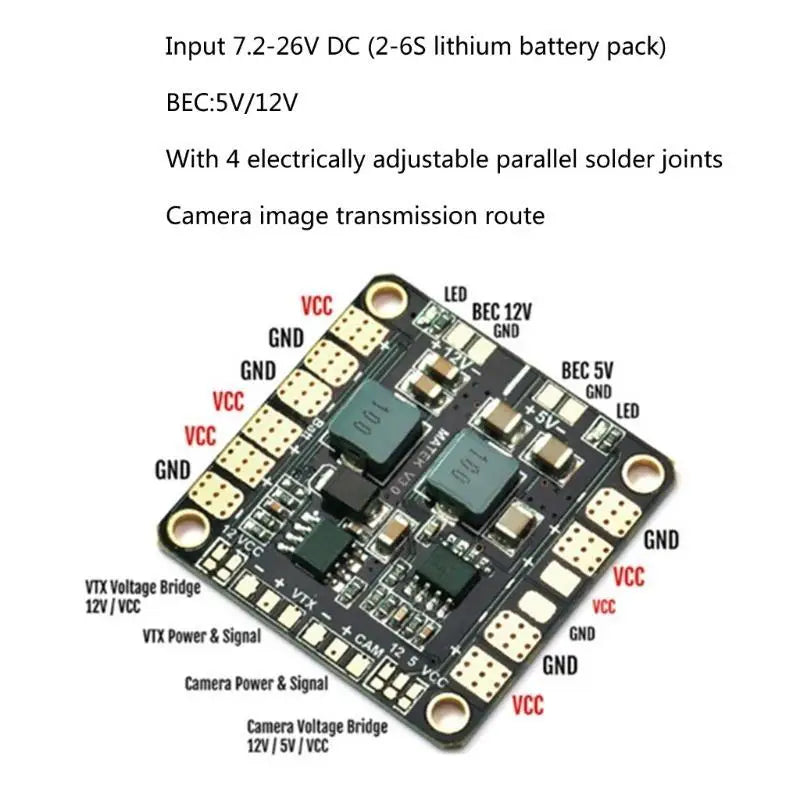

& bridge
3S operation. choose “VCC” for 12V camera & 12V VCC=Battery
4~6S operation, choose “12” for 12V camera & 12V
3~6S operation, choose “5” for 5V camera
Video pass through from the pad to the pad
Physical:

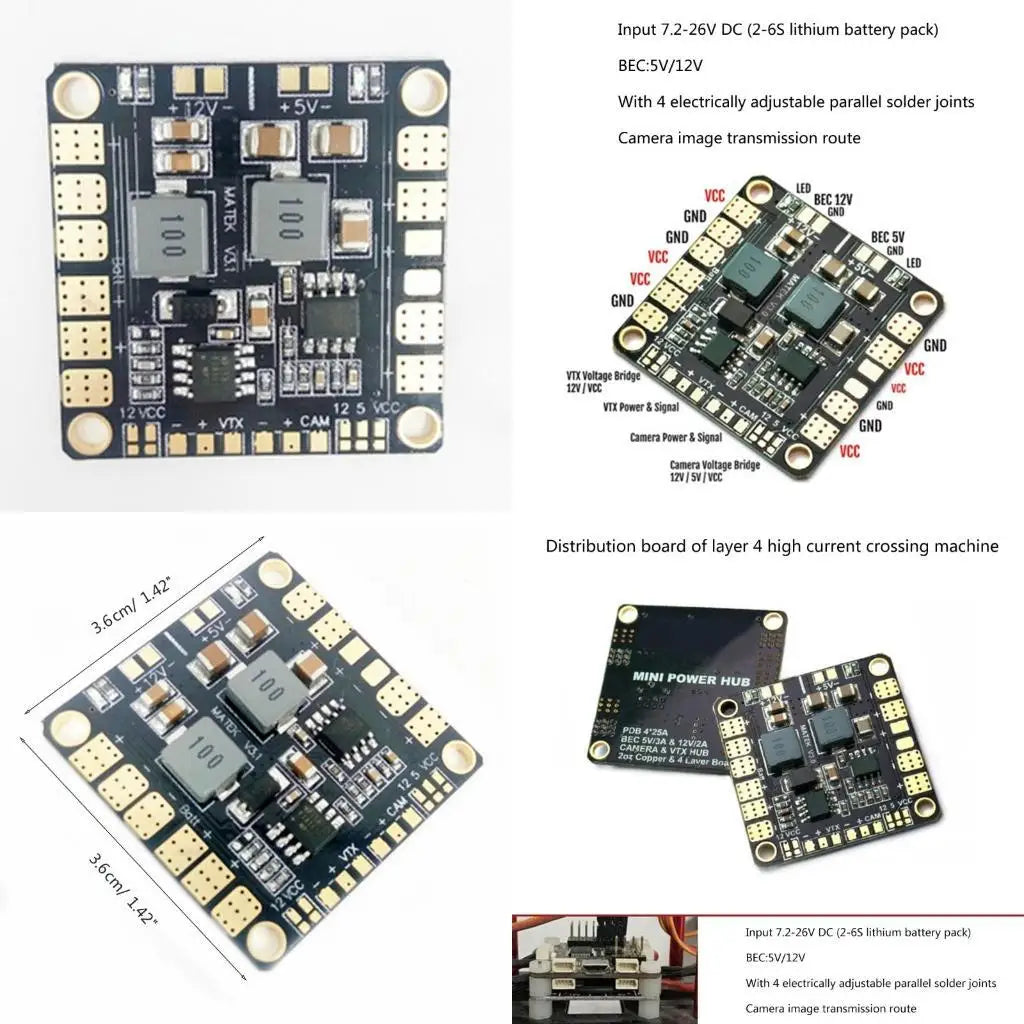

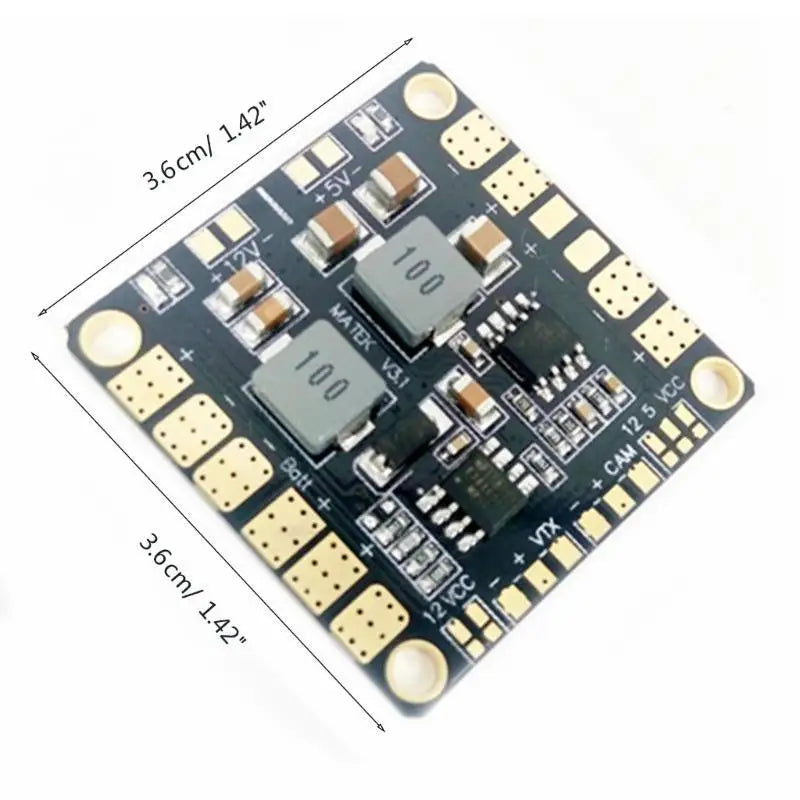

Dimensions: 36 x 36mm
Weight: 6g
Mounting holes 30.5mm square spacing
Package Includes:
1 x Power Distribution Board
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Matek Mini Power Hub PDB Distribution Board BEC 5V 12V FPV Quadcopter
$13.99
Sale price
$13.99
Regular price
$17.33
Discover the Matek Mini Power Hub PDB Distribution Board BEC 5V 12V FPV Quadcopter, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: XINYUANSHUNTONG
Certification: CE
Dimensions: 36 x 36mm
Model Number: Distribution board
Package: Yes
Size: -
Weight: 12g,6g
semi_Choice: yes
Features:OOTDTY
brand new and high quality
2oz copper 4-layer PCB, a large current.
Dual Synchronous Step-Down BEC, 5V continued 3A, 12V continuous 2A (maximum 3A) output.
Battery power transfer pads arranged in pairs, easy to wire.
Illustrated and camera multiple-choice, set line.
BEC inputs are TVS against the impact of when the battery chip.
Specifications:
Input (3S-6S operation): 9 26VDC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs
4 ESC outputs
ESC outputs:
Continuous current: 20A per output
current (10 seconds 25A per output
BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
synchronous regulator, Efficiency is up to 95%.
5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds
LED (indicates is in regulation)
BEC 12V output:
The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters
12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s
Short-circuit tolerant (10 seconds
LED (indicates is in regulation)
& bridge
3S operation. choose “VCC” for 12V camera & 12V VCC=Battery
4~6S operation, choose “12” for 12V camera & 12V
3~6S operation, choose “5” for 5V camera
Video pass through from the pad to the pad
Physical:
Dimensions: 36 x 36mm
Weight: 6g
Mounting holes 30.5mm square spacing
Package Includes:
1 x Power Distribution Board
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
