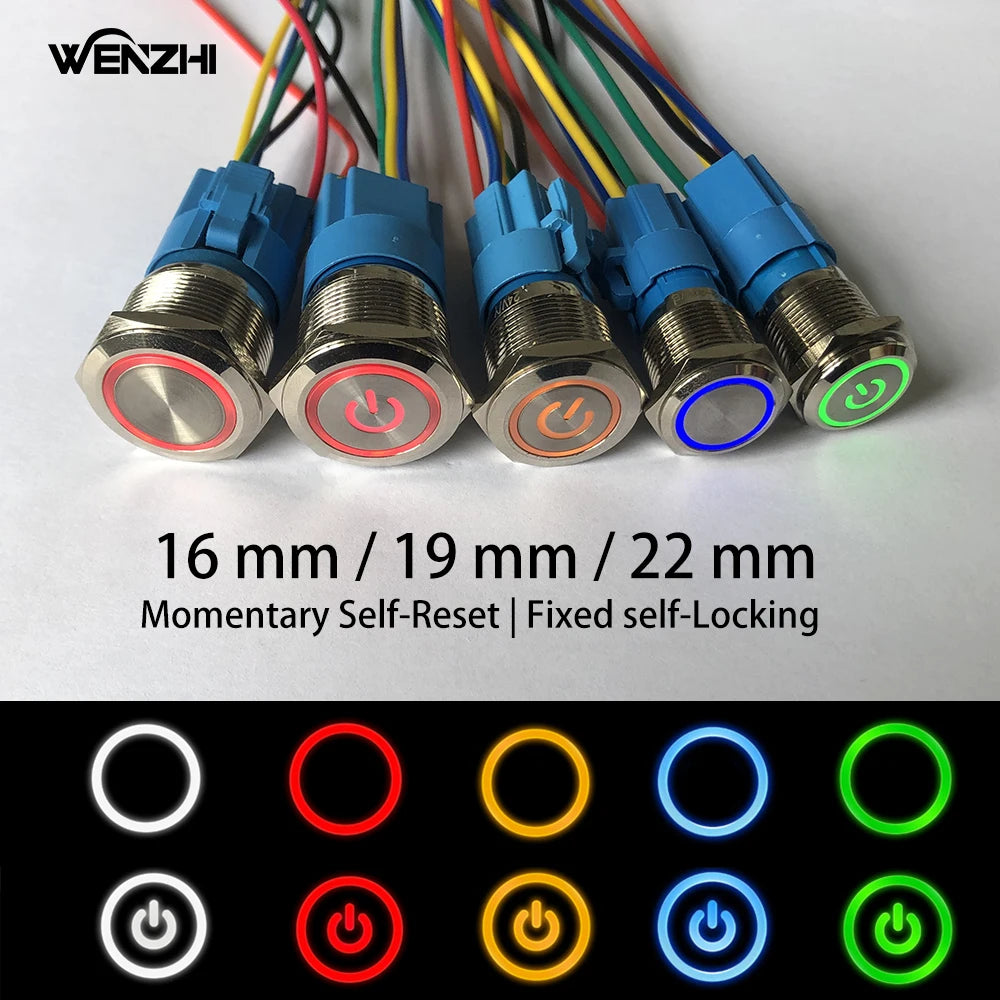

Metal Push Button Start Stop Power Off 5 12 220V Led Backlit

The Metal Push Button Start Stop Power Off 5 12 220V Led Backlit is a premium quality electronics accessories essential, designed for dependable everyday performance and lasting value.

Is Smart Device: no

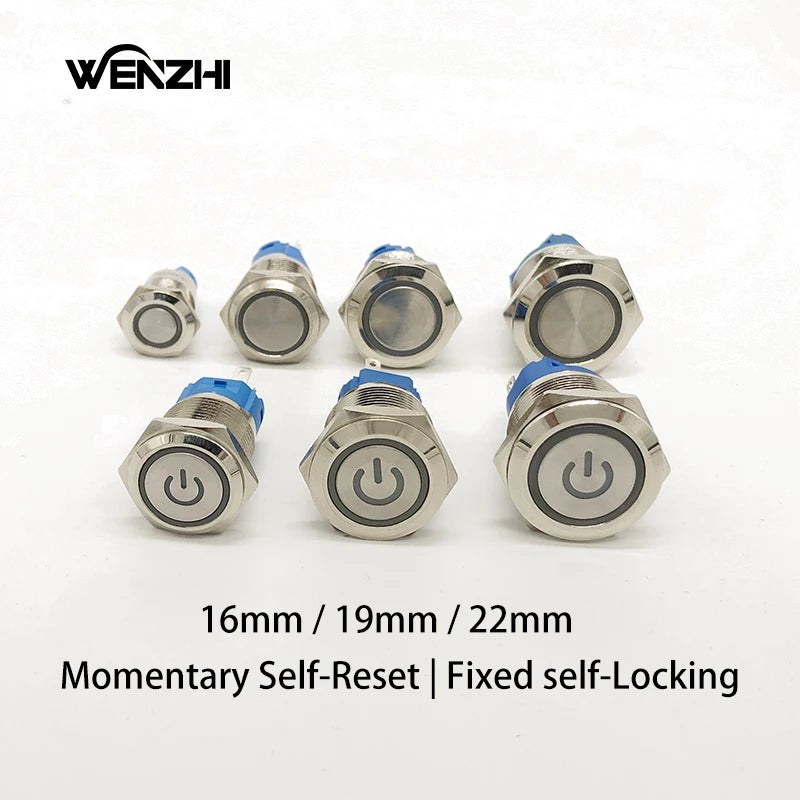

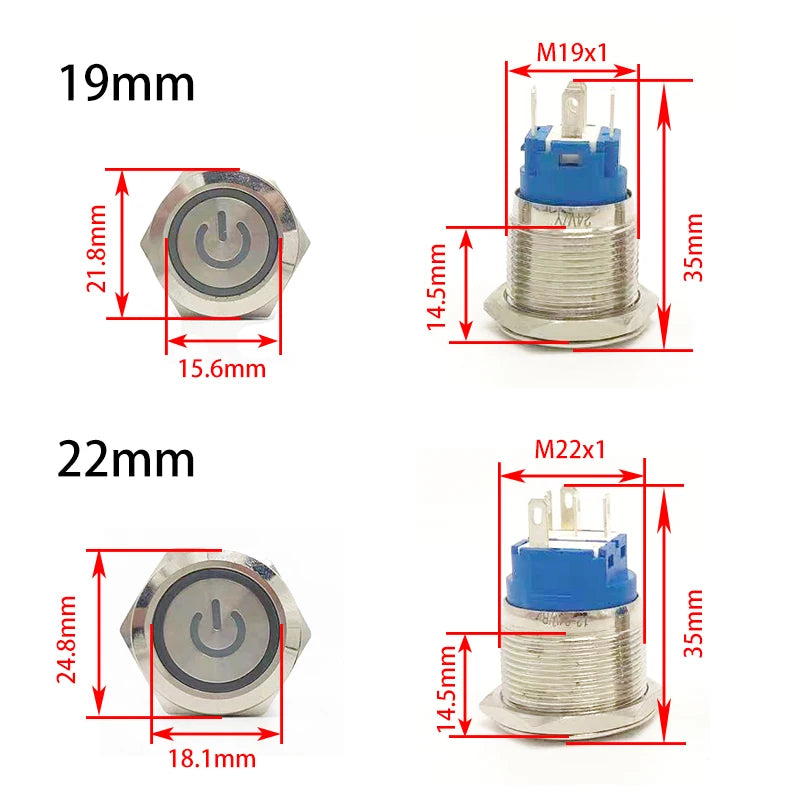

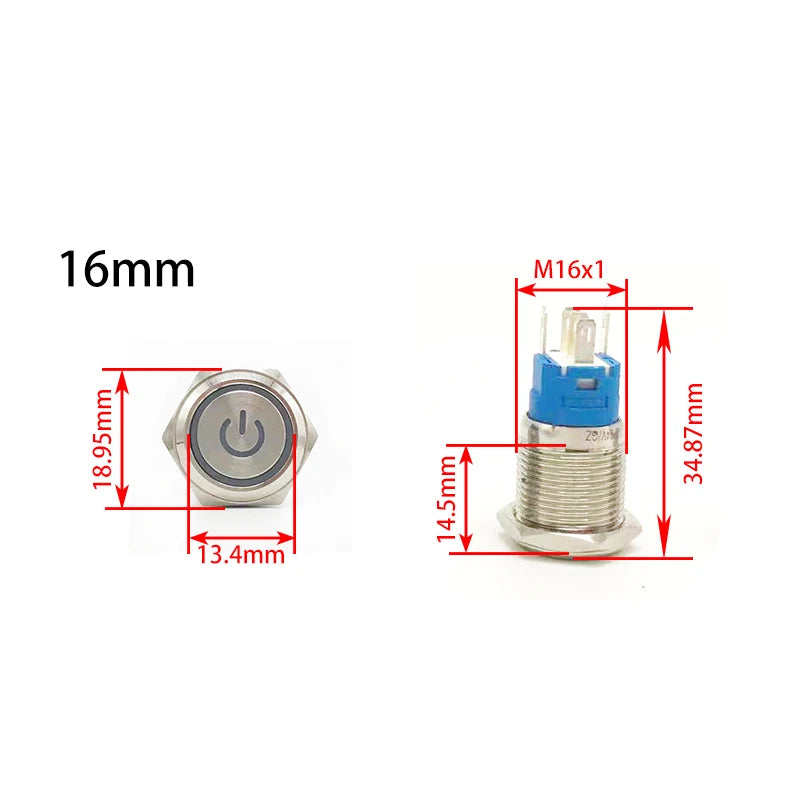

Size 16/19/22mm
Rating: 3-6V12-24V220V.
Please contact the Seller for customization.

NOTES:

1.What does the signal "NC" and "NO" means?

"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C ": Common

2.How to connect?

1.Connect " NO " and " C ": The circuit is alway open unless press the button.
2.Connect " NC " and " C ": The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal rin

16/19/22 MM Wiring Diagram1:

Light: Not Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram2:

Light: Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram3:

Light: Working
Switch: closed
When you Pess the button, light: Not Working & Switch: Opened.

16/19/22 MM Wiring Diagram4:

Light: Working
Switch: closed
When you Pess the button, light: Working & Switch: Opened.

This piece is crafted from copper.

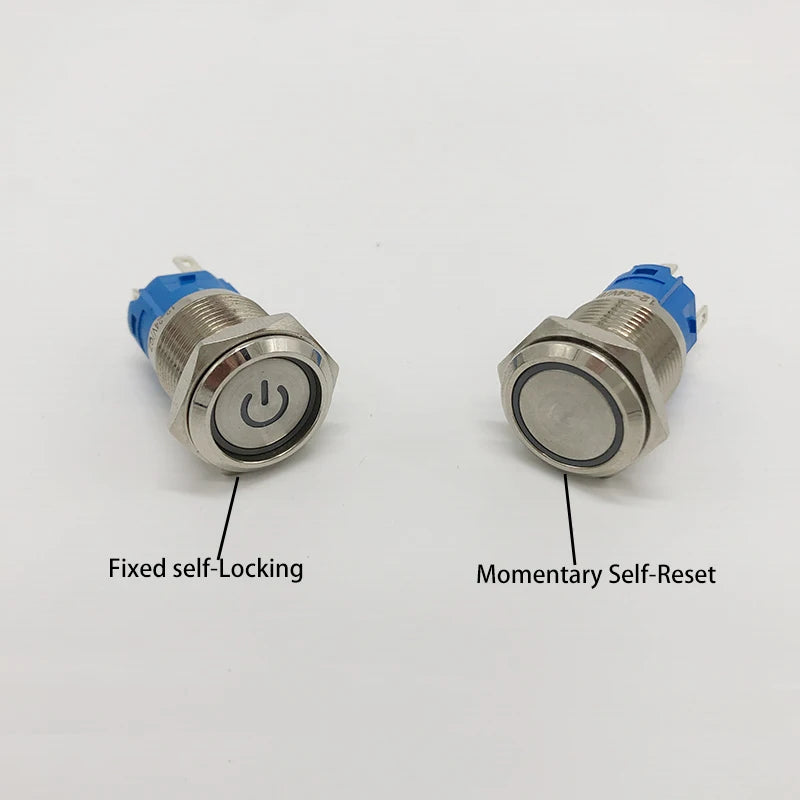

Choose from 11 color options (WHITE LED, GREEN POWER LED, GREEN LED, BLUE POWER LED, SOCKET, WHITE POWER LED, RED POWER LED, RED LED, and more), 3 size options (19mm, 22mm, 16mm) and 6 ships from|voltage|standard options (China Mainland|220V(220V)|Momentary Self-Reset, China Mainland|3-6V(5V)|Fixed self-Locking, China Mainland|3-6V(5V)|Momentary Self-Reset, China Mainland|12-24V(12V)|Momentary Self-Reset, China Mainland|12-24V(12V)|Fixed self-Locking, China Mainland|220V(220V)|Fixed self-Locking).

Shop the Metal Push Button Start Stop Power Off 5 12 220V Led Backlit today — your go-to electronics accessories pick for metal, push, button, start and more.

You may also like: Digital Temperature Controller Thermostat Thermoregulator, Supermini ESP32-H2 Development Board Microcontroller and SR501 SR201 Solar Water Heater Controller Silicon Level.

Frequently Asked Questions

Q: What is the Metal Push Button Start Stop Power Off 5 12 220V Led Backlit?

A: The Metal Push Button Start Stop Power Off 5 12 220V Led Backlit is a quality electronics accessories pick. Please contact the Seller for customization.

Q: What is the Metal Push Button Start Stop Power Off 5 12 220V Led Backlit made of?

A: The Metal Push Button Start Stop Power Off 5 12 220V Led Backlit is made from Copper.

Q: Why choose the Metal Push Button Start Stop Power Off 5 12 220V Led Backlit?

A: The Metal Push Button Start Stop Power Off 5 12 220V Led Backlit stands out in our electronics accessories range — "A" "+": positive pole of the led "LED" " - ": negative pole of the led " NC ": Normal Close " NO ": Normal Open " C ": Common 2.How to connect?
