Metal Start Stop Button Power 12 Volt Led Connected Switch Backlit

The Metal Start Stop Button Power 12 Volt Led Connected Switch Backlit is a premium quality electronics accessories essential, designed for dependable everyday performance and lasting value.

Is Smart Device: no

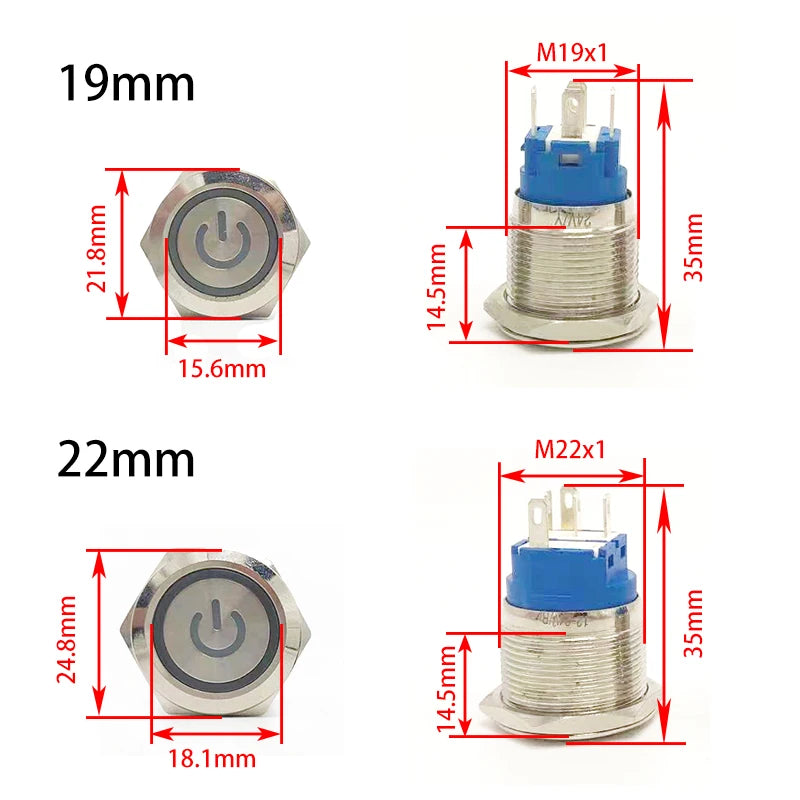

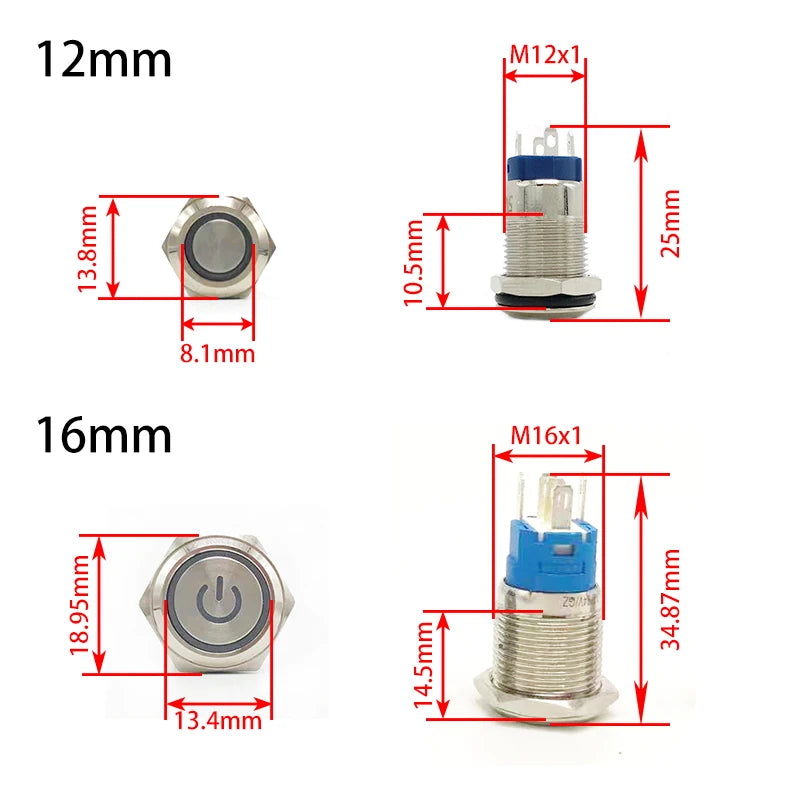

Size 16/19/22mm (5Pin)
Rating: 3-6V12-24V220V.
Please contact the Seller for customization.

NOTES:

1.What does the signal "NC" and "NO" means?

"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C ": Common

2.How to connect?

1.Connect " NO " and " C ": The circuit is alway open unless press the button.
2.Connect " NC " and " C ": The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal rin

16/19/22 MM Wiring Diagram1:

Light: Not Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram2:

Light: Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.

16/19/22 MM Wiring Diagram3:

Light: Working
Switch: closed
When you Pess the button, light: Not Working & Switch: Opened.

16/19/22 MM Wiring Diagram4:

Light: Working
Switch: closed
When you Pess the button, light: Working & Switch: Opened.

This piece is crafted from iron.

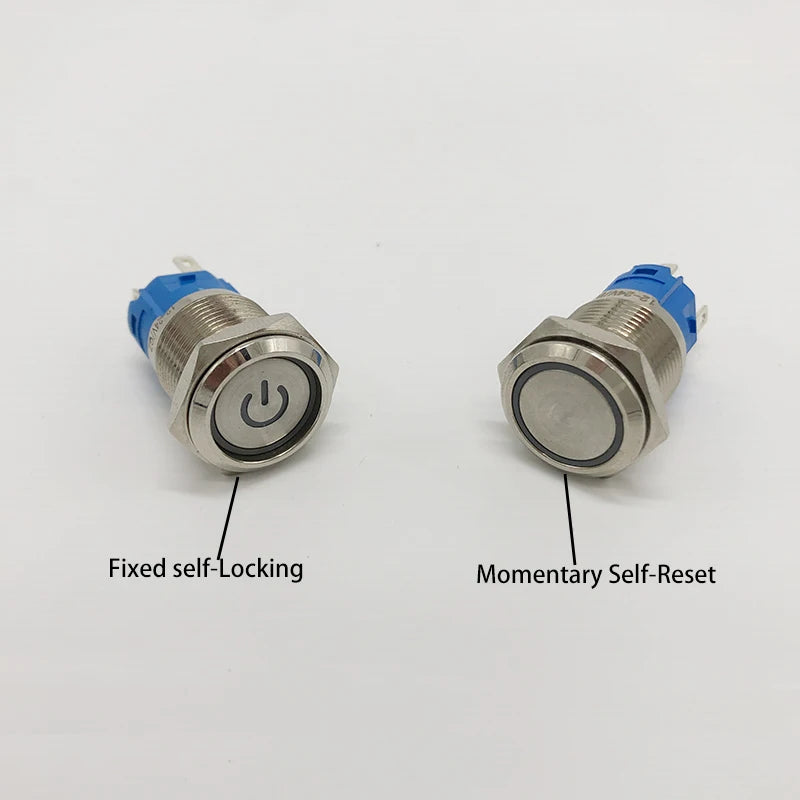

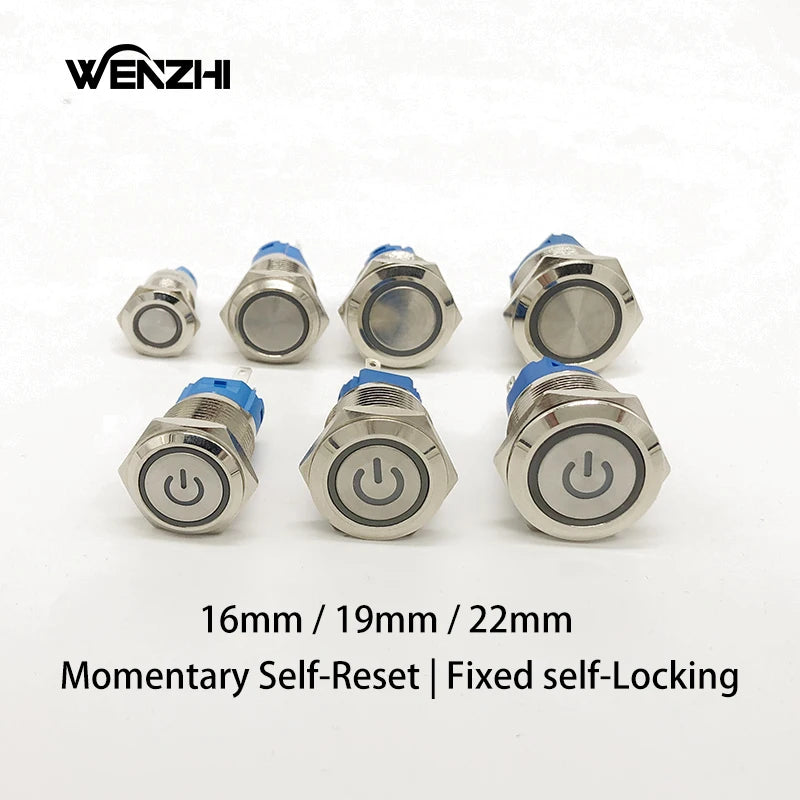

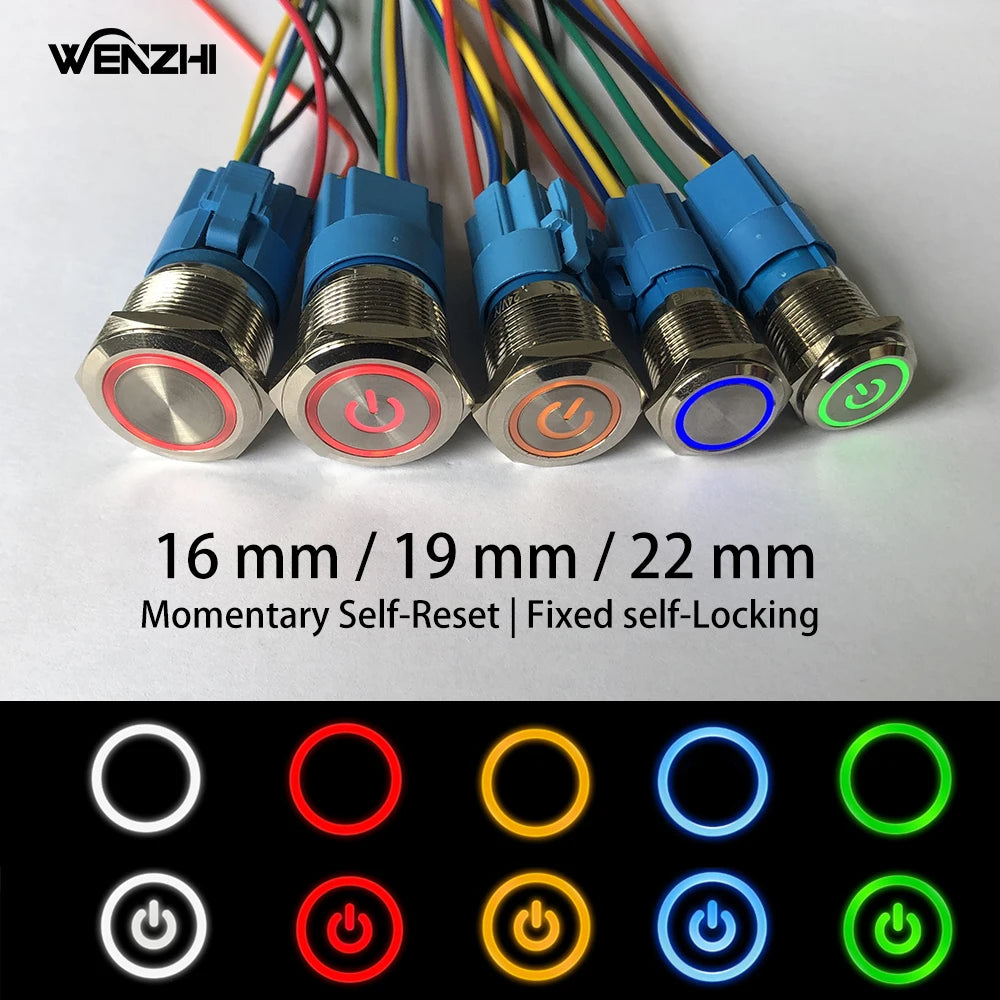

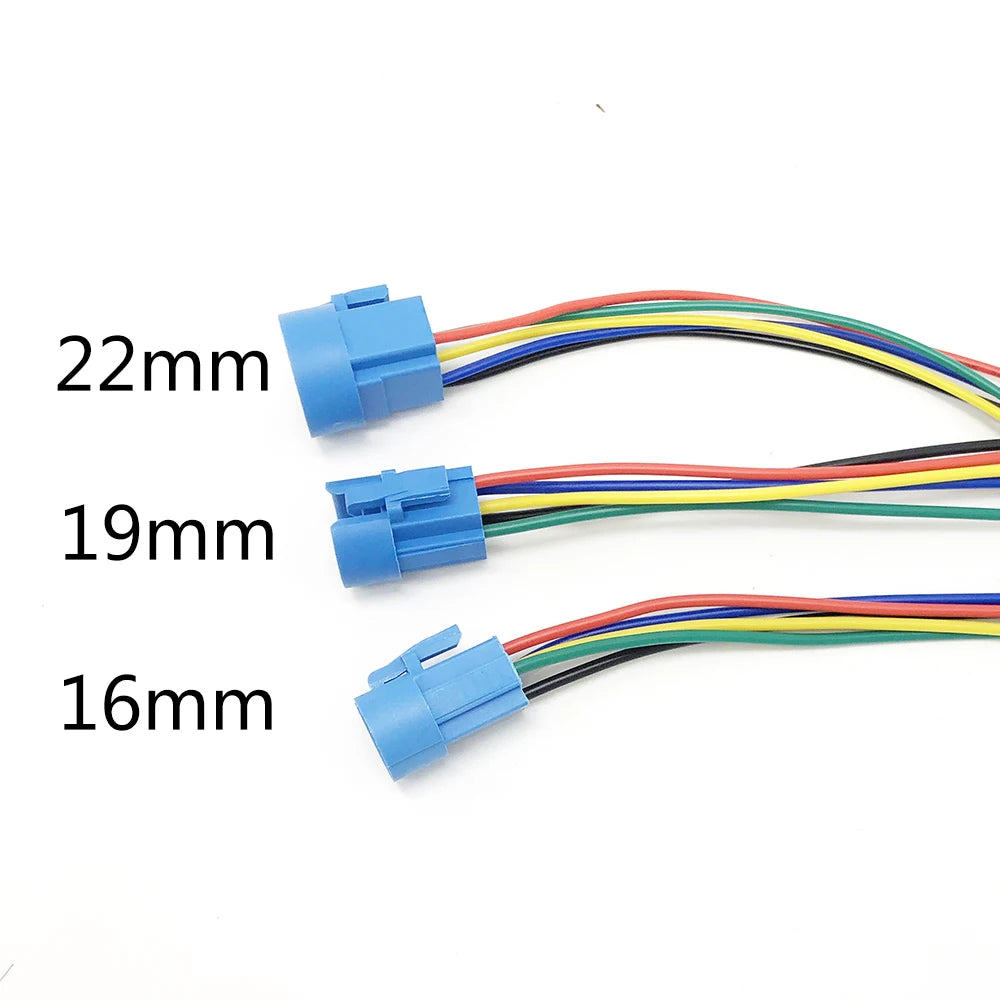

Choose from 11 color options (SOCKET, WHITE POWER LED, BLUE POWER LED, BLUE LED, YELLOW POWER LED, YELLOW LED, RED POWER LED, WHITE LED, and more), 3 size options (22mm, 19mm, 16mm) and 6 ships from|voltage|standard options (China Mainland|220V(220V)|Fixed self-Locking, China Mainland|3-6V(5V)|Fixed self-Locking, China Mainland|12-24V(12V)|Fixed self-Locking, China Mainland|12-24V(12V)|Momentary Self-Reset, China Mainland|220V(220V)|Momentary Self-Reset, China Mainland|3-6V(5V)|Momentary Self-Reset).
