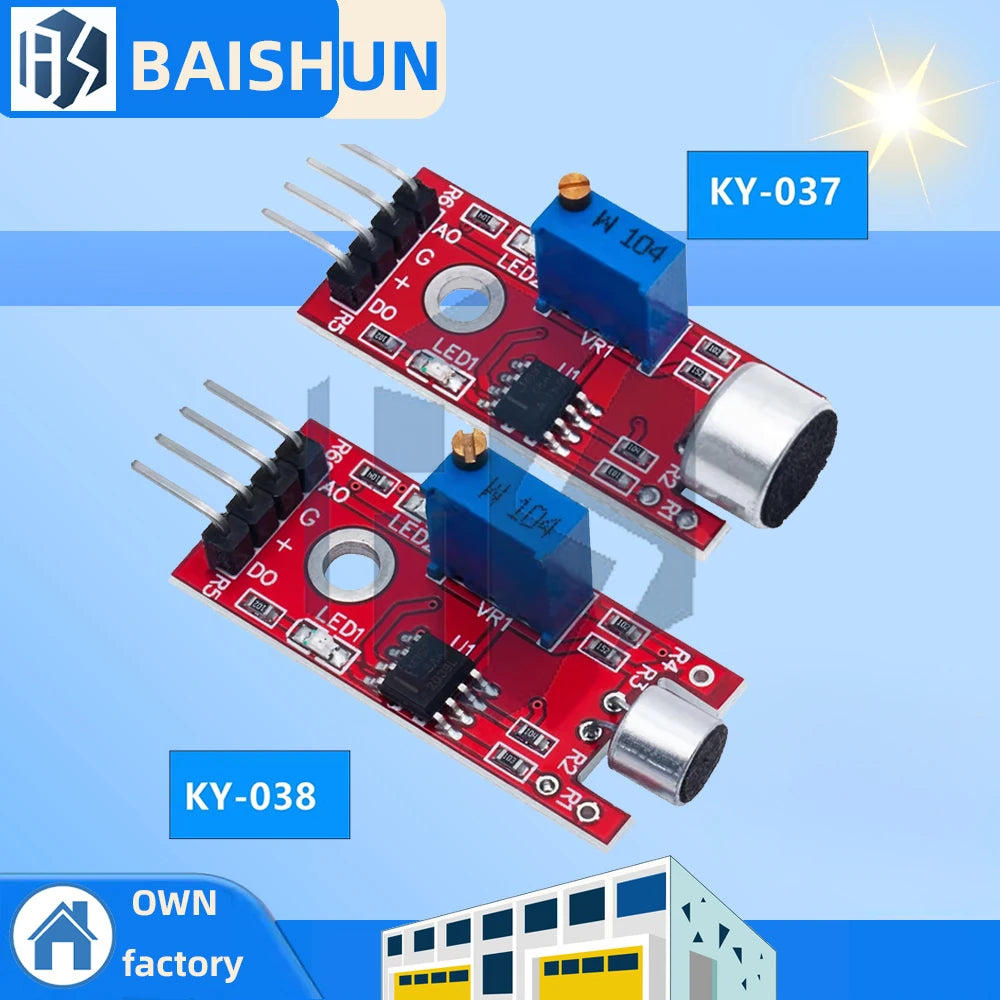

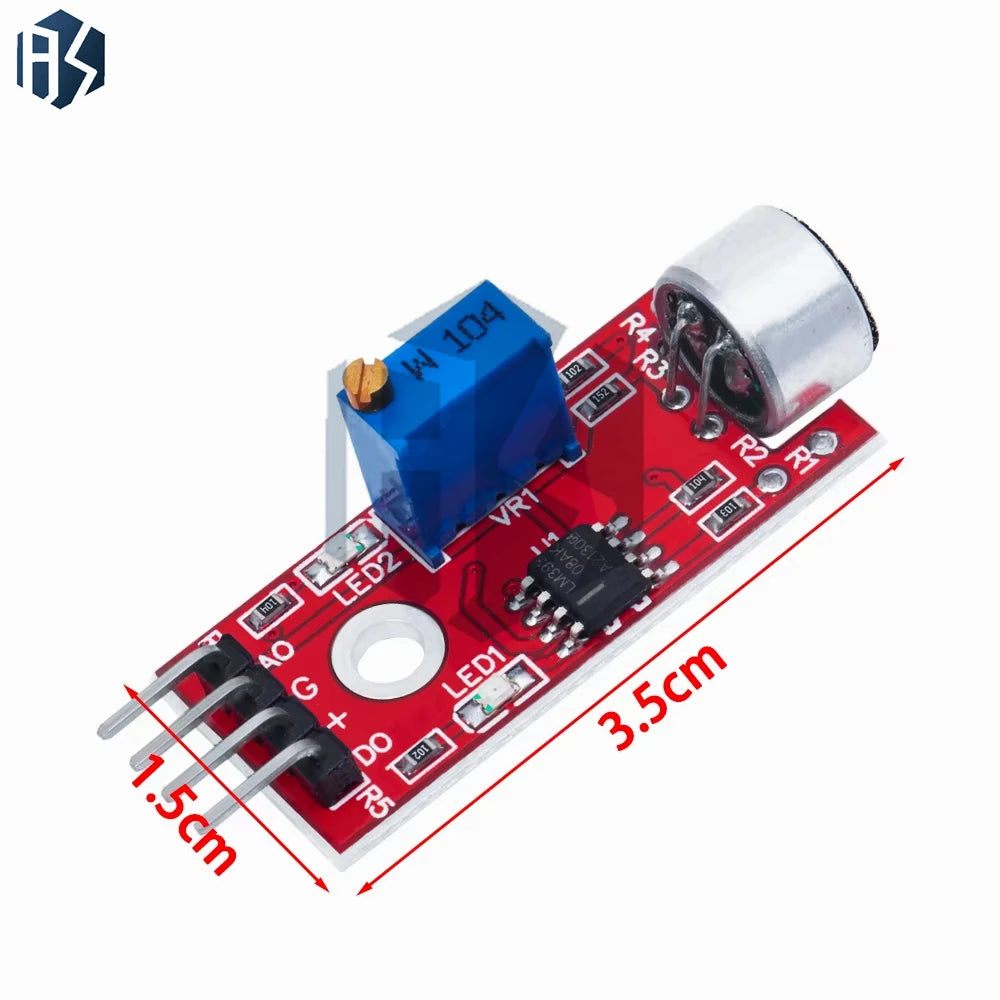

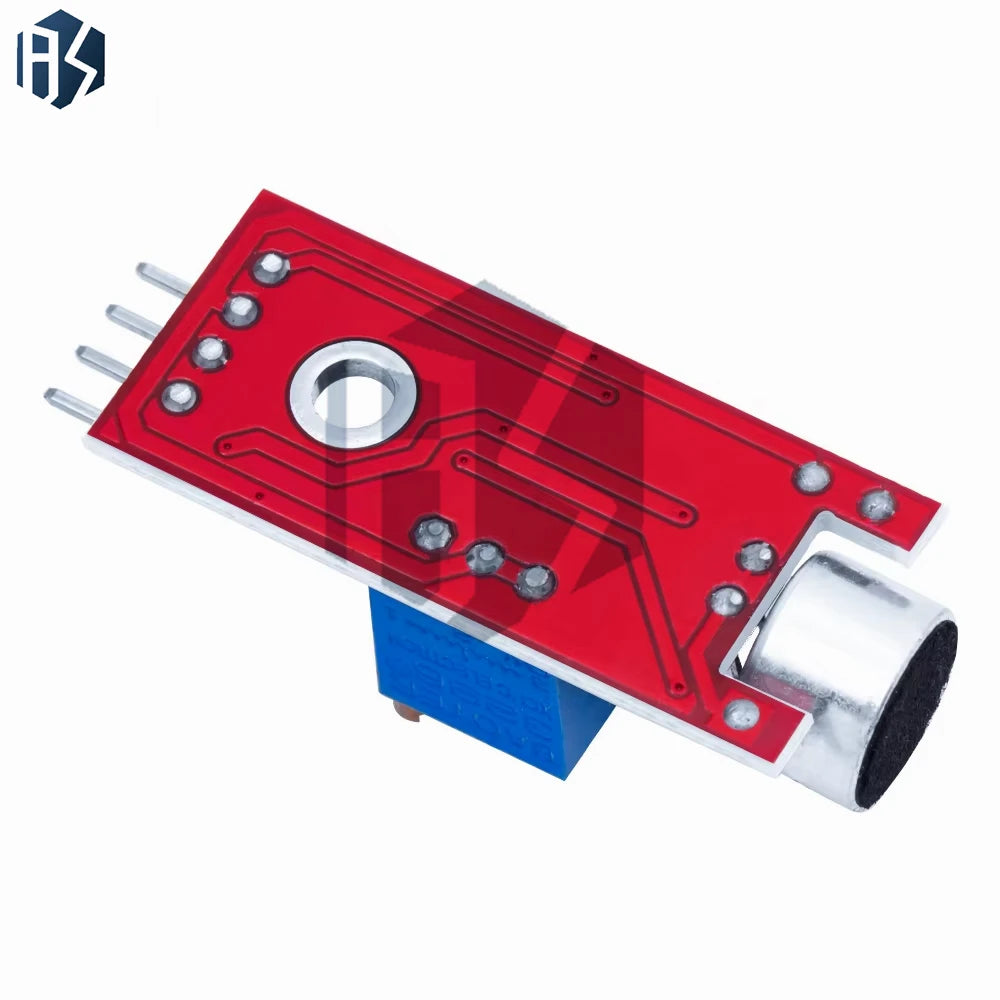

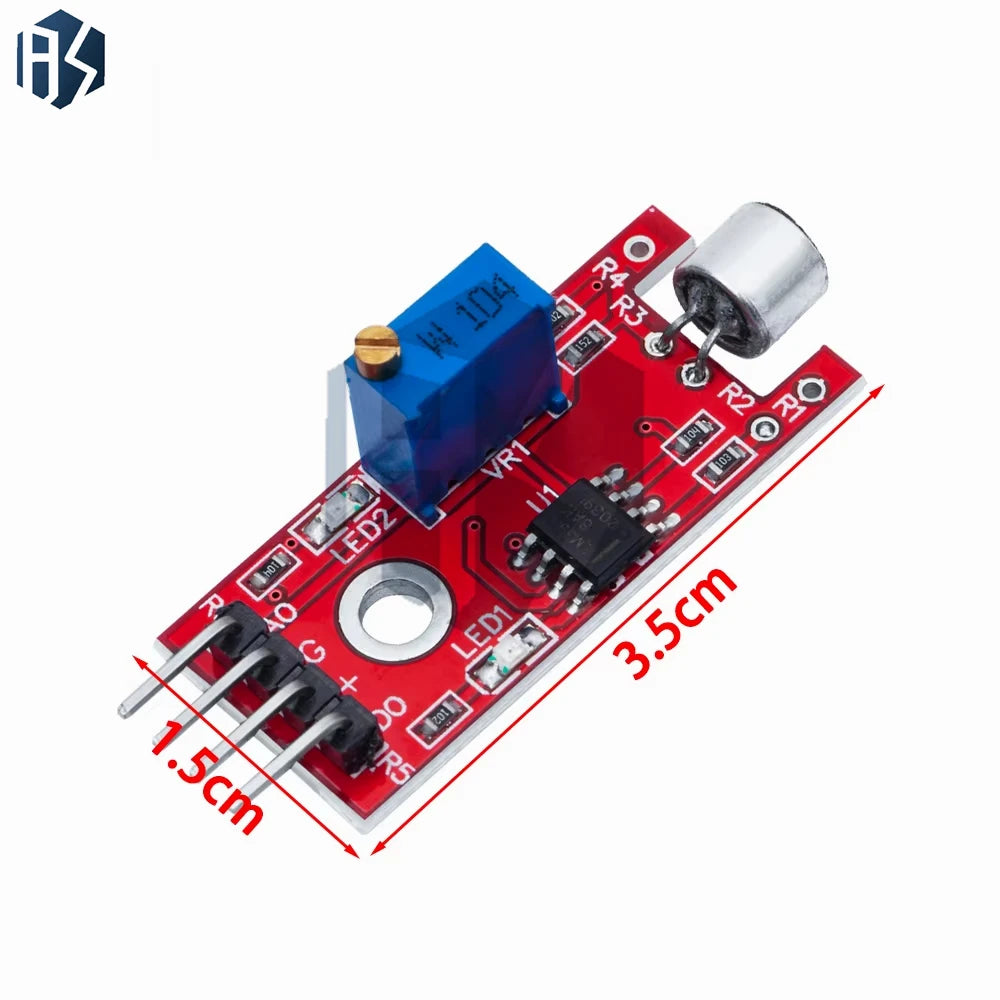

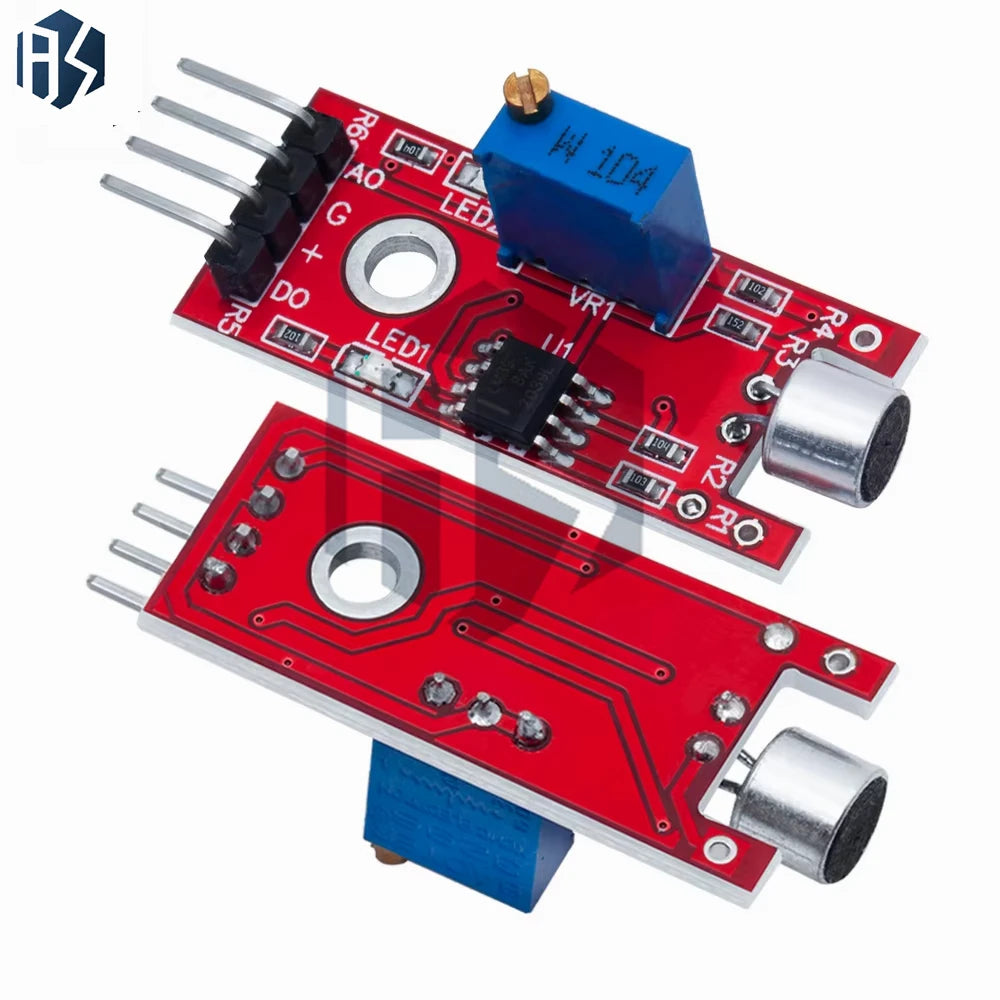

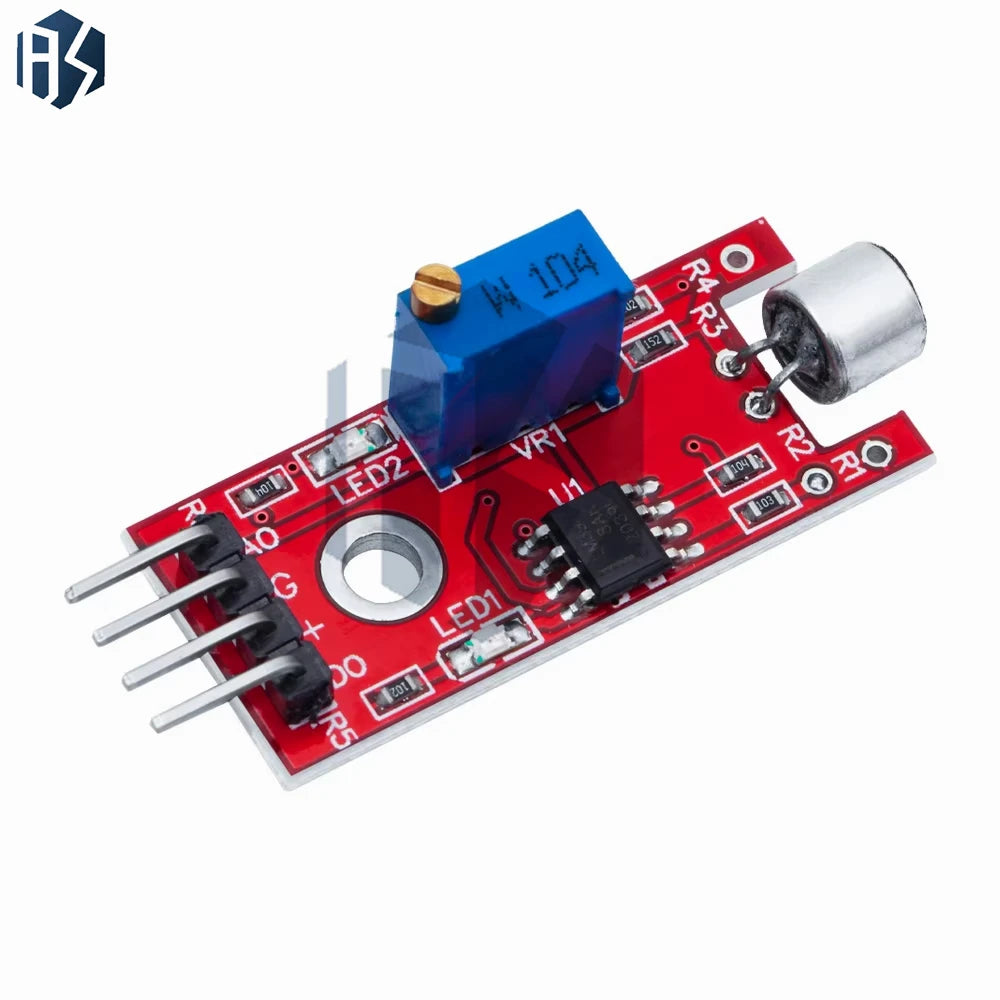

Microphone Voice Sound Sensor Detection Module Arduino AVR PIC Analog

The Microphone Voice Sound Sensor Detection Module Arduino AVR PIC Analog is a premium quality decor essential, designed for dependable everyday performance and lasting value.

is_customized: Yes

semi_Choice: yes

For sound detection module has two outputs:

1. AO, analog output, real-time output voltage signal of the microphone

2. DO, when the sound intensity reaches a certain threshold, the output high and low signal

Module features:

1. there is a mounting screw hole 3mm

2. the use 5v DC power supply

3. with analog output

4. there are threshold level output flip

5. high sensitive microphone and high sensitivity.

6. a power indicator light

7. the comparator output is light

Digital Output:

int Led=13;//define LED interface

int buttonpin=3 //Define D0 Sensor Interface

int val;//define numeric variables val

void setup()

{

pinMode(Led,OUTPUT);// Define LED as output interface

pinMode(buttonpin,INPUT);//Define D0 Sensor as output Interface

}

void loop()

{

val=digitalRead(buttonpin);//digital interface will be assigned a value of 3 to read val

if(val==HIGH)//When the light sensor detects a signal is interrupted, LED flashes

{

digitalWrite(Led,HIGH)

}

else

{

digitalWrite(Led,LOW)

}

}

2.Analog Output:

int sensorPin = A5; // select the input pin for the potentiometer

int ledPin = 13; // select the pin for the LED

int sensorValue = 0; // variable to store the value coming from the sensor

void setup() {

pinMode(ledPin, OUTPUT);

Serial.begin(9600);

}

void loop() {

sensorValue = analogRead(sensorPin);

digitalWrite(ledPin, HIGH);

delay(sensorValue);

digitalWrite(ledPin, LOW);

delay(sensorValue);

Serial.println(sensorValue, DEC);

}

Microphone Voice Sound Sensor Module For Arduino

This is microphone voice sound sensor module for Arduino
Model: KY-038
Adopt LM393 main chip
Electric condenser microphone
Features Single channel signal output
Low level output signal used for sound control light
Great module for sound alarm system
Working voltage: For DC 4-6V

Interface definition:

AO: analog output sensor
GND: ground
VCC: Power supply input range: 3V-24V.
DO: Digital Output (comparator output)
Two red LED indication: POWER and SENSOR. POWER: Power is off. SENSOR:
When the microphone senses sound reaches a certain value, this LED light.

Package included:

1 x Voice sound sensor module

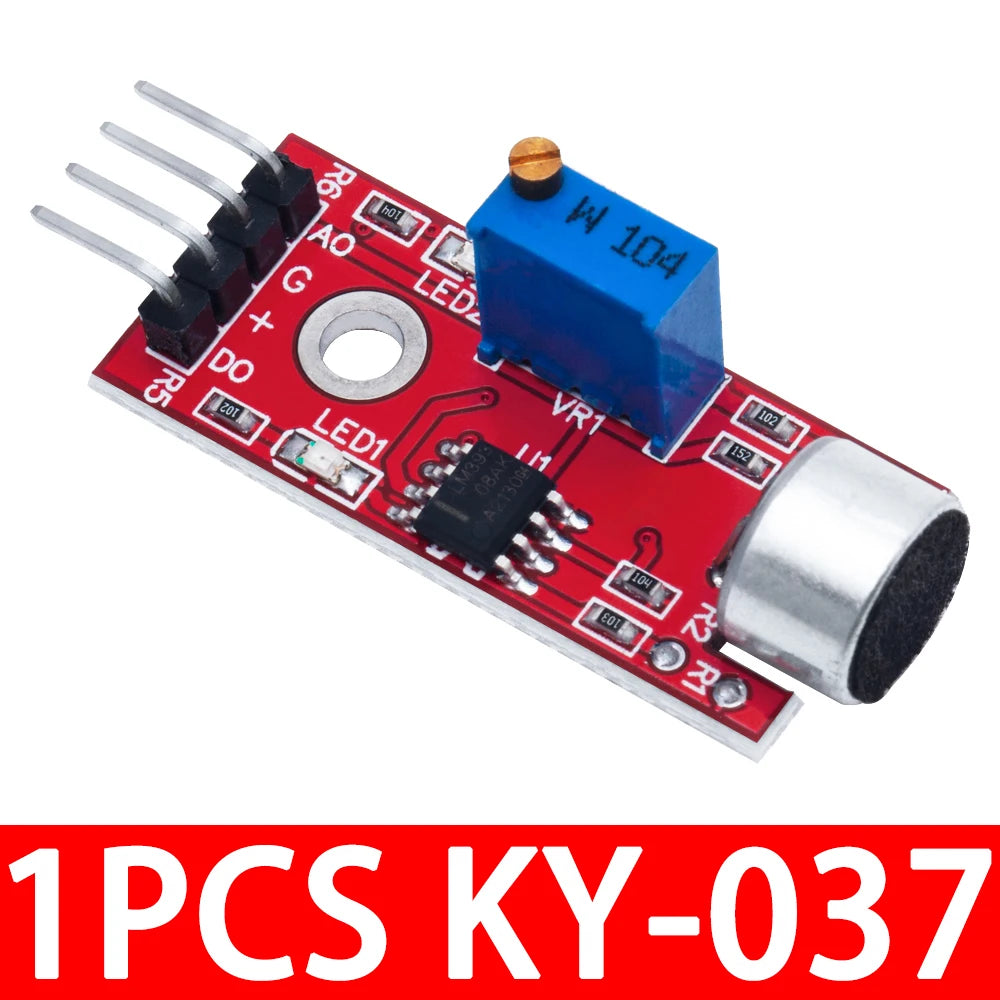

Choose from 6 color options (1PCS ky-037, 1PCS ky-038, 10PCS ky-038F, 10PCS ky-037, 5PCS ky-038, 5PCS ky-037).

Each order includes SMD.
