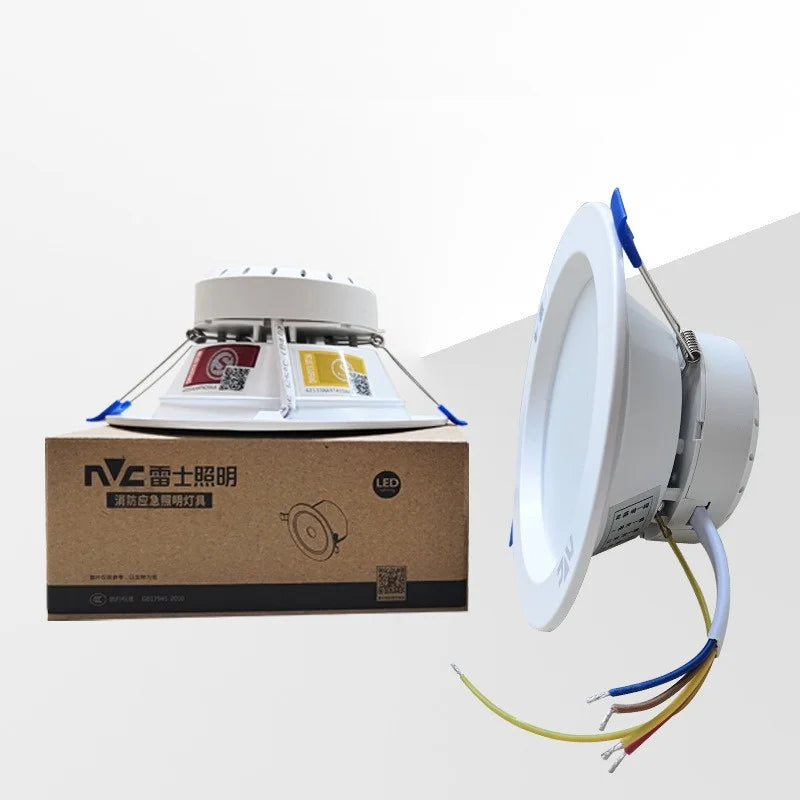

Stay Illuminated When It Matters Most – SHINEKNOT LED Emergency Downlight

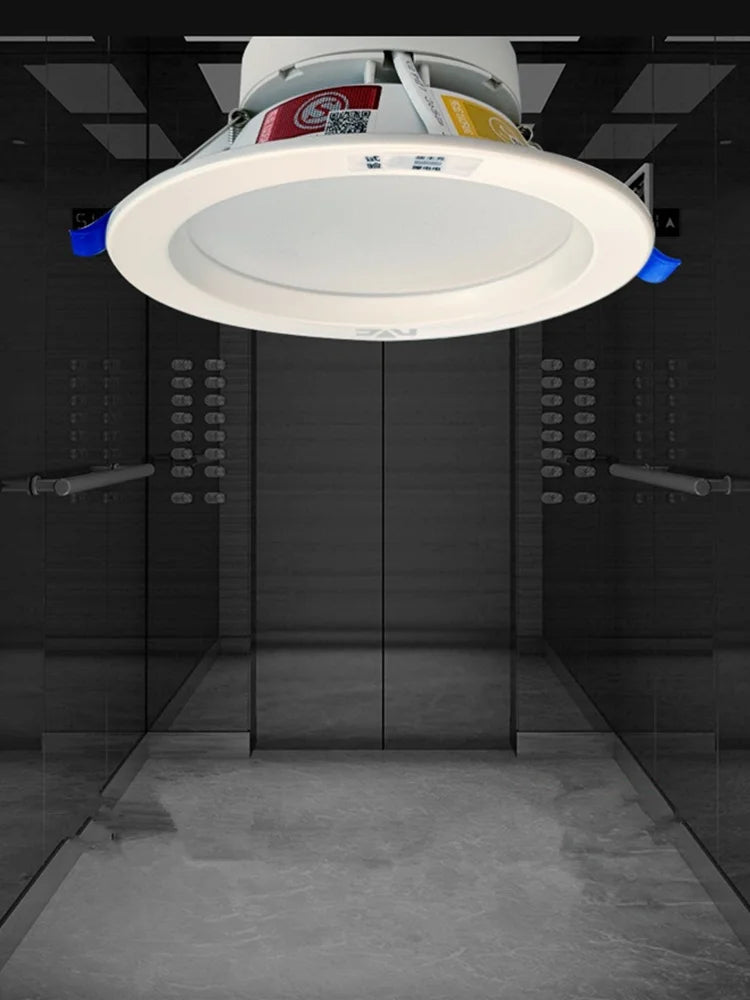

The SHINEKNOT Emergency Recessed LED Downlight is a dual-purpose ceiling fixture that functions as both a standard recessed light and an automatic emergency light. When mains power is interrupted, the built-in rechargeable battery kicks in instantly, keeping your space safely lit — ideal for homes, offices, hallways, stairwells, and commercial buildings operating on AC 200–240V networks.

With UL, CE, and CCC certifications, a 3-year warranty, and a robust ABS body, this is a high-quality, long-lasting solution for dependable backup lighting.

Made in Mainland China.

Key Features

Automatic Emergency Mode: Detects power failure and switches on instantly — no manual intervention needed.
Dual-Function Wiring: Use in emergency-only mode OR emergency + standard lighting mode via switch control.
High-Brightness LED: Luminous flux of 249–2000 lm for clear, wide-area illumination.

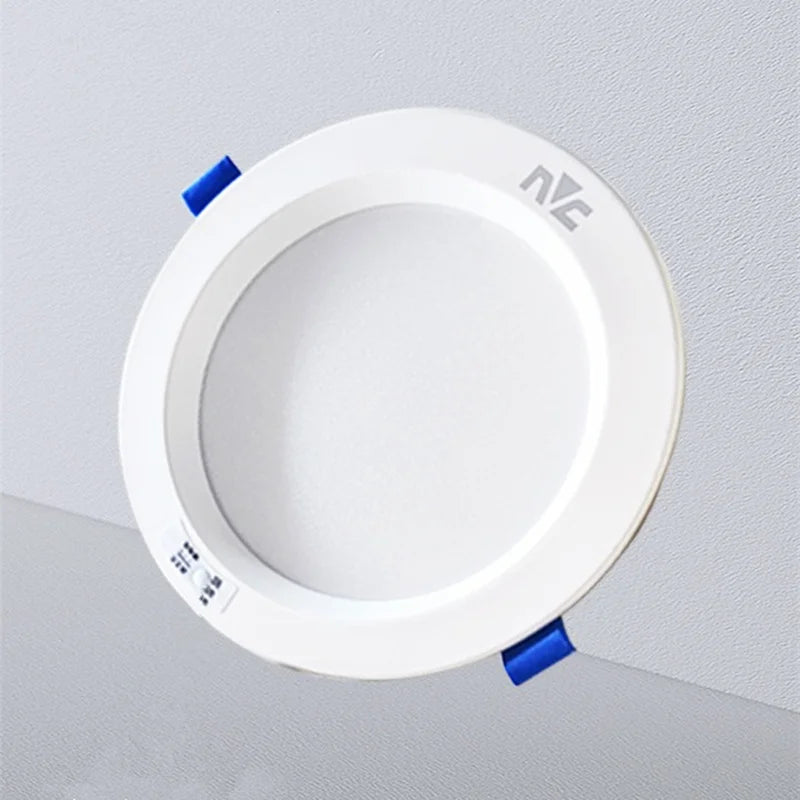

Recessed Ceiling Mount: Sleek flush-fit design — fits 125 mm ceiling cutout (unit size: 147 × 65 mm).
Built-in Rechargeable Battery: Batteries included; auto-charges while mains power is on.

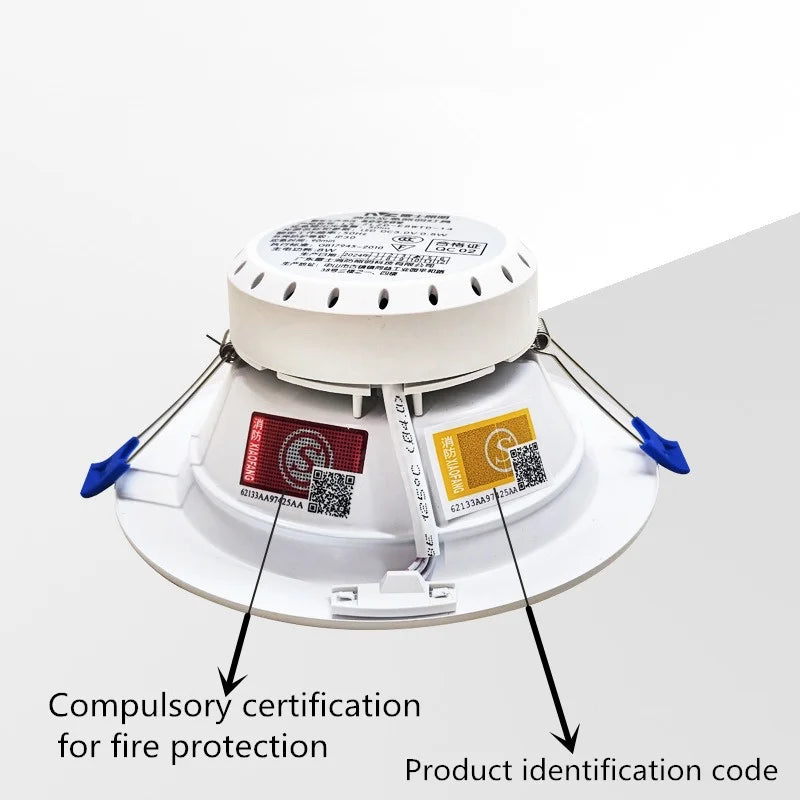

Certified & Safe: UL, CE, and CCC certified for safety compliance.
3-Year Warranty: Backed by manufacturer confidence.
Non-Dimmable, Always-Reliable: Consistent full brightness when you need it most.

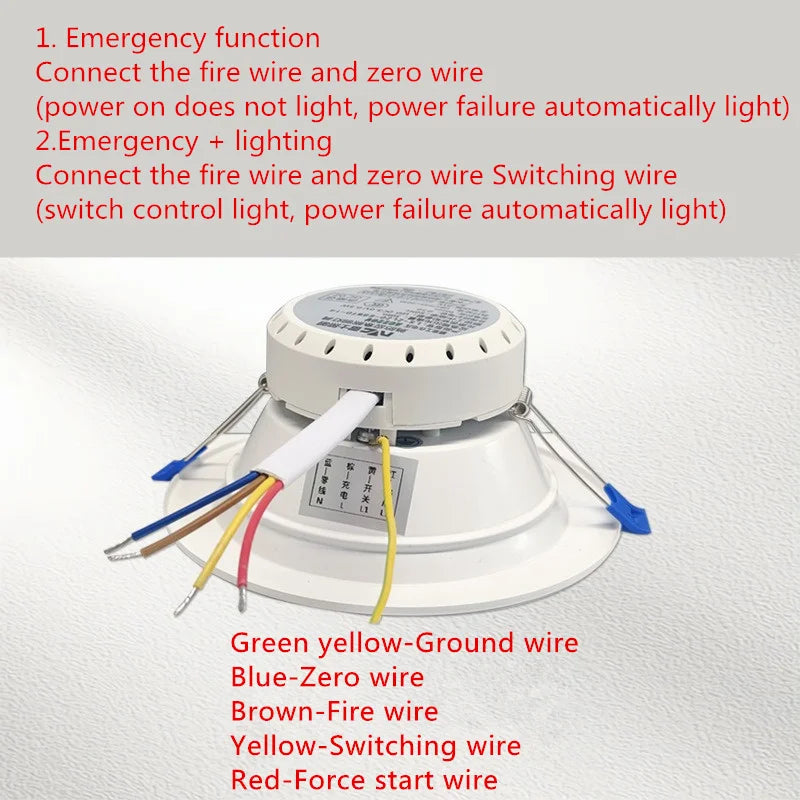

Wiring Guide

Simple colour-coded wiring for straightforward installation:

Green/Yellow – Ground wire
Blue – Neutral (Zero) wire
Brown – Live (Fire) wire
Yellow – Switching wire (for emergency + lighting mode)
Red – Force start wire

Two Operating Modes

Emergency Only: Connect live and neutral wires — light stays off during normal operation and activates automatically on power failure.
Emergency + Lighting: Connect live, neutral, and switching wire — switch controls normal lighting; activates automatically on power failure.

Specifications

Brand	SHINEKNOT
Model	Emergency Lamp 119
Voltage	AC 200–240V
Light Source	LED Bulbs (included)
Luminous Flux	249–2000 lm
Mounting	Recessed
Cutout Size	125 mm
Unit Size	147 × 65 mm
Body Material	ABS
Power Source	AC Mains + Built-in Rechargeable Battery
Batteries Included	Yes
Dimmable	No
Certifications	UL, CE, CCC
Warranty	3 Years
Origin	Mainland China

Related Products You May Like

Safety & Compliance

Emergency lighting plays a critical role in building safety. For guidance on emergency lighting standards and electrical safety in residential and commercial settings, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Emergency Preparedness resources.

Frequently Asked Questions

Q: How does the SHINEKNOT LED emergency downlight work during a power outage?

A: The fixture continuously charges its built-in rechargeable battery while mains power (AC 200–240V) is present. When a power failure is detected, the light switches on automatically and runs from the battery, providing reliable illumination without any manual action required.

Q: Can I use this emergency downlight as a regular ceiling light as well?

A: Yes. By connecting the switching wire (yellow) in addition to the live and neutral wires, the fixture operates in "Emergency + Lighting" mode — a standard light switch controls normal operation, while the emergency function still activates automatically during power failures.

Q: What ceiling cutout size is required for installation?

A: The fixture requires a 125 mm ceiling cutout. The overall unit dimensions are 147 × 65 mm. It is designed for standard recessed (flush-mount) ceiling installation.

Q: Is this downlight compatible with 220V household wiring?

A: Yes. The SHINEKNOT Emergency Downlight is designed for AC 200–240V, making it fully compatible with standard 220V–240V home and commercial electrical systems.
