Smart Switch Light DIY Module Receiver 433 Mhz 86 Portable RF

The Smart Switch Light DIY Module Receiver 433 Mhz 86 Portable RF is a portable, wireless decor essential, designed for dependable everyday performance and lasting value.

Is Smart Device: Yes

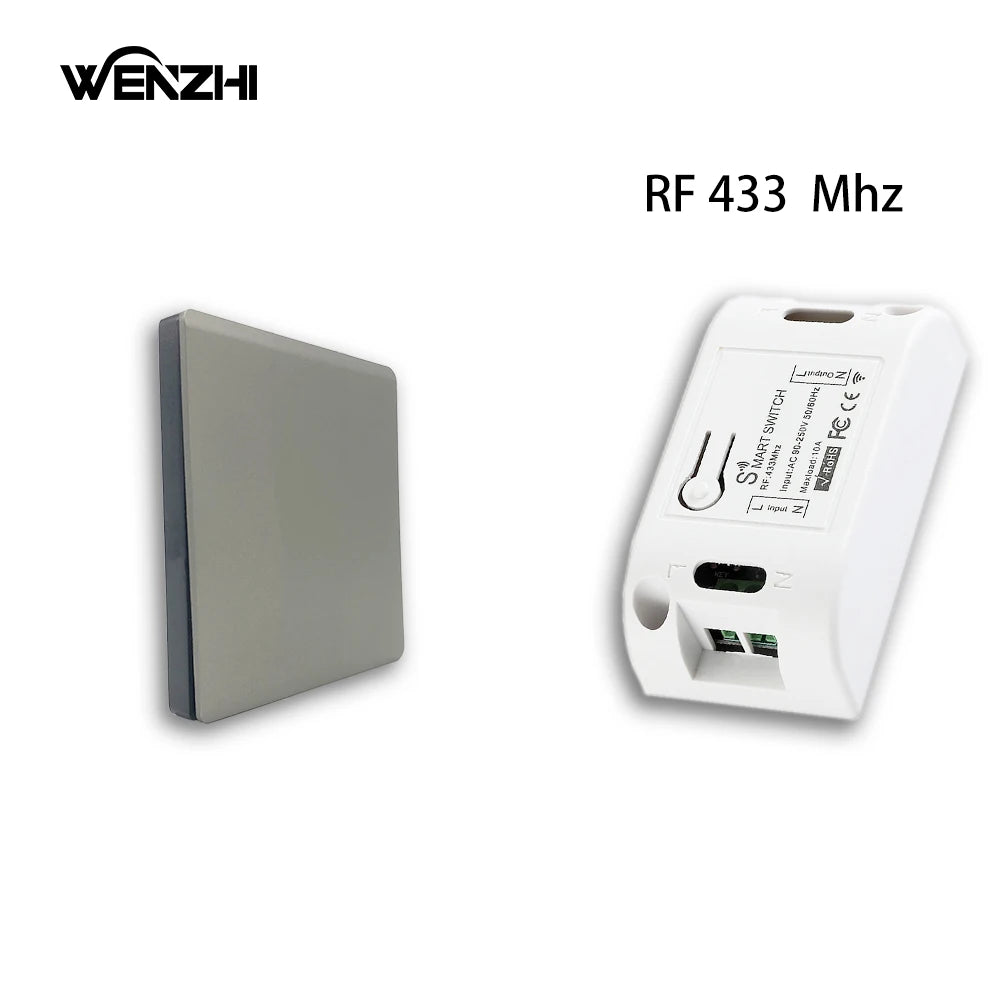

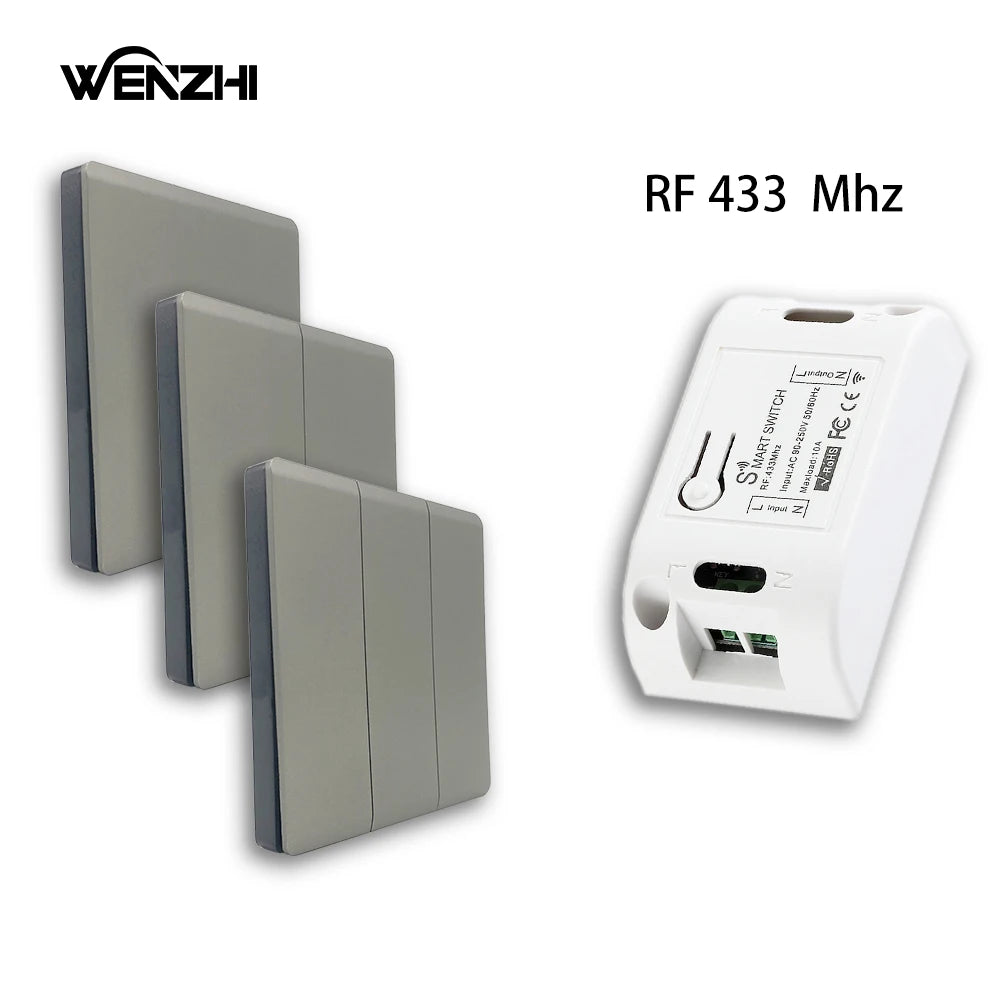

Wenzhi Wieless RF433 Mhz receiver & wall panel transmitter

Input Voltage: AC 90-250V
Max Current: 10A
Maximum load power:
resistive power 2200W
Induction power 500W
Capacitive power 200W
Incandescent lamp 2200W
LED light 300W
Energy-saving lamp 300W

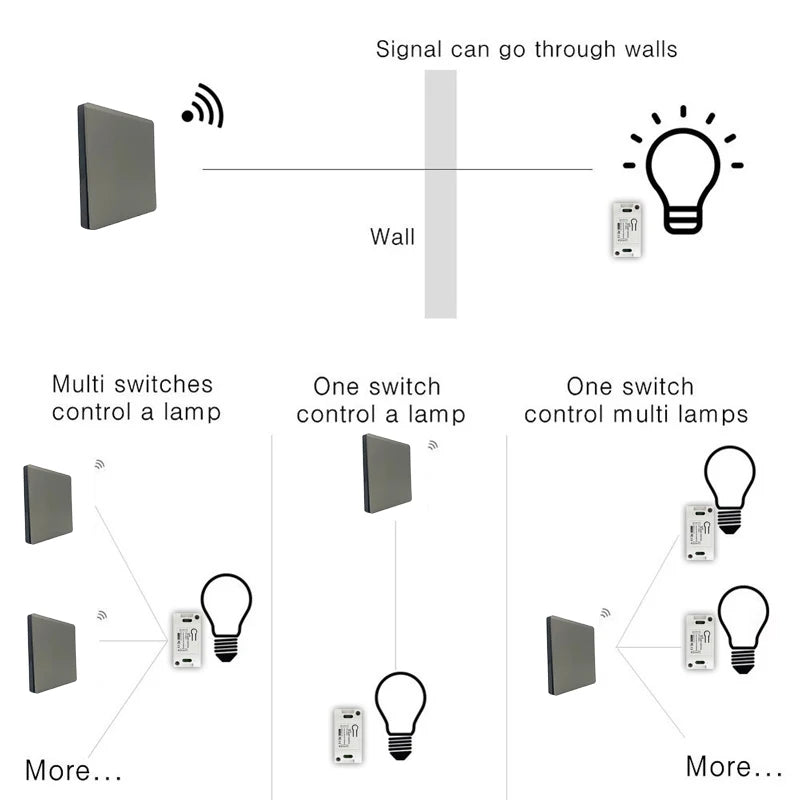

The number of lights that can be controlled at the same time: less than 6 lights, and thelight strip is less than 6 meters Operating Frequency: 433MHz Dimensions: 80mm*40mm

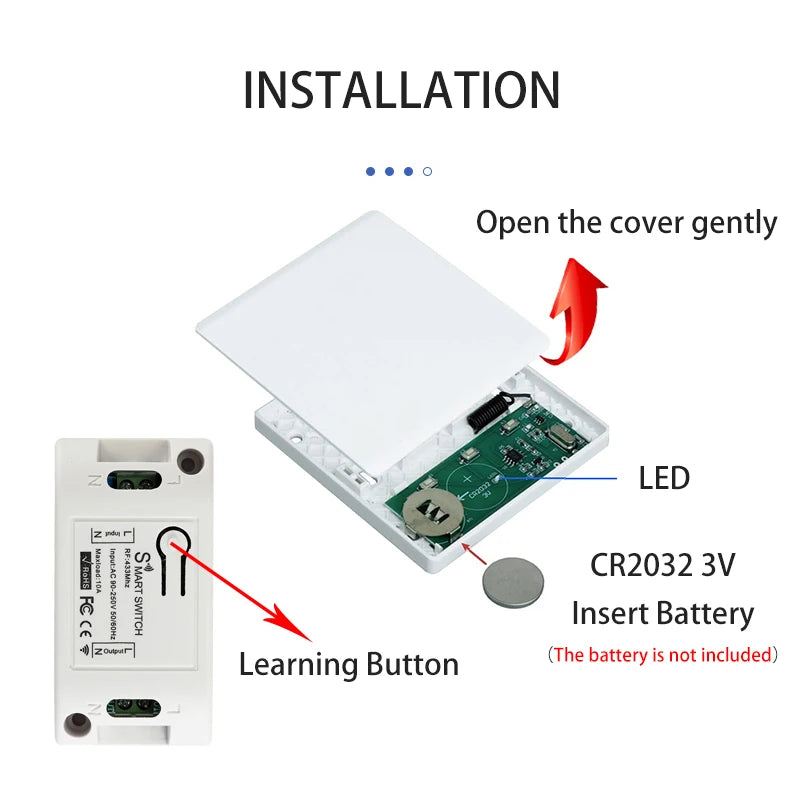

Battery Model: CR2032 (Package Not included battery)
Dimensions: 88mm x 90mm x 10mm

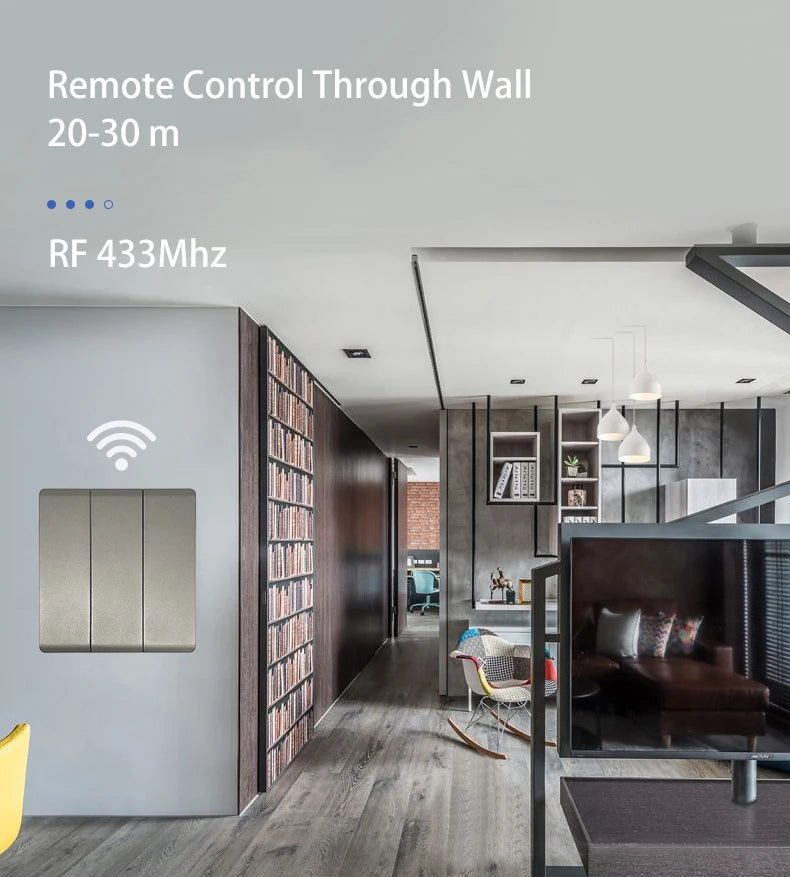

Distance: 20-30 meters
Notice:
The package Included different products because you choose a Different options.

NOTE
1) Do not wire with power on, turn off the power to wire, and power on after checking and confirming that it is correct.
2) When the remote control voltage is low, please replace the battery in time (when the remote control battery voltage is low, the remote control distance will generally become shorter).
3) When using wireless electronic products, pay attention to avoiding metal masks, large electronic devices,electromagnetic fields and other strong sources of interference, so as to avoid the short distance between the remote
control and the receiver or the failure of normal operation.
4) Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product. In severe cases, it will damage the product and bring hidden dangers to your safety.

SET UP

1. Setting momentary Mode:
Press the receiver's Learning button 1 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's blue LED will flash then come off, Setting successfully.
2. Setting Toggle Mode (Common working mode):
Press the receiver's Learning button 2 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's blue LED will flash then come off, Setting successfully.

Momentary mode:
Press the Remote control button, the receiver's relay is ON; release button, the receiver's relay is OFF.

Toggle mode:
Press Remote control button for 1 time, the receiver's relay is ON; press button again, the receiver's relay is OFF.

Latched mode:
Press Remote control button A, the receiver's relay is ON, Press the transmitter's button B, the receiver's relay is OFF.

Reset function:
After push the receiver's learning button 8 times, the receiver Clear all the remote control data in its memory.When the red LED flashes for a few times, it indicates that the clear function is completed.

(After cleared the code in the receiver, all the remote control cannot work with the receiver.)

Set power on state
Press the learning button on the receiver 6 times, and the red LED flashes 3 times.Switch the power on / off state successfully.

This piece is crafted from plastic.

Choose from 10 color options (1Switch1 receiver1, 3Switch1, 3Switch1 receiver3, 2Switch2 receiver2, 2Switch1 receiver2, 1Switch2 receiver1, 2Switch1, 1Switch1, and more) and 1 ships from option (China Mainland).
