SOP8 / WSON Flash EEPROM Chip Programmer Probe Cable with Spring Needles

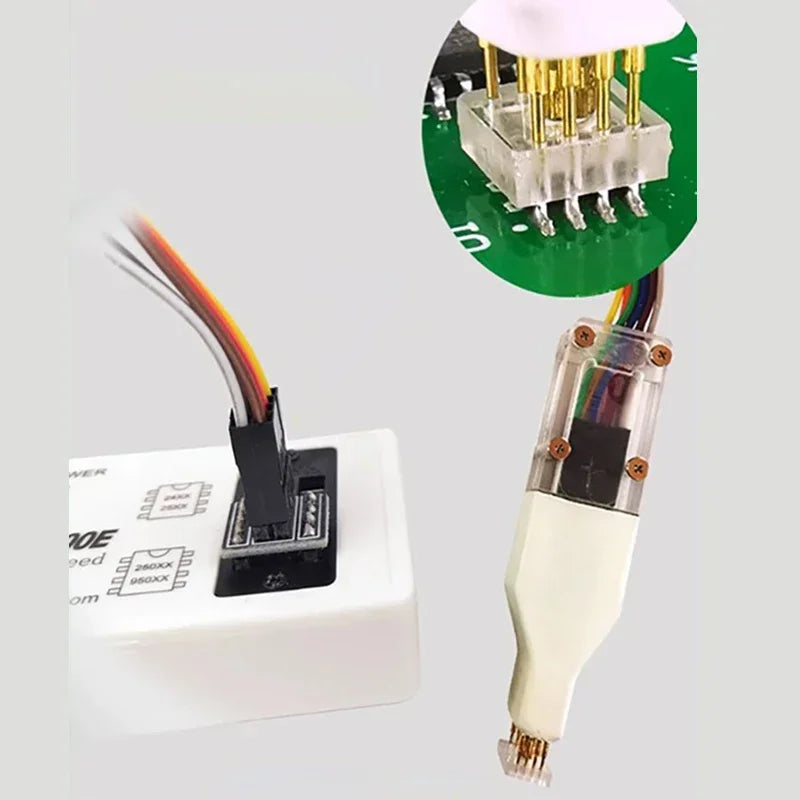

Take the hassle out of chip programming with this precision-engineered SOP8 / WSON Flash EEPROM Chip Burner Probe Cable. Designed for electronics technicians, hobbyists, and repair professionals, this spring-needle probe cable lets you read, write, and program SOP8, SOC8, VSON, and WSON packaged chips quickly and reliably — no desoldering required.
Key Features
- Universal SOP8/WSON Compatibility: Supports a wide range of chip package formats for maximum versatility in the workshop or lab.
- Spring-Loaded Needle Probes: High-quality metal spring needles ensure consistent, low-resistance contact with chip pads for accurate data transfer.
- Multiple Pitch Options: Four probe spacings to match your exact chip package — no adapters needed.

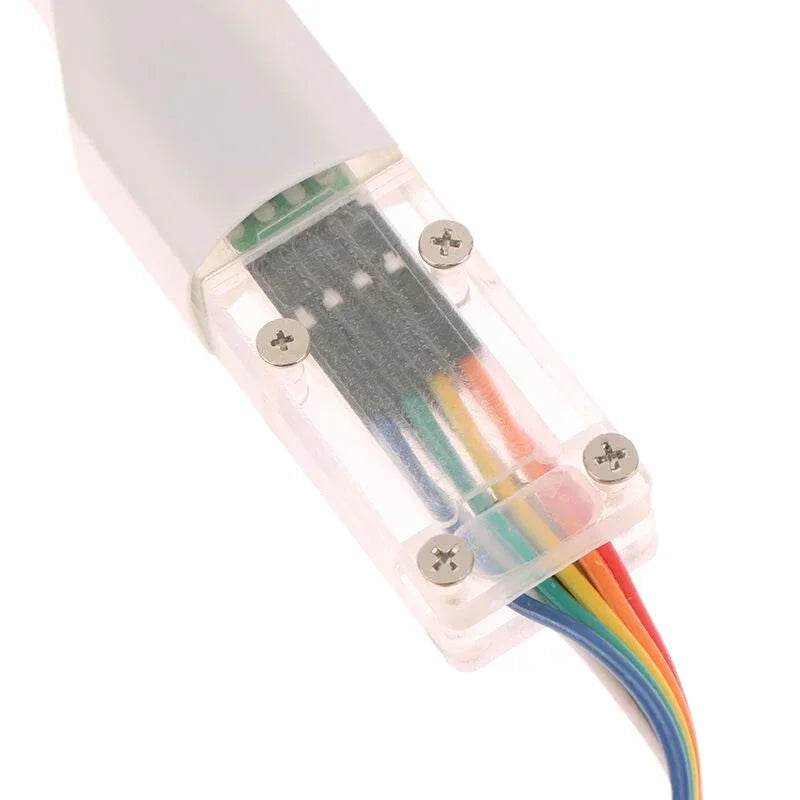

- Durable Metal Construction: Built from quality metal for longevity and reliable electrical conductivity session after session.
- Plug-and-Burn Ready: Compatible with common EEPROM/Flash chip programmers and burner tools straight out of the box.
- Made in Mainland China.

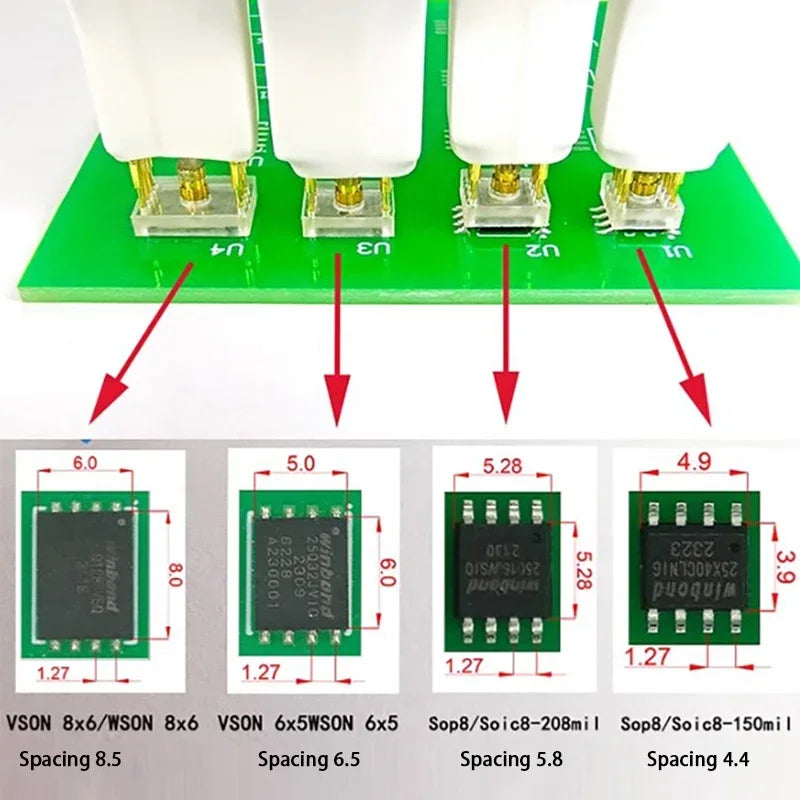

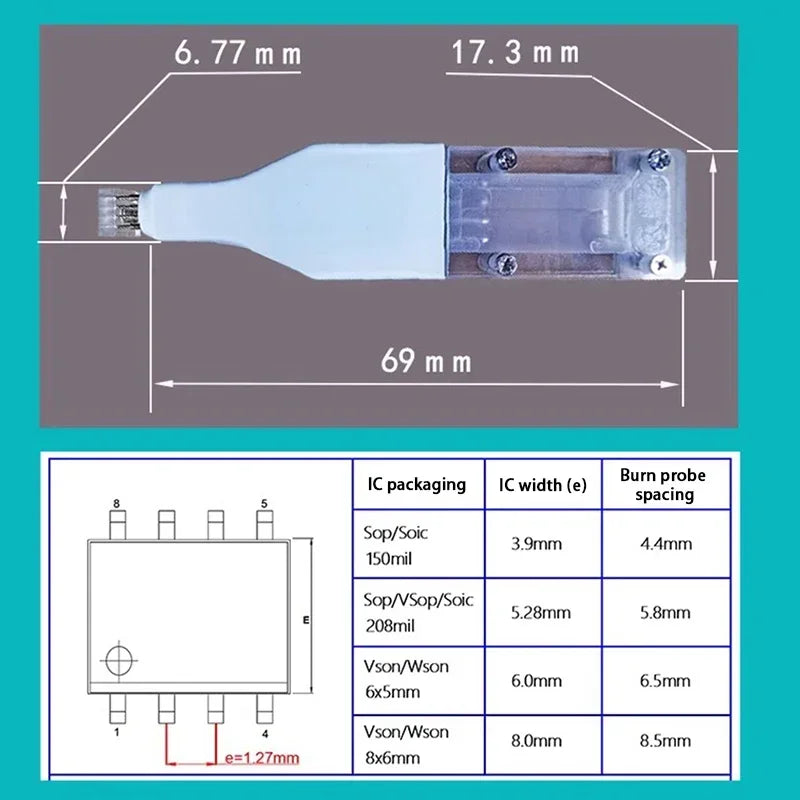

Supported Package Types & Probe Spacings
| Package Type | Chip Width | Probe Spacing |
|---|---|---|
| Standard SOP8-150mil / SOC8-150mil | 3.9 mm | 4.4 mm |
| Wide Body SOP8-208mil / SOC8-208mil | 5.28 mm | 5.8 mm |
| Standard VSON 6×5 / WSON 6×5 mm | 6 × 5 mm | 6.5 mm |
| Standard VSON 8×6 / WSON 8×6 mm | 8 × 6 mm | 8.5 mm |
Specifications
- Material: Metal

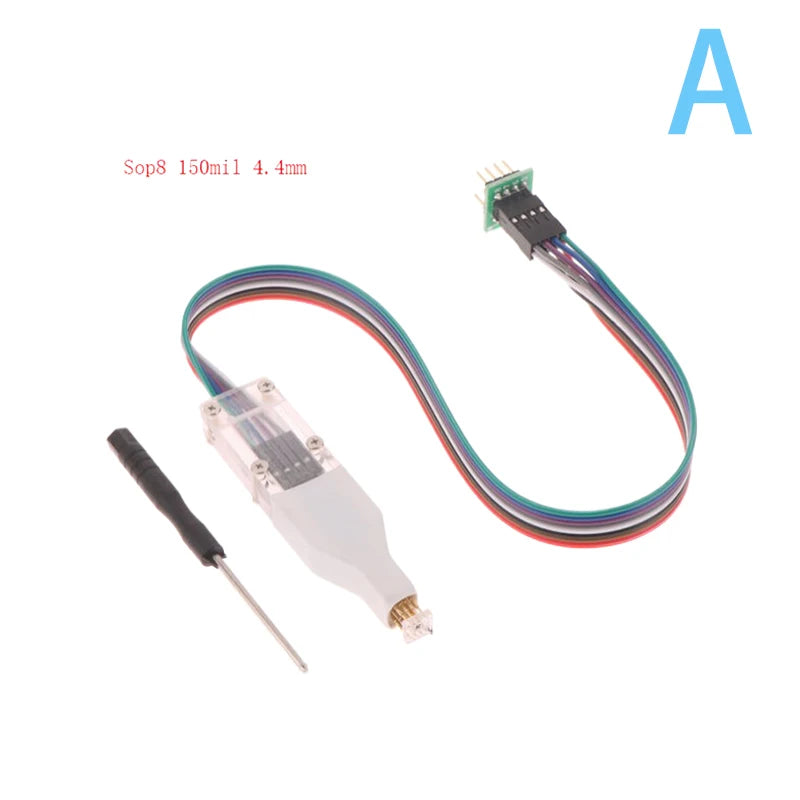

- Package Includes: 1 × SOP8/WSON Chip Burner Probe Spring Needle Cable
- Origin: Made in Mainland China
Notes
Please allow for minor dimensional tolerances due to manual measurement. Actual color may vary slightly from product images depending on your monitor's display settings.
Related Products You May Like
- 1/4" Hex Shank Wire Twister Drill Attachment | Rebar Tie Tool
- 1/4" NPT Nickel Plated Brass Air Compressor Tank Fill Valve
- 1/2" Drive Wheel Protector Impact Socket Set + Storage Case
For general guidance on electronic component safety and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Which chip packages is this SOP8 WSON burner probe cable compatible with?
A: This probe cable is compatible with Standard SOP8-150mil/SOC8-150mil, Wide Body SOP8-208mil/SOC8-208mil, Standard VSON 6×5mm/WSON 6×5mm, and Standard VSON 8×6mm/WSON 8×6mm chip packages. Check your chip's datasheet to confirm the package type and select the correct probe spacing variant.
Q: Do I need to desolder the chip to use this programmer probe cable?
A: No. The spring-loaded needle probes are designed for in-circuit programming, meaning you can read, write, or program the Flash/EEPROM chip directly on the PCB without removing it — saving time and reducing the risk of board damage.
Q: What programmers or burner tools is this cable compatible with?
A: This probe cable is designed as a universal burner cable for common Flash and EEPROM chip programmers that support SOP8/WSON package connections. Always verify your programmer's connector type and pin mapping against the cable's pinout before use.
Q: How durable are the spring needles?
A: The probes are made from quality metal with spring-loaded tips engineered for consistent, repeatable contact. With proper handling and care, they are built to withstand multiple programming sessions without loss of contact reliability.
