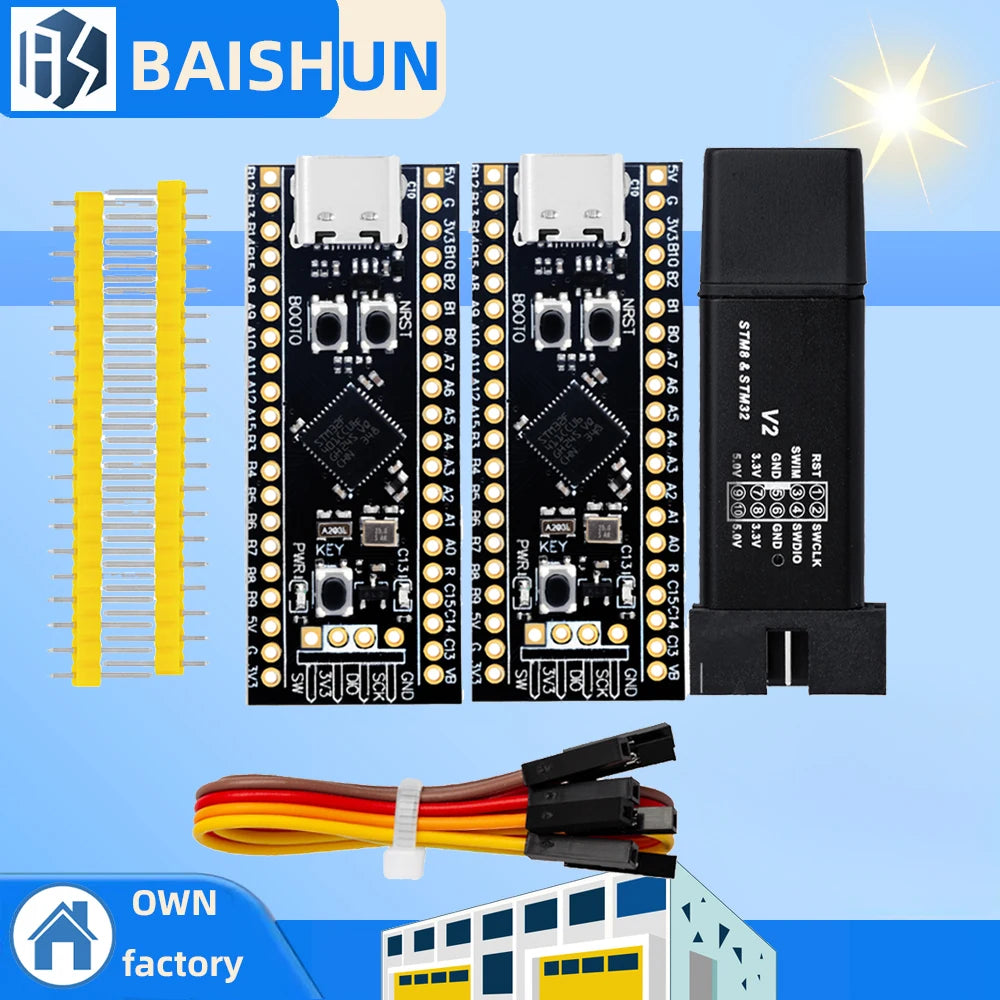

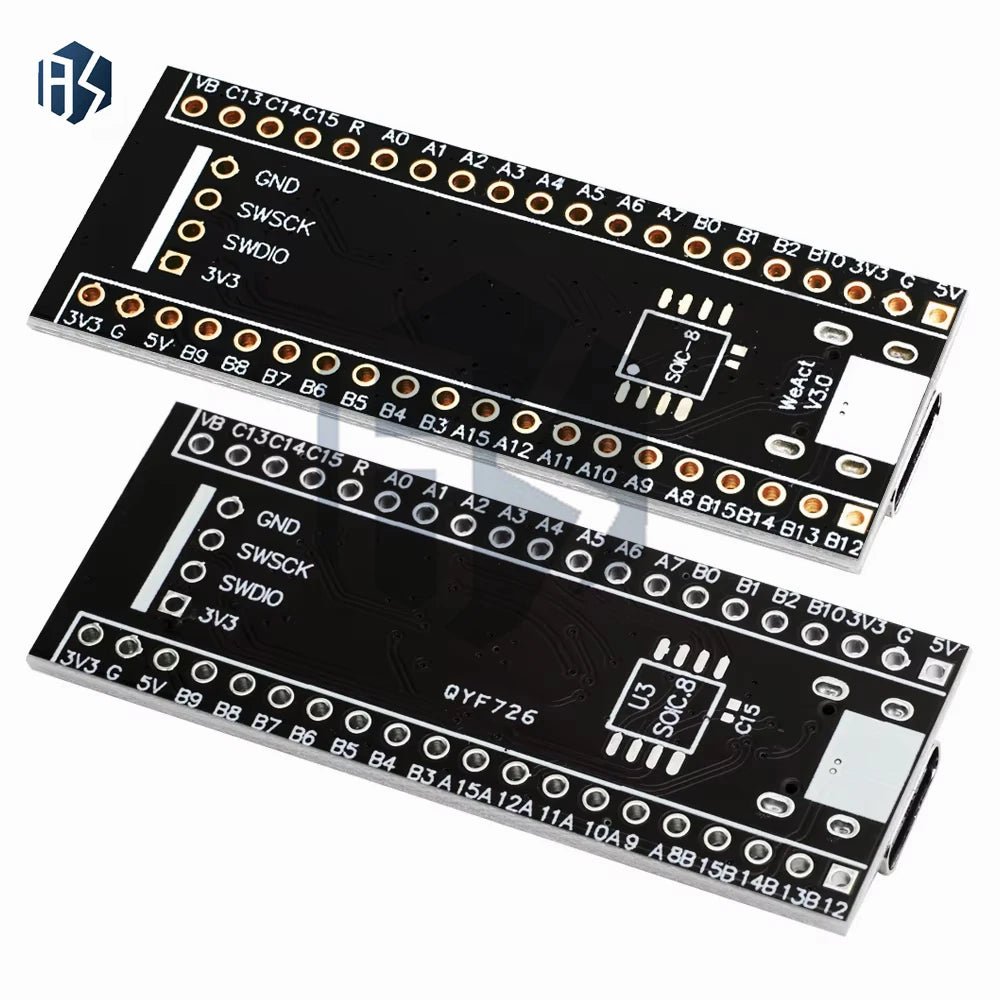

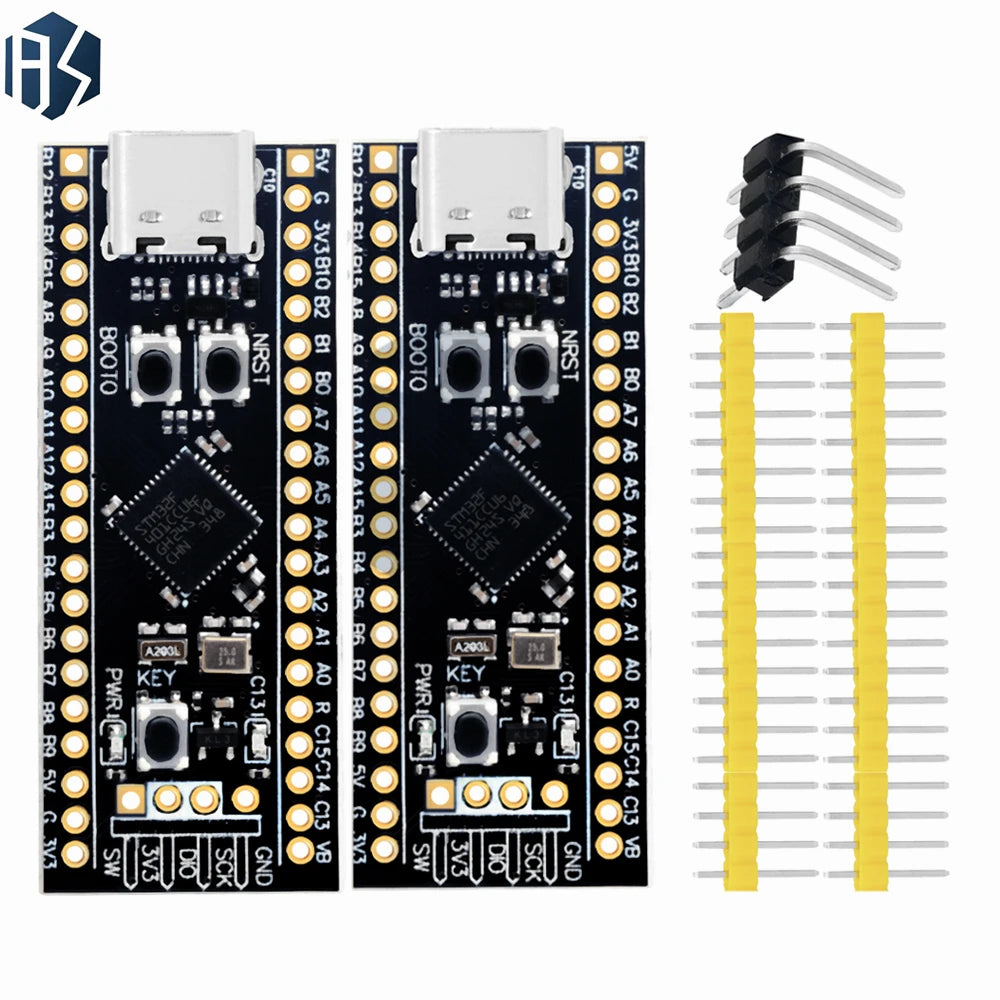

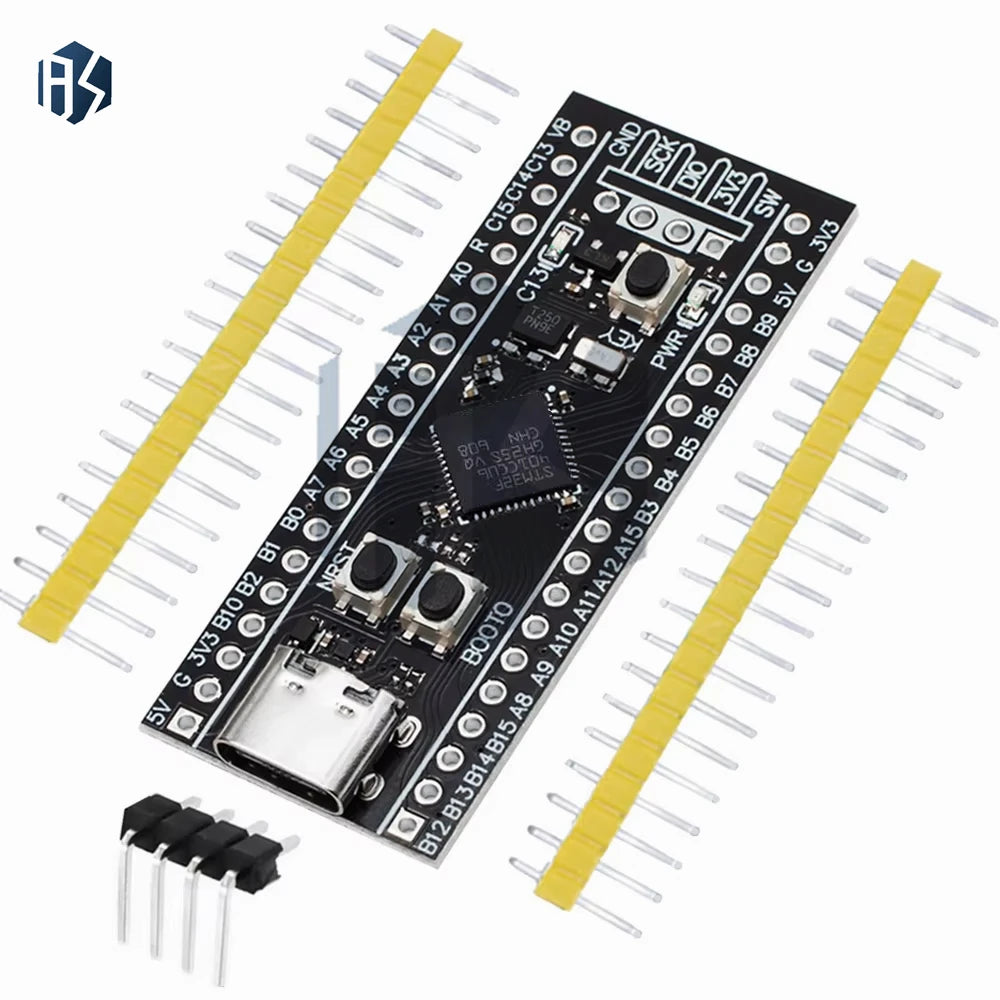

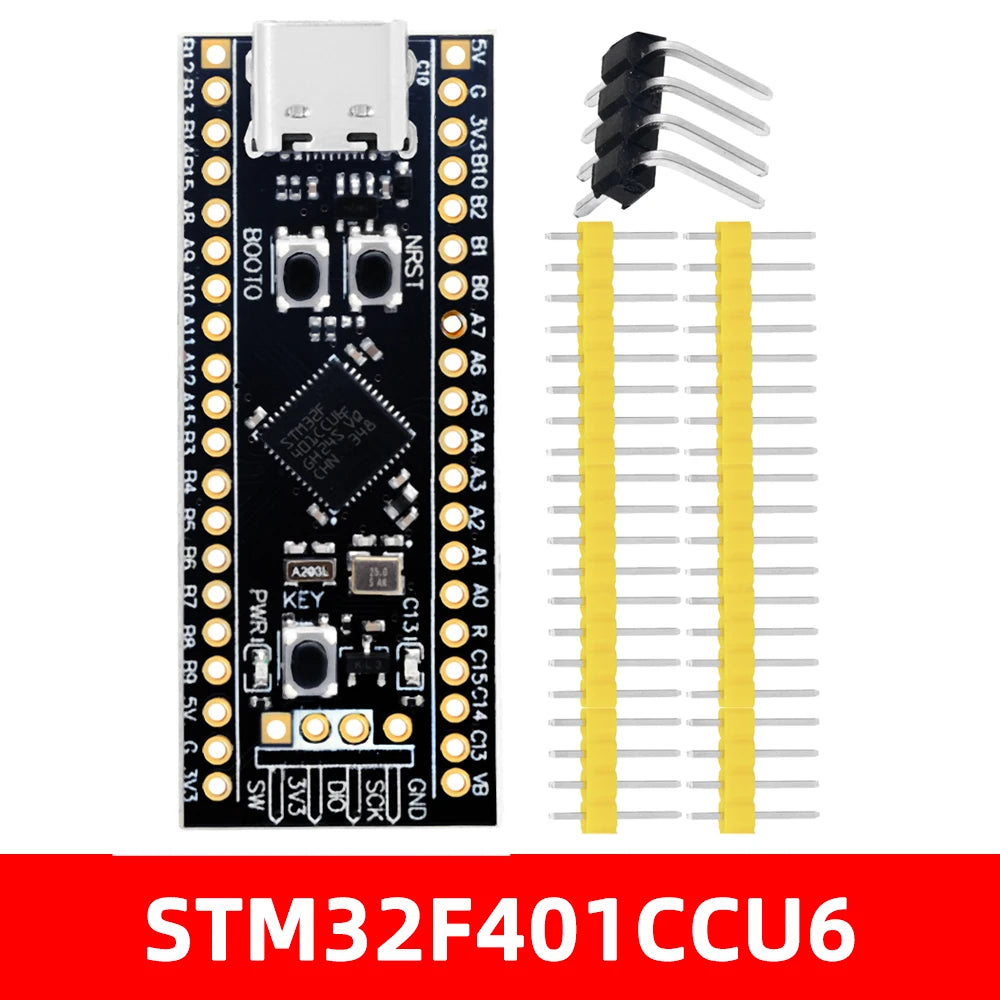

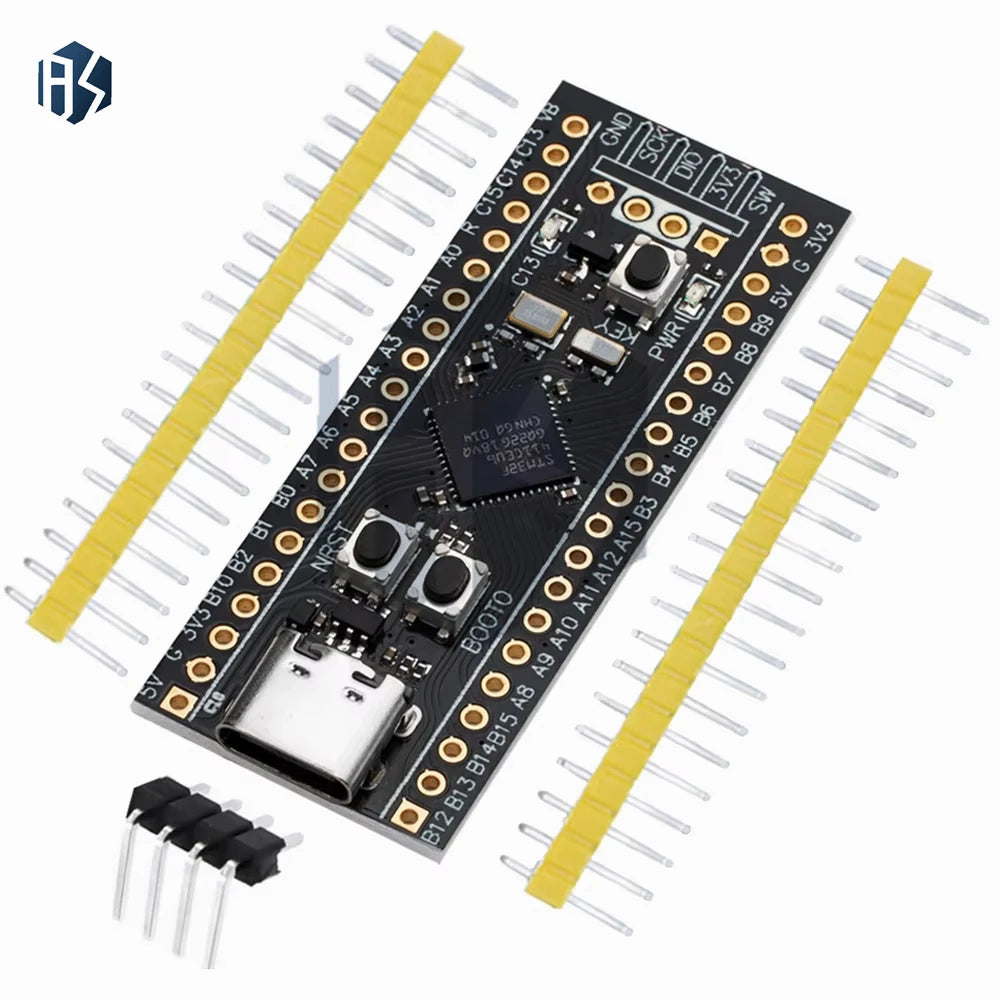

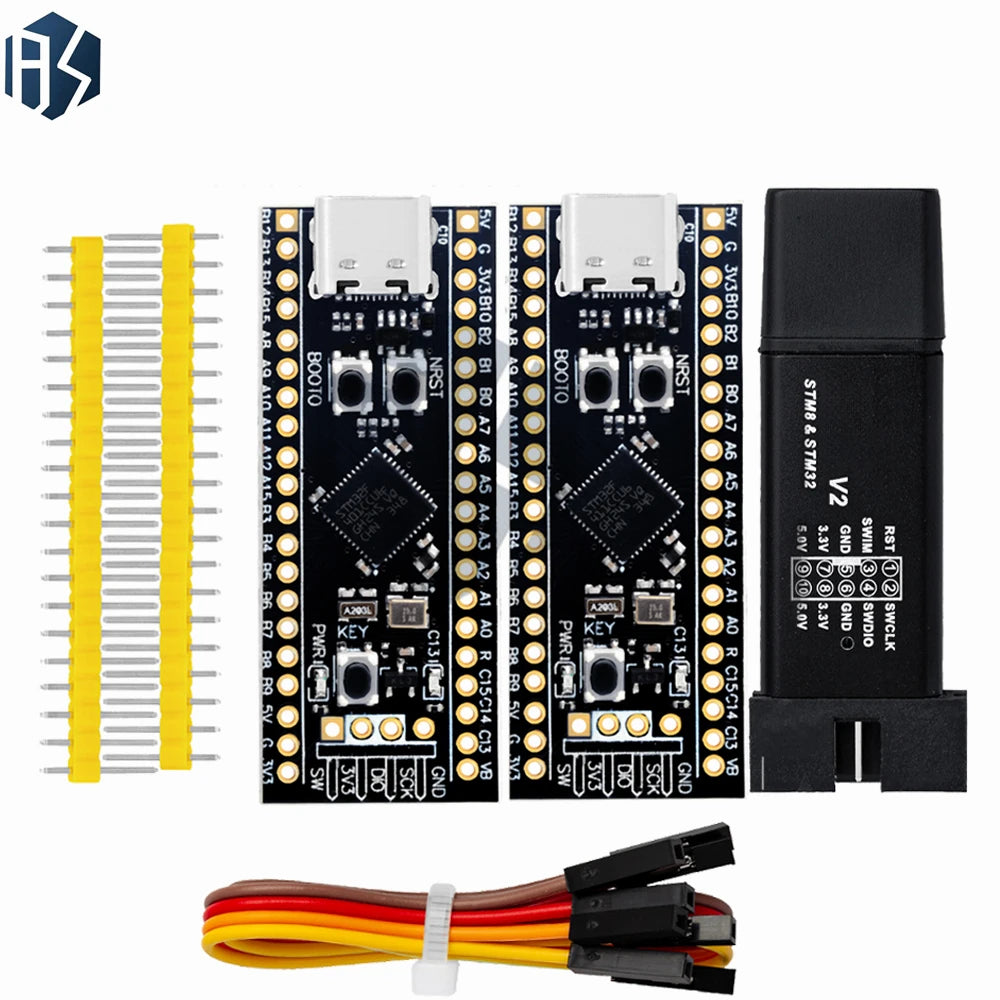

STM32F401 Development Board V3 0 STM32F401CCU6 STM32F411CEU6 STM32F4

$12.20

$12.20 $15.11

Discover the STM32F401 Development Board V3 0 STM32F401CCU6 STM32F411CEU6 STM32F4 — a standout decor pick featuring soft design for dependable, everyday performance.

Specifications

Application: Computer

Brand Name: baishundianzi

Condition: New

Dissipation Power: STM32F411

Operating Temperature: STM32F411

Supply Voltage: STM32F411

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

TM32F401CCU6 core board V3.0 Freq. 84Mhz ROM:256KB RAM:64KB STM32F411CEU6 core board V3.0 Freq. 100MHZ ROM:512KB RAM:128KB 25MHZ high speed crystal oscillator & 32.768Khz 6PF low speed crystal oscillator V3.0 version began to use lead-free process, the pin header is gold-plated pin header, more environmentally friendly Flash pads have been reserved and USBDisk && FATFFS routines are provided Support MicroPython programming, provide available MicroPython firmware, see the link for configuration files, but do not provide technical answers! Support Arduino programming, see Github https://github.com/stm32duino/Arduino_Core_STM32 for details Boards with version V1.3 and above have 3 buttons, reset button, BOOT0 button, and user buttons. How to enter ISP mode Method 1: Press and hold the BOOT0 button and the reset button under the power-on state, then release the reset button, and release the BOOT0 button after 0.5 seconds Method 2: Hold down the BOOT0 key when power is off, and release the BOOT0 key 0.5S after power on DFU mode: just use the data cable to connect to the computer, if there is a problem of unrecognized, you can properly heat the chip (25 ° C), and then re-enter the ISP mode Serial port mode: use USB to serial port to connect PA9 and PA10 of the core board Software: STM32CubeProg. How to enter HID Bootloader after writing to APP Press and hold the KEY button, click the reset button, LED C13 flashes, release the KEY button to enter

Options

Color: STM32F401 black, V2, STM32F411

Frequently Asked Questions

Q: What is the STM32F401 Development Board V3 0 STM32F401CCU6?

A: The STM32F401 Development Board V3 0 STM32F401CCU6 is a quality decor pick. 84Mhz ROM:256KB RAM:64KB STM32F411CEU6 core board V3.0 Freq.

Q: How do I use the STM32F401 Development Board V3 0 STM32F401CCU6?

A: The STM32F401 Development Board V3 0 STM32F401CCU6 is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the STM32F401 Development Board V3 0 STM32F401CCU6?

A: The STM32F401 Development Board V3 0 STM32F401CCU6 stands out in our decor range — 100MHZ ROM:512KB RAM:128KB 25MHZ high speed crystal oscillator & 32.768Khz 6PF low speed crystal oscillator V3.0 version began to use lead-free process, the pin header is gold-plated pin header, more environmentally friendly Flash pads have been reserved and USBDisk && FATFFS routines are provided Support MicroPython programming, provide available MicroPython firmware, see the link for configuration files, but do not provide technical answers!
