Zigbee Wifi Mmwave Human Presence Sensor Radar Movement Body Motion

The Zigbee Wifi Mmwave Human Presence Sensor Radar Movement Body Motion is a adjustable decor essential, designed for dependable everyday performance and lasting value.

ZigBee/WiFi MmWave Human Presence Sensor Radar Movement Body Motion Detection With illuminance Tuya Smart Life Home Assistant

Main Features:

1.Functional Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

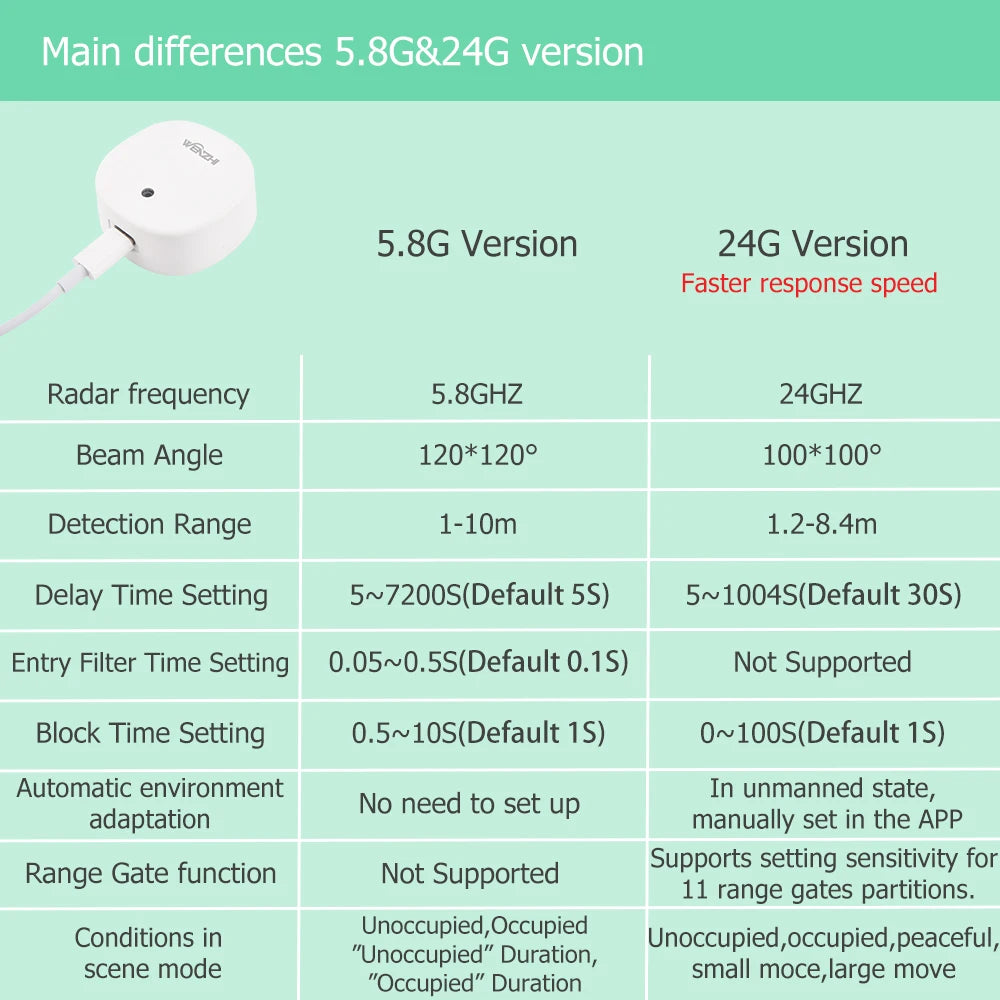

2. 5.8G and 24G radars are optional.

Newly upgraded 24G radar with faster response speed. And the 24G version supports setting sensitivity based on distance zones or turning off/on the detection of corresponding distance zones. 5.8G has simpler usage settings. 5.8G is sufficient for daily use. 24G is more suitable for use in relatively complex scenarios.

3. Perceived Light Intensity for Smart&Scene Linkage

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

4.Comes With a Multi Angle Magnetic Bracket.

Sensors have magnetic attraction function, which can directly magnetically attract to iron. For example, iron table corners, iron frames, and steel beams.You can also use double-sided tape to directly stick it to the place where you need to install.

The sensor is magnetically attached to the bracket and then glued to the desired area using double-sided adhesive. For example, on the wall or ceiling. And the bracket allows for angle adjustment.
Note: The back of the sensor has magnetism, and there is metal on the bracket. Therefore, achieving magnetic attraction function.

5.Newly updated debug mode.

The debug mode is used to find the most suitable detection distance.This helps to eliminate sources of interference.

6.Newly updated Range Report Mode settings.

Setting it to "report at trigger" can reduce reporting logs. This will not cause network congestion for ZigBee2mqtt.Compared to other sensors present in the human body, it may be more friendly to the ZigBee network.

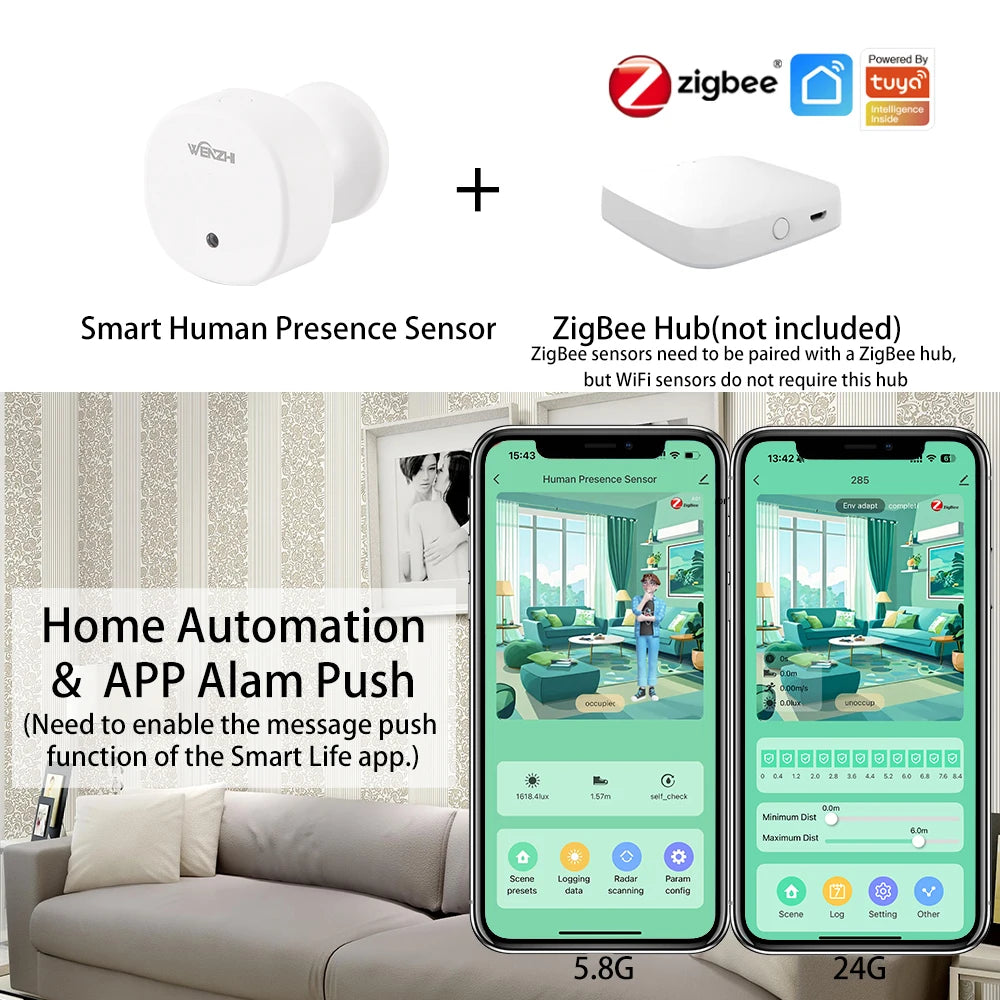

7. ZigBee Hub as Control Center

Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

If you need to use ZigBee2mqtt in home assistant. As this is a brand new device, if you want to add it directly to ZigBee2qmtt, please download the JS file from the following link.
https://github.com/wzwenzhi/Wenzhi-ZigBee2mqtt

Network: ZigBee / Wifi.
Radar: 5.8G/24G
Input: USB Type-C DC 5V 1A.
Working temperature: -10℃~+40℃
Sensitivity: 10-100%(default 80%)
5.8G Detection Range: 1-10m(Default 6m)
24G Detection Range: 1.2-8.4m(Default 6m)
Illuminance Sensor: 0-9999.9 LUX(relative value).
5.8G Entry Filter Time:0.05S-0.5S(Default 0.1S)
5.8G Departure Delay: 5S-120Min(Default 5S).
24G Departure Delay: 5S--1004S(Default 30S).
Beam Angle: 120*120°(5.8G) / 100*100°(24G)
Sensor Size: 48x48x20mm / 1.89*1.89*0.79in
Bracket Size: φ40mm*H36mm / φ1.57in*1.42in

Various Detection Functions

1. Fretting Detection: It can detect small movements such as tilting the head, waving, raising the hand, flicking the body, playing with the mobile phone, turning over the book, etc.
2. Presence Detection:It can detect the human body in the stationary state.
3.Motion Detection: It can detect walking, trotting, fast running, circling, jumping and other movements.
4. Distance measurement: The target distance measurement function can accurately filter targets outside the area.

Exclusive features for 24G version

1. In unmanned mode, clicking this button can quickly calibrate parameters.
2. Support setting parameters by distance partition.
a.On the homepage, you can close the range gate interval to prevent it from being detected again.
b.You can modify the detection sensitivity of the
specified range gate. In this range gate, you can directly set the sensitivity to three levels: "Hight", "Midst", and "Low". You can also customize sensitivity by modifying the detection threshold. As the motion/presence threshold increases, the corresponding sensitivity decreases.

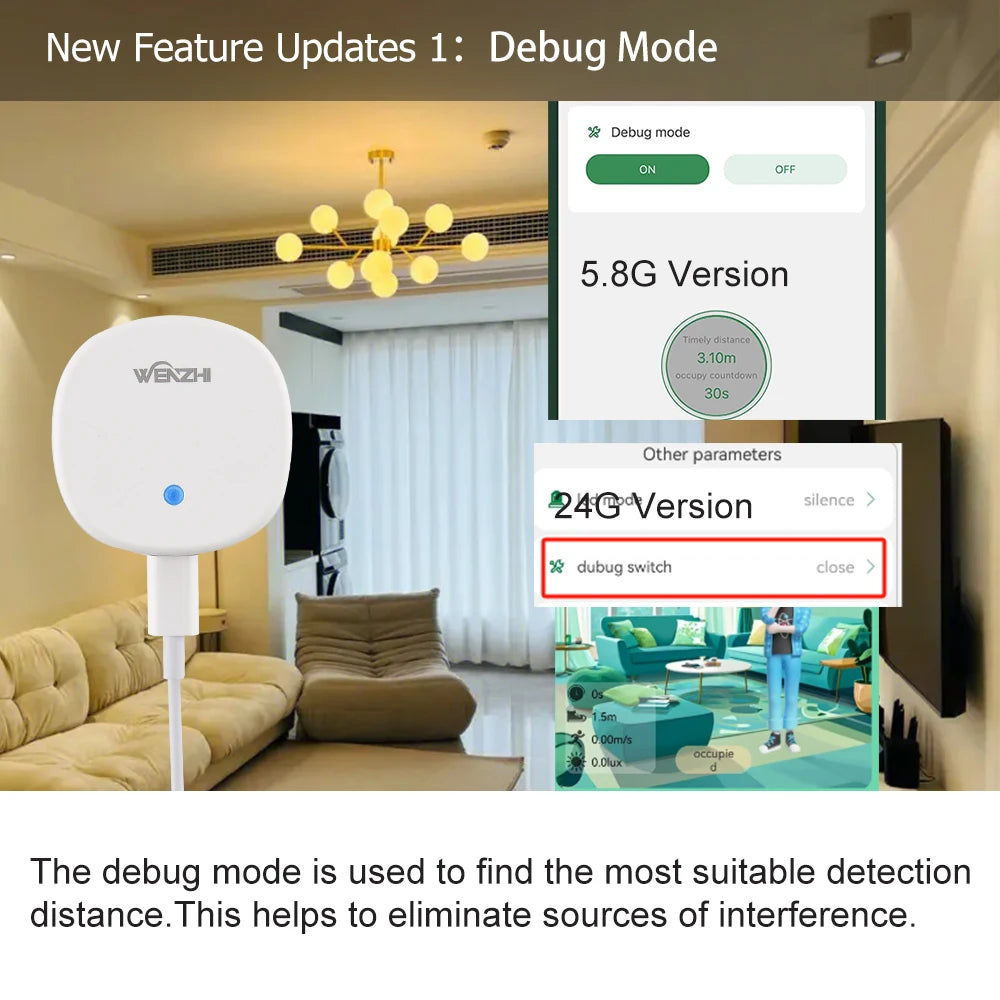

New Feature Updates 1: Debug Mode

The debug mode is used to find the most suitable detection distance.This mode is turned off by default. When the debug mode is turned on, the indicator light will be turned on if someone is detected within the range, and the data reporting function will be turned on. If no one is detected within the range, the indicator light will be turned off.Timely distance can be used to determine the distance of interference sources.When the interface displays a countdown, if the radar does not detect the target, it wiil enter the countdown.

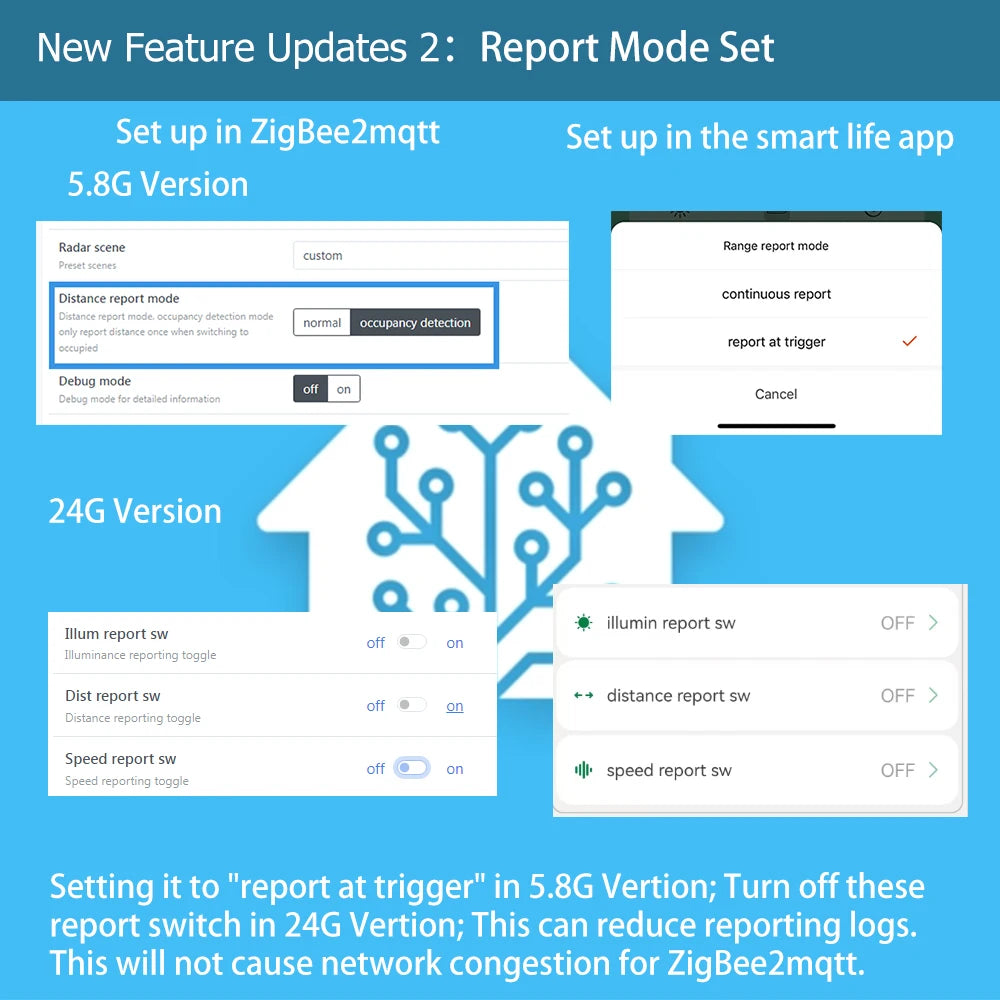

New Feature Updates 2: Range Report Mode

This can reduce frequent reporting information.

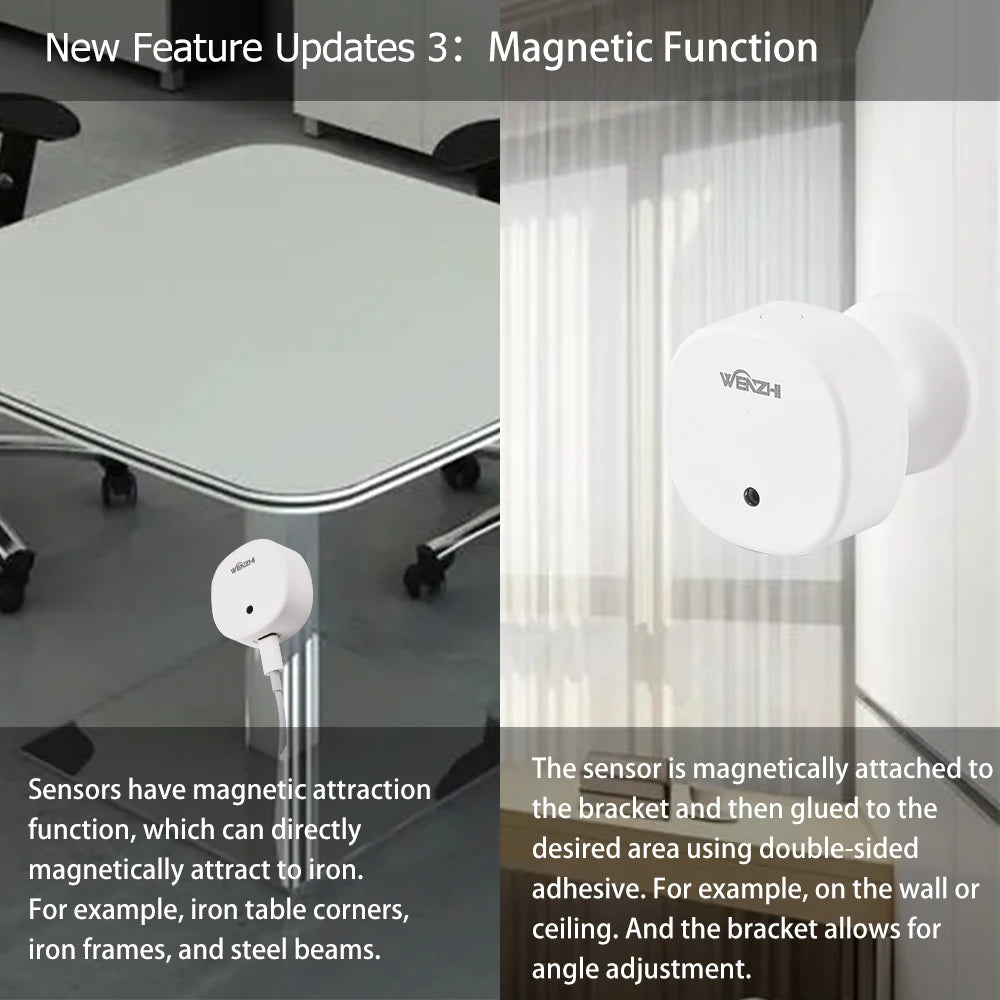

New Feature Updates 3: Magnetic Funtion

1. Sensors have magnetic attraction function, which can directly magnetically attract to iron. For example, iron table corners, iron frames, and steel beams.You can also use double-sided tape to stand anywhere you need to install it.
2.The sensor is magnetically attached to the bracket and then glued to the desired area using double-sided adhesive. For example, on the wall or ceiling. And the bracket allows for angle adjustment.

Illuminance detection

The detection range is 0-9999.9lux. A larger range of relative values. Adopt more accurate photosensitive sensors.

Adjustable Parameters

Various parameters such as detection distance can be set through app.

1.Detection shield:The closest detectable distance for the target.
2.Detection range:The farthest detectable distance for the target.
3.Trigger distance:The distance at which a sensor is triggered in an 'unoccupied' state.
4.Maintain sensitivity:The sensitivity for continuous detection of targets in an 'occupied' state.
5.Trigger sensitiveity: The sensitivity of triggering the sensor in an 'unoccupied' state.
6.Departure delay:After the target disappears, the delay in
reporting the 'unoccupied' state.
7.Entry filter time:The time it takes to confirm and report the
"occupied" state after a target is detected.
8.Block time:After transitioning from an "occupied" to an "unoccupied" state, the sensor does not detect targets during the lockout period.
9.Status indication:Indicator Light Switch.
10.Sensor:Sensor's Operational Status.
11.Range reprot mode:Target Distance Reporting Mode.

Product Size

Presence Detection Range (5m)
Micromotion Detection Range (7m)
Motion Detection Range (10m)

Package list:

Sensor unit x 1
Mounting bracket x 1
Mounting adhesive x 1
USB power cable x 1
User Manual x 1

Choose from 4 color options (Wi-Fi 5.8G Radar, ZigBee 24G Radar, ZigBee 5.8G Radar, Wi-Fi 24G Radar) and 1 ships from option (China Mainland).
