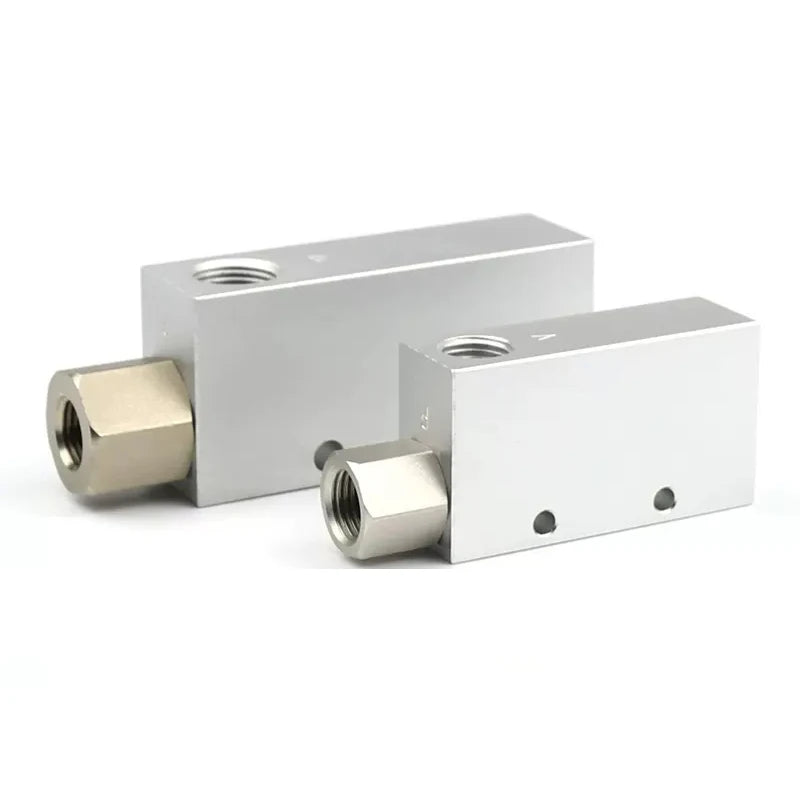

CV-15/20/25HS Vacuum Generator Large Flow Pneumatic Valve

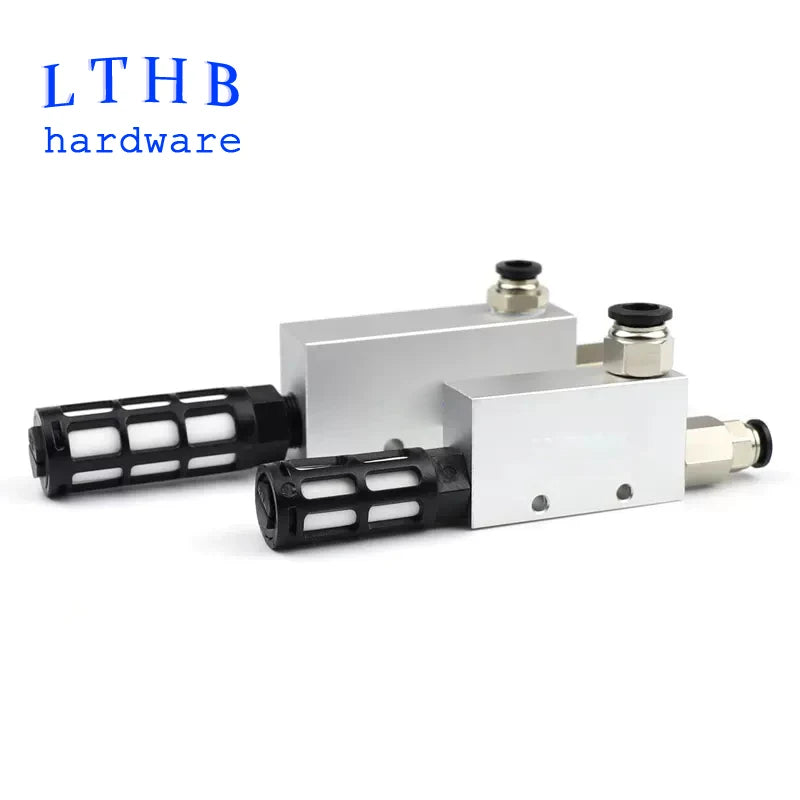

CV-15/20/25HS Vacuum Generator – High-Flow Pneumatic Suction Control

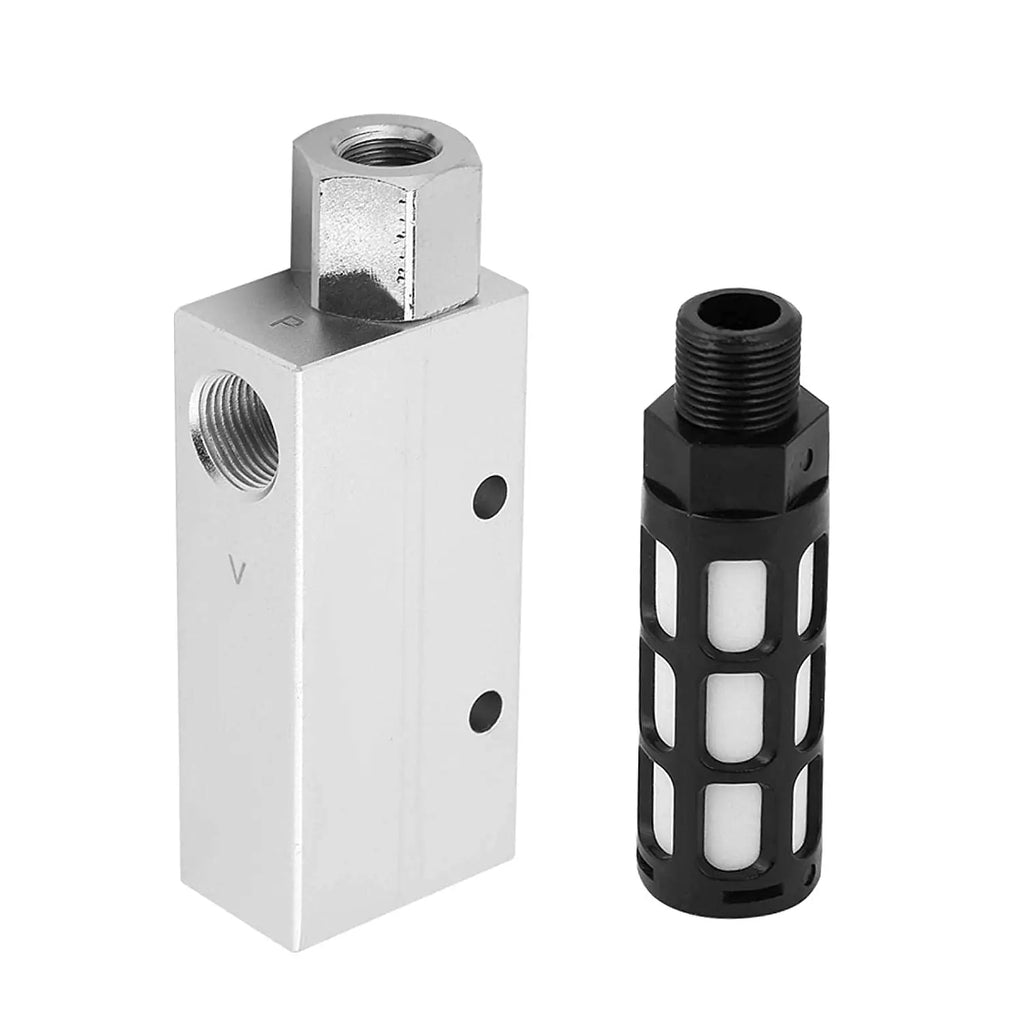

Take your industrial automation to the next level with the QIXIAO CV-15HS / CV-20HS / CV-25HS Large Flow Vacuum Generator. Engineered for demanding environments, this jet-type vacuum generator delivers powerful negative pressure for manipulator suction cups, robotic arms, and a wide range of pneumatic automation systems. With a suction flow rate of 160 L/min and a vacuum pressure of -92 kPa, it's built to handle precision pick-and-place tasks with ease.

Made in Mainland China.

Key Specifications

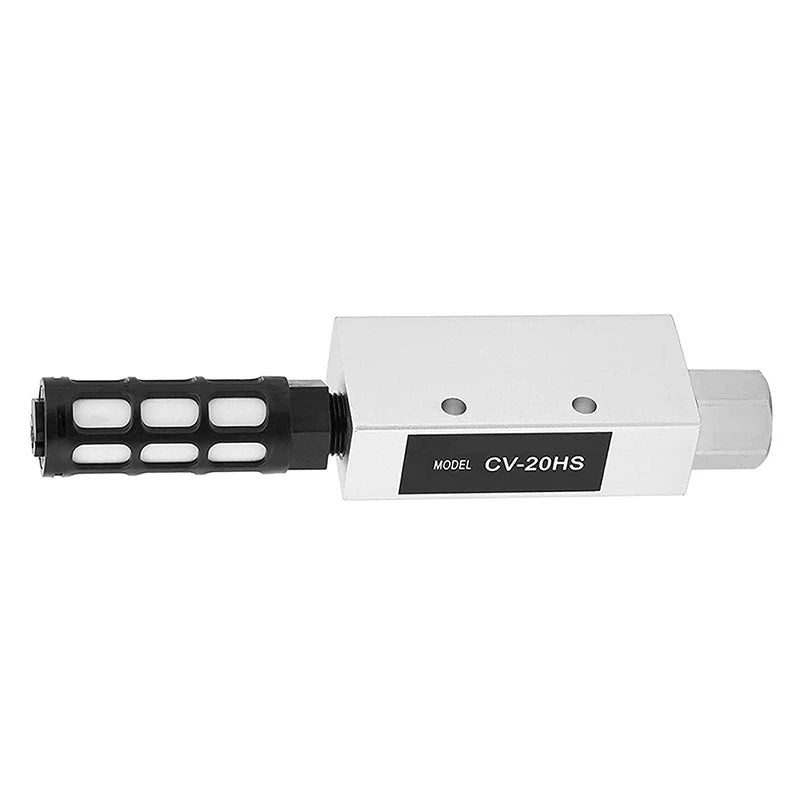

• Models: CV-15HS | CV-20HS | CV-25HS
• Flow Medium: Air
• Working Pressure: 1–6 BAR
• Rated Pressure: 5 BAR
• Suction Flow Rate: 160 L/min
• Air Consumption: 265 L/min
• Vacuum Pressure: -92 kPa
• Working Temperature: 0–60 °C
• Material: Aluminum Alloy
• Color: Silver
• Certification: CE

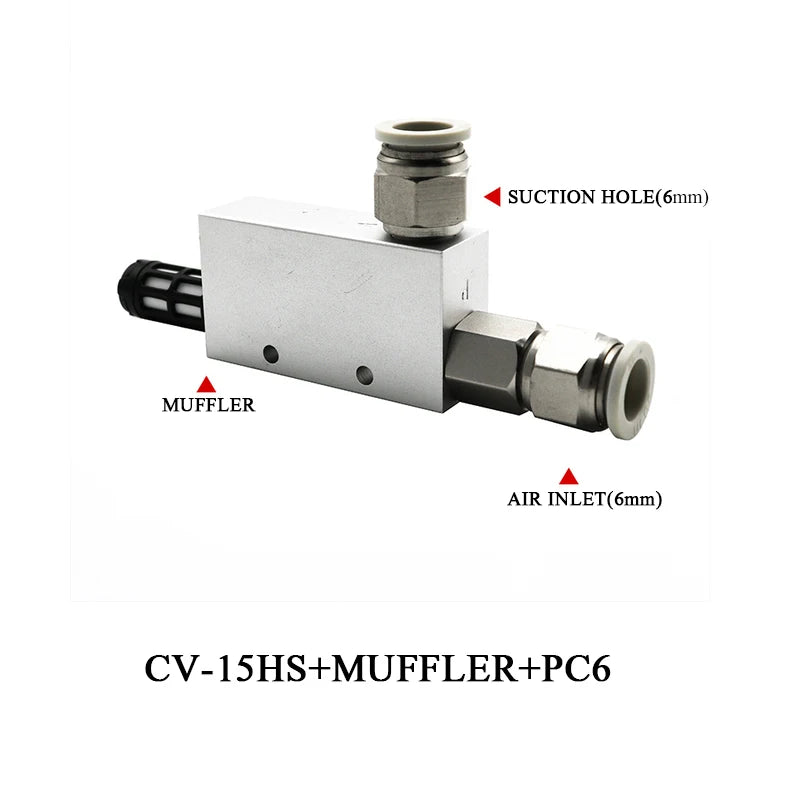

Thread Size Reference

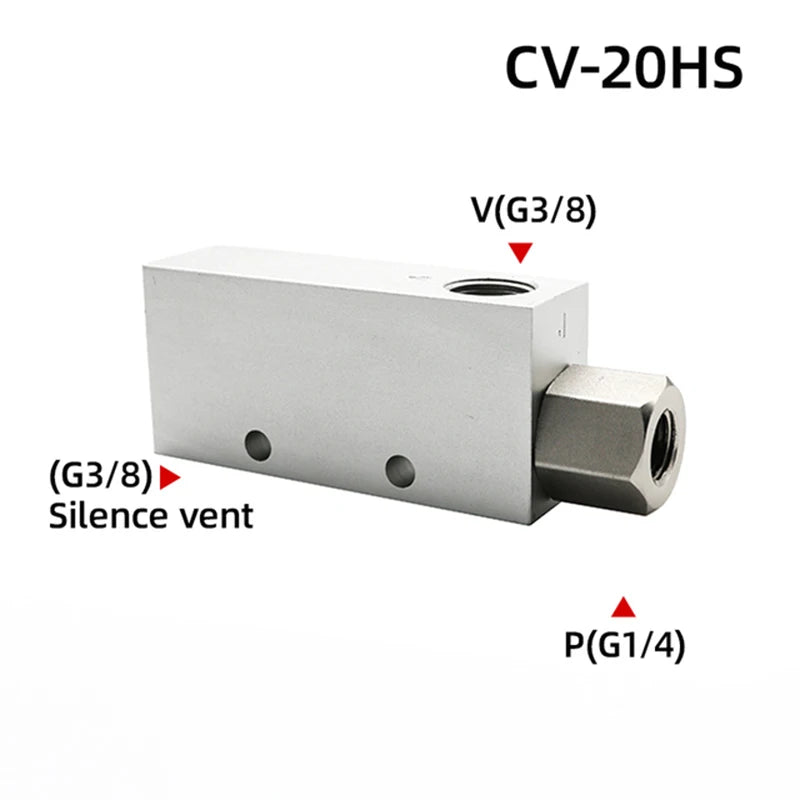

• 1/8" Threaded = 9.7 mm
• 1/4" Threaded = 12.7 mm
• 3/8" Threaded = 16 mm
• 1/2" Threaded = 20 mm
• 3/4" Threaded = 25.5 mm

Why Choose This Vacuum Generator?

• ✅ Excellent Air Tightness: The compact, all-round sealed design eliminates air leakage, ensuring consistent high vacuum performance with zero maintenance headaches.
• ✅ Premium Aluminum Alloy Build: Wear-resistant and corrosion-resistant with a polished or brushed finish — built to last in tough industrial settings.
• ✅ Anti-Drop Threaded Interface: Precision-machined high-accuracy internal threads (processed by CNC equipment) create a firm, secure connection with your pipeline every time.
• ✅ Wide Industrial Compatibility: An essential accessory for negative pressure suction cups used in automation machinery, electronics assembly, packaging, printing, plastics processing, and robotics.

Applications

This pneumatic vacuum generator is ideal for use in:

• Industrial robotic arms and manipulators
• Electronics pick-and-place machines
• Packaging and labeling automation
• Printing and plastics manufacturing lines
• Custom pneumatic automation systems

Related Products You May Need

• 1/4" Hex Shank Wire Twister Drill Attachment | Rebar Tie Tool
• 10-Pack Cascading Hanger Connector Hooks | Closet Space Saver

Safety & Standards Reference

For guidance on safe pneumatic system design and workplace pneumatic equipment safety, refer to the OSHA Pneumatic Tools Safety Guidelines.

Learn more: Vacuum pump

Frequently Asked Questions

Q: What are the differences between the CV-15HS, CV-20HS, and CV-25HS vacuum generator models?

A: The CV-15HS, CV-20HS, and CV-25HS models differ primarily in their port size and flow capacity. Each model is matched to a corresponding thread size (1/8", 1/4", and 3/8" respectively), making them suitable for different pipeline diameters and application scales. All three share the same core specifications for working pressure, materials, and vacuum performance.

Q: What type of air supply does this vacuum generator require?

A: The CV-15/20/25HS vacuum generator operates using standard compressed air as its flow medium. It works within a working pressure range of 1–6 BAR with a rated pressure of 5 BAR. A clean, dry compressed air supply is recommended to maintain optimal performance and longevity.

Q: Is this vacuum generator suitable for robotic and automated pick-and-place applications?

A: Yes, absolutely. This large-flow pneumatic vacuum generator is specifically designed for use with manipulator suction cups in industrial automation. It delivers a suction flow rate of 160 L/min and a vacuum pressure of -92 kPa, making it highly effective for pick-and-place robotics, packaging lines, electronics assembly, and more.

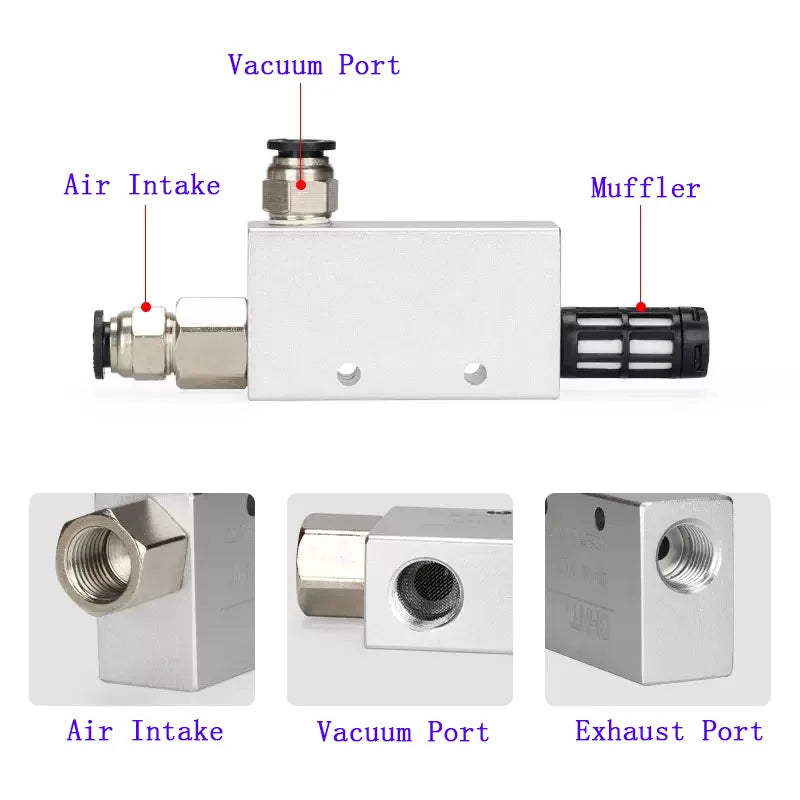

Q: How do I ensure a secure pipeline connection with this vacuum generator?

A: The injector interface features a high-precision internal thread structure machined by CNC equipment, ensuring a tight and firm connection with your pipeline. Simply match the correct thread size to your system (1/8", 1/4", 3/8", 1/2", or 3/4") and thread it securely — no additional adapters are typically needed.
