Drive Safer with Real-Time Tire Monitoring

Never get caught off guard by a flat, blowout, or overheated tyre again. This Universal Car Tire Pressure Monitoring System (TPMS) keeps a constant eye on all four tyres simultaneously, alerting you the moment pressure or temperature goes out of the safe range. Dual-powered by solar energy or USB, it's always ready — no battery swaps needed for the display unit.

Made in Mainland China.

Key Features

Real-Time 4-Tyre Monitoring – Continuously tracks pressure (0–6 Bar) and temperature (-40°C to +120°C) on all four tyres at once.

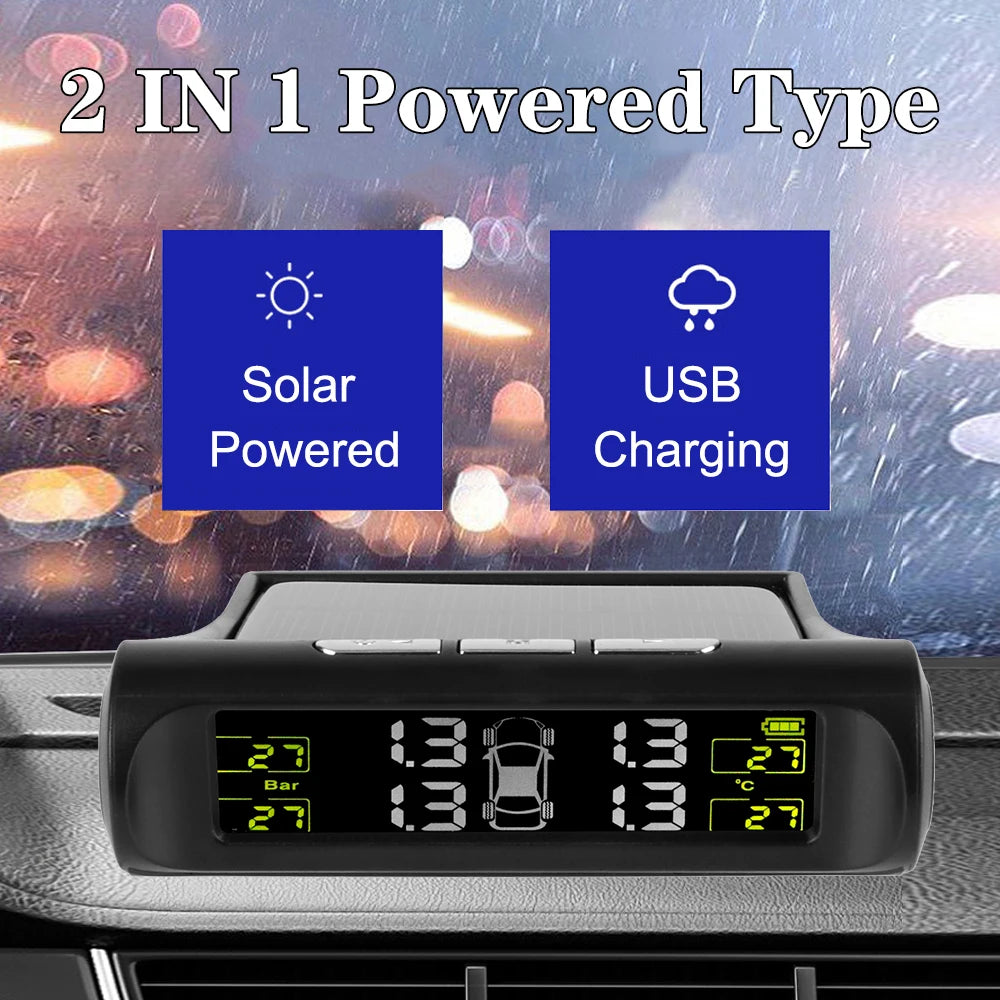

Dual Power Supply – Solar panel keeps the display charged during the day; USB cable powers it when parked indoors or on cloudy days.
Wireless Sensor Setup – Choose interior or external sensors for easy, tool-free installation. Sensors are pre-paired at the factory.

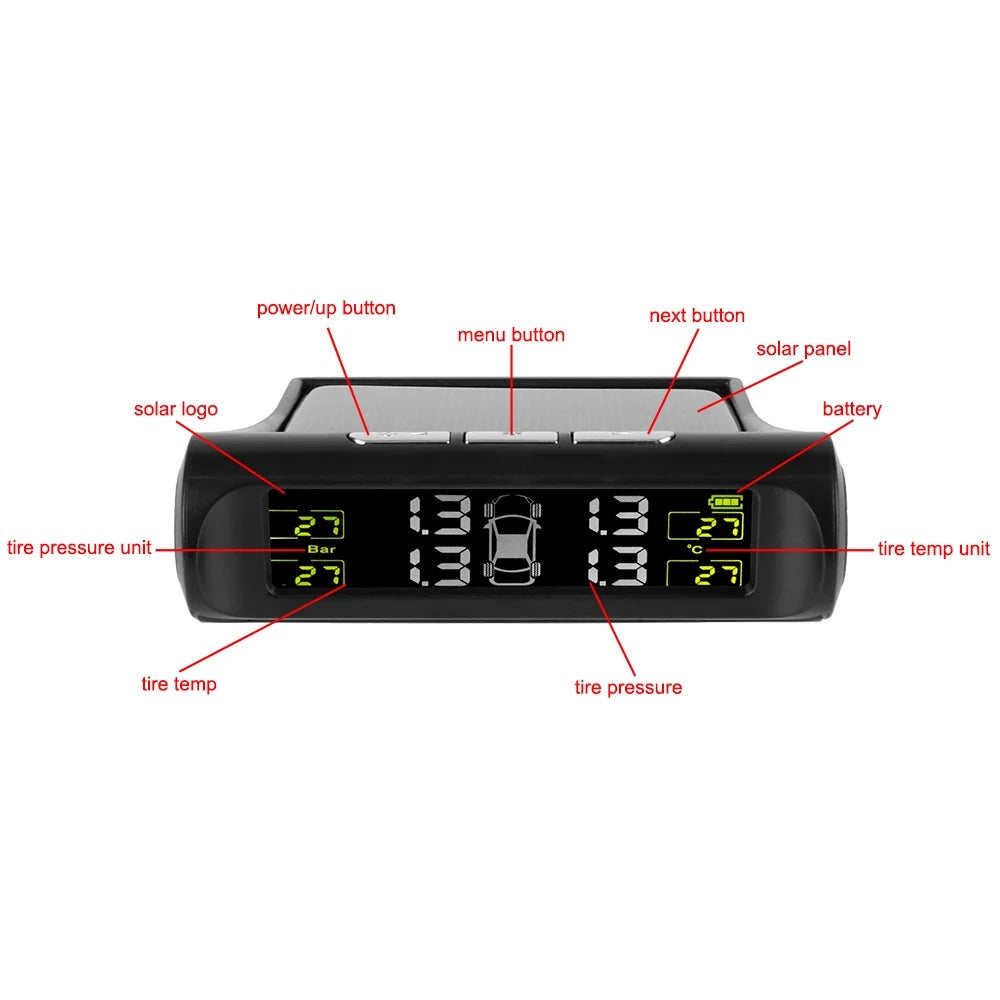

Crystal-Clear LCD Display – Large, easy-to-read screen shows all tyre data at a glance, even in bright sunlight.
Smart Alarm System – Buzzer and flashing icons alert you to low pressure, high pressure, rapid air leaks, high tyre temperature, and low sensor battery.
Auto Sleep & Wake – Display wakes automatically when vibration is detected (driving) and sleeps after 10 minutes of parking to save power.
High Accuracy – Pressure precision: ±0.1 bar; Temperature precision: ±2°C.
Universal Compatibility – Works with most cars, SUVs, and light trucks.

Technical Specifications

Material	ABS + Aluminium
Sensor Types	Interior & External (selectable)
Display Power	Solar / USB
Working Frequency	433.92 MHz ± 0.1 MHz
Pressure Range	0–6 Bar
Temperature Range	-40°C to +120°C
Pressure Accuracy	±0.1 Bar
Temperature Accuracy	±2°C
Data Update Speed	Auto-updates when speed > 20 km/h
Model Number	30805

Alarm Alerts Explained

Pressure Alarm: Triggered when any tyre exceeds or falls below the safe pressure range, or if a rapid air leak is detected. The affected tyre's pressure value and alarm icon will flash on-screen while the buzzer sounds.
Temperature Alarm: Triggered when a tyre temperature exceeds the safe threshold. Visual and audio alerts activate simultaneously.
Low Battery Alarm: Triggered when a sensor's battery is running low. The corresponding tyre icon and low-battery symbol flash until acknowledged.

Note: Press any key to silence the buzzer alarm. The fault icon will remain visible on the display until the issue is resolved.

Installation Tips

Power on the display unit first by pressing and holding the left button for 3 seconds.

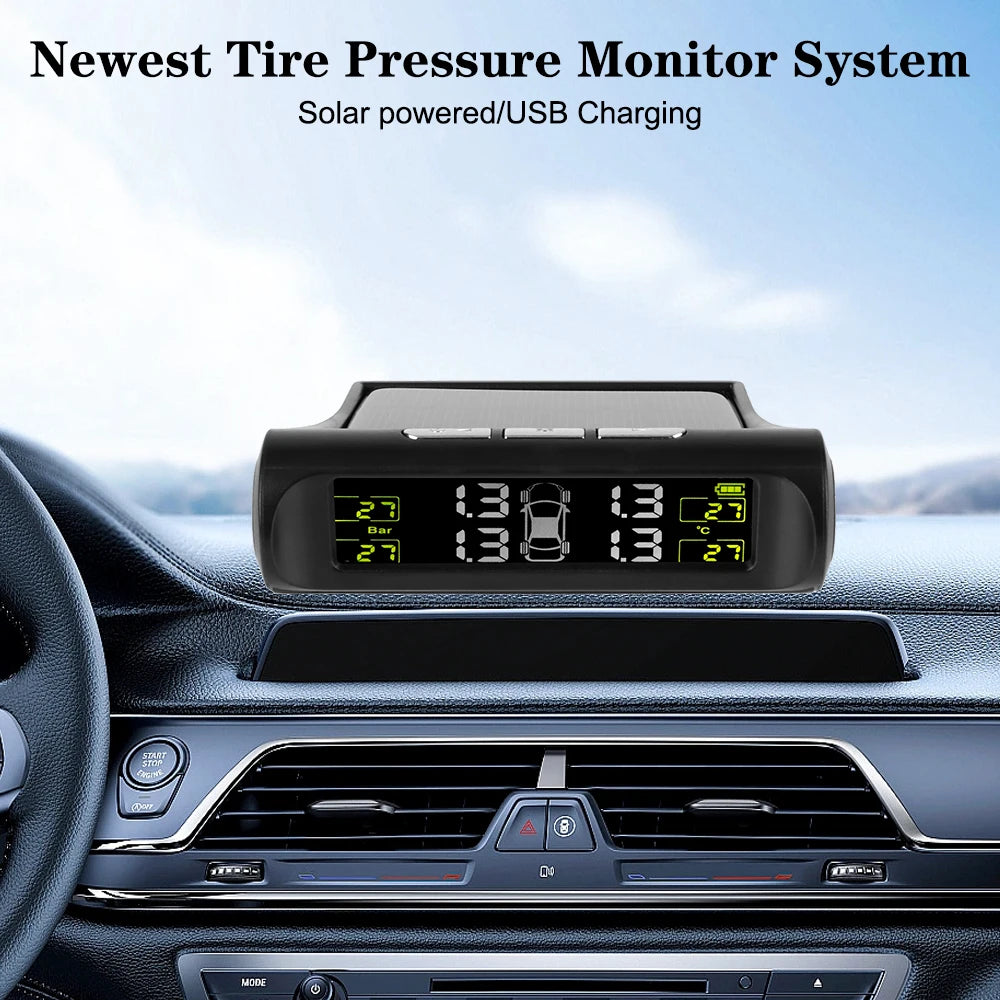

Mount the display unit on your dashboard using the included bracket.
Attach each sensor to the corresponding tyre valve. Sensors are pre-paired at the factory.
If replacing a sensor or display unit, simply re-pair via the menu.

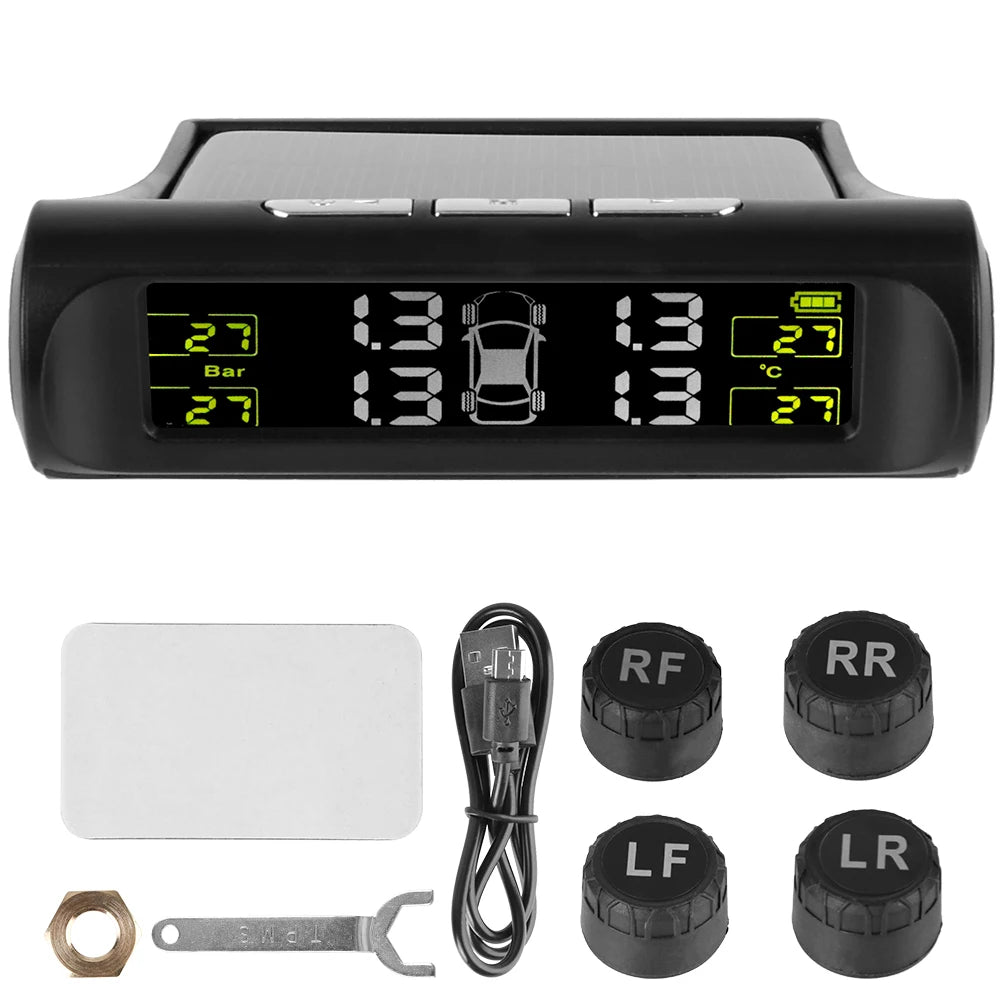

What's in the Box

1 × Car Tyre Pressure Monitoring System (full set)

Related Products You May Like

Safety Resource

Proper tyre inflation is a key factor in road safety and fuel efficiency. Learn more from the National Highway Traffic Safety Administration and the U.S. Consumer Product Safety Commission about vehicle safety standards.

Frequently Asked Questions

Q: Does this TPMS work with all car types?

A: Yes — this universal car tire pressure monitoring system is compatible with most standard passenger cars, SUVs, and light trucks. It uses universal 433.92 MHz wireless sensors that fit standard tyre valve stems.

Q: Do I need to replace the sensor batteries?

A: The display unit is powered by solar energy or USB, so you won't need to replace its battery. The individual tyre sensors are battery-powered; when a sensor battery runs low, the system will alert you with a visual and audio alarm so you can replace it in time.

Q: What is the difference between interior and external sensors?

A: External sensors screw onto the outside of the tyre valve stem — they are the easiest to install and remove. Interior sensors are fitted inside the tyre for better protection against tampering and weather. Both types work with this TPMS system.

Q: How do I know if the sensors are paired correctly?

A: The sensors come pre-paired to the display unit from the factory. Once installed, the display will show real-time pressure and temperature data for all four tyres. If you ever replace a sensor, simply re-pair it via the display menu as described in the manual.

Q: What happens if I park the car for a long time?

A: The display unit automatically enters sleep mode after the car has been stationary for more than 10 minutes. It will wake up again automatically when it detects vibration (i.e., when you start driving), conserving power and extending the life of the system.
